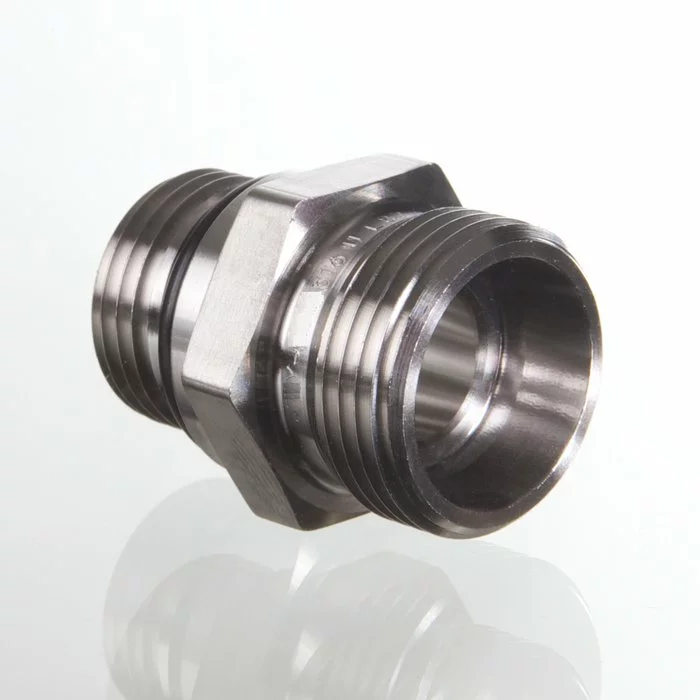

Ввертное резьбовое соединение - XVU VA
Код товара: 678823962
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Соединение 1
Наружная резьба UN/UNF
Форма уплотнения 1
Форма F
Форма уплотнения 2
Внутренний конус 24°
Модель
Ввертное резьбовое соединение
Соединение 2
Метрическая наружная резьба, цилиндрическая
Конструкция
прямые
_____
DIN 2353
ISO 8434-1
Комплект поставки
Штуцер (без накидной гайки и режущего кольца)
Материал
нержавеющая сталь
Изделие

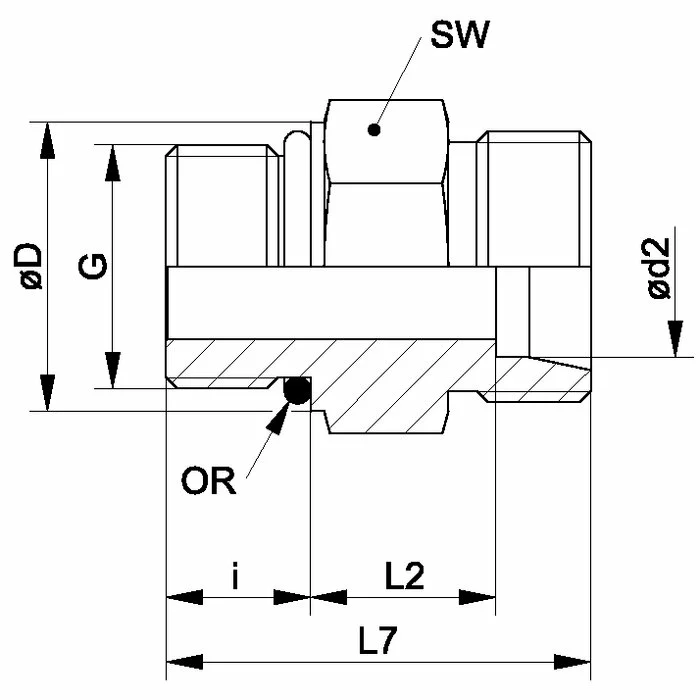

| Наименование | Серия | Рабочее давление, бар | Ø d2 mm |
G | Ø D mm |
i mm |
L2 mm |
L7 mm |
SW mm |
Кольцо круглого сечения |
|---|---|---|---|---|---|---|---|---|---|---|
| XVU NW 04 HL 9/16 VA | L | PN 315 | 6 | 9/16"-18 UNF | 17.6 | 10.0 | 11.0 | 28.0 | 19 | 11.89 x 1.98 |
| XVU NW 04 HL 7/16 VA | L | PN 315 | 6 | 7/16"-20 UNF | 14.4 | 9.1 | 9.9 | 26.0 | 17 | 9.17 x 1.83 |
| XVU NW 04 HL 1/2 VA | L | PN 315 | 6 | 1/2"-20 UNF | 16.8 | 9.1 | 9.9 | 26.0 | 17 | 10.52 x 1.83 |
| XVU NW 06 HL 7/16 VA | L | PN 315 | 8 | 7/16"-20 UNF | 14.4 | 9.1 | 12.9 | 29.0 | 17 | 9.17 x 1.83 |
| XVU NW 06 HL 1/2 VA | L | PN 315 | 8 | 1/2"-20 UNF | 16.8 | 9.1 | 12.9 | 29.0 | 17 | 10.52 x 1.83 |
| XVU NW 06 HL 9/16 VA | L | PN 315 | 8 | 9/16"-18 UNF | 17.6 | 10.0 | 13.0 | 30.0 | 19 | 11.89 x 1.98 |
| XVU NW 08 HL 7/16 VA | L | PN 315 | 10 | 7/16"-20 UNF | 14.4 | 9.1 | 13.9 | 30.0 | 17 | 9.17 x 1.83 |
| XVU NW 08 HL 1/2 VA | L | PN 315 | 10 | 1/2"-20 UNF | 17.0 | 9.2 | 11.0 | 26.0 | 17 | 10.52 x 1.83 |
| XVU NW 08 HL 9/16 VA | L | PN 315 | 10 | 9/16"-18 UNF | 17.6 | 10.0 | 14.0 | 31.0 | 19 | 11.89 x 1.98 |
| XVU NW 08 HL 3/4 VA | L | PN 315 | 10 | 3/4" -16 UNF | 22.3 | 11.1 | 14.9 | 33.0 | 24 | 16.36 x 2.20 |
| XVU NW 10 HL 9/16 VA | L | PN 315 | 12 | 9/16"-18 UNF | 17.6 | 10.0 | 12.0 | 29.0 | 19 | 11.89 x 1.98 |
| XVU NW 10 HL 3/4 VA | L | PN 315 | 12 | 3/4" -16 UNF | 22.3 | 11.1 | 12.9 | 31.0 | 24 | 16.36 x 2.20 |
| XVU NW 10 HL 7/8 VA | L | PN 315 | 12 | 7/8" -14 UNF | 25.5 | 12.7 | 14.3 | 34.0 | 27 | 19.18 x 2.46 |
| XVU NW 13 HL 9/16 VA | L | PN 315 | 15 | 9/16"-18 UNF | 17.6 | 10.0 | 14.0 | 31.0 | 24 | 11.89 x 1.98 |
| XVU NW 13 HL 3/4 VA | L | PN 315 | 15 | 3/4" -16 UNF | 22.3 | 11.1 | 13.9 | 32.0 | 24 | 16.36 x 2.20 |
| XVU NW 13 HL 7/8 VA | L | PN 315 | 15 | 7/8" -14 UNF | 25.5 | 12.7 | 15.8 | 35.5 | 27 | 19.18 x 2.46 |
| XVU NW 16 HL 3/4 VA | L | PN 315 | 18 | 3/4" -16 UNF | 22.3 | 11.1 | 14.4 | 33.0 | 27 | 16.36 x 2.20 |
| XVU NW 16 HL 7/8 VA | L | PN 315 | 18 | 7/8" -14 UNF | 25.5 | 12.7 | 14.5 | 34.7 | 27 | 19.18 x 2.46 |
| XVU NW 16 HL 1 1/16 VA | L | PN 315 | 18 | 1.1/16" -12 UN | 31.9 | 15.1 | 14.4 | 37.0 | 32 | 23.47 x 2.95 |
| XVU NW 20 HL 7/8 VA | L | PN 160 | 22 | 7/8" -14 UNF | 25.5 | 12.7 | 16.8 | 37.0 | 32 | 19.18 x 2.46 |
| XVU NW 20 HL 1 1/16 VA | L | PN 160 | 22 | 1.1/16" -12 UN | 31.9 | 15.1 | 16.4 | 39.0 | 32 | 23.47 x 2.95 |
| XVU NW 20 HL 1 5/16 VA | L | PN 160 | 22 | 1.5/16" -12 UN | 38.2 | 15.1 | 17.4 | 40.0 | 41 | 29.74 x 2.95 |
| XVU NW 25 HL 1 1/16 VA | L | PN 160 | 28 | 1.1/16" -12 UN | 31.9 | 15.1 | 17.4 | 40.0 | 41 | 23.47 x 2.95 |
| XVU NW 25 HL 1 5/16 VA | L | PN 160 | 28 | 1.5/16" -12 UN | 38.2 | 15.1 | 17.4 | 40.0 | 41 | 29.74 x 2.95 |
| XVU NW 32 HL 1 5/8 VA | L | PN 160 | 35 | 1.5/8" -12 UN | 47.7 | 15.1 | 17.4 | 43.0 | 50 | 37.47 x 3.00 |
| XVU NW 03 HS 7/16 VA | S | PN 630 | 6 | 7/16"-20 UNF | 14.4 | 9.1 | 14.9 | 31.0 | 17 | 9.17 x 1.83 |
| XVU NW 04 HS 7/16 VA | S | PN 630 | 8 | 7/16"-20 UNF | 14.4 | 9.1 | 14.9 | 31.0 | 17 | 9.17 x 1.83 |
| XVU NW 04 HS 1/2 VA | S | PN 630 | 8 | 1/2"-20 UNF | 16.8 | 9.1 | 14.9 | 31.0 | 19 | 10.52 x 1.83 |
| XVU NW 04 HS 9/16 VA | S | PN 630 | 8 | 9/16"-18 UNF | 17.6 | 10.0 | 15.0 | 32.0 | 19 | 11.89 x 1.98 |
| XVU NW 06 HS 9/16 VA | S | PN 630 | 10 | 9/16"-18 UNF | 17.6 | 10.0 | 14.5 | 32.0 | 19 | 10.89 x 1.98 |
| XVU NW 06 HS 3/4 VA | S | PN 630 | 10 | 3/4" -16 UNF | 22.3 | 11.1 | 14.4 | 33.0 | 24 | 16.36 x 2.20 |
| XVU NW 08 HS 9/16 VA | S | PN 630 | 12 | 9/16"-18 UNF | 17.6 | 10.0 | 14.5 | 32.0 | 22 | 11.89 x 1.98 |
| XVU NW 08 HS 3/4 VA | S | PN 630 | 12 | 3/4" -16 UNF | 22.3 | 11.1 | 17.4 | 36.0 | 24 | 16.36 x 2.20 |
| XVU NW 08 HS 7/8 VA | S | PN 630 | 12 | 7/8" -14 UNF | 25.5 | 12.7 | 17.8 | 38.0 | 27 | 19.18 x 2.46 |
| XVU NW 13 HS 3/4 VA | S | PN 400 | 16 | 3/4" -16 UNF | 22.3 | 11.1 | 15.4 | 35.0 | 24 | 16.36 x 2.20 |
| XVU NW 13 HS 7/8 VA | S | PN 400 | 16 | 7/8" -14 UNF | 25.5 | 12.7 | 18.8 | 40.0 | 27 | 19.18 x 2.46 |
| XVU NW 16 HS 3/4 VA | S | PN 400 | 20 | 3/4" -16 UNF | 22.3 | 11.1 | 20.4 | 42.0 | 32 | 16.36 x 2.20 |
| XVU NW 16 HS 7/8 VA | S | PN 400 | 20 | 7/8" -14 UNF | 25.5 | 12.7 | 20.8 | 44.0 | 32 | 19.18 x 2.46 |
| XVU NW 16 HS 1 1/16 VA | S | PN 400 | 20 | 1.1/16" -12 UN | 31.9 | 15.1 | 20.4 | 46.0 | 32 | 23.47 x 2.95 |
| XVU NW 20 HS 1 1/16 VA | S | PN 400 | 25 | 1.1/16" -12 UN | 31.9 | 15.1 | 22.9 | 50.0 | 41 | 23.47 x 2.95 |
| XVU NW 20 HS 1 5/16 VA | S | PN 400 | 25 | 1.5/16" -12 UN | 38.2 | 15.1 | 22.9 | 50.0 | 41 | 29.74 x 2.95 |
| XVU NW 25 HS 1 5/16 VA | S | PN 400 | 30 | 1.5/16" -12 UN | 38.2 | 15.1 | 23.4 | 52.0 | 46 | 29.74 x 2.95 |
| XVU NW 25 HS 1 5/8 VA | S | PN 400 | 30 | 1.5/8" -12 UN | 47.7 | 15.1 | 23.4 | 52.0 | 50 | 37.47 x 3.00 |
| XVU NW 32 HS 1 5/8 VA | S | PN 315 | 38 | 1.5/8" -12 UN | 47.7 | 15.1 | 25.9 | 57.0 | 55 | 37.47 x 3.00 |
| XVU NW 32 HS 17/8 VA | S | PN 315 | 38 | 1.7/8" -12 UN | 53.8 | 15.1 | 25.9 | 57.0 | 60 | 43.69 x 3.00 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
