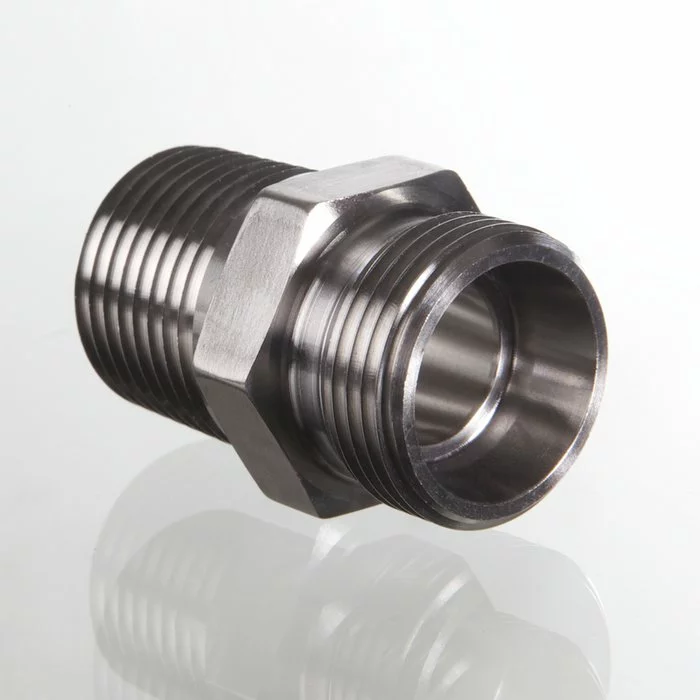

Ввертное резьбовое соединение - XVRK VA
Код товара: 678823577
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Соединение 1
Наружная резьба BSPT, коническая
Форма уплотнения 1
Резьбовое уплотнение
Форма уплотнения 2
Внутренний конус 24°
Модель
Ввертное резьбовое соединение
Соединение 2
Метрическая наружная резьба, цилиндрическая
Конструкция
прямые
_____
DIN 3901
Комплект поставки
Штуцер (без накидной гайки и режущего кольца)
Материал
нержавеющая сталь
Изделие

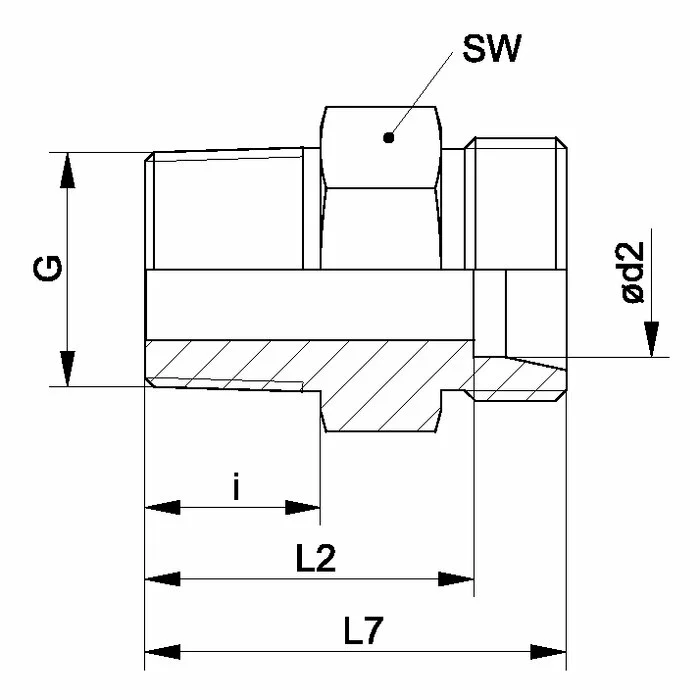

| Наименование | G | i mm |
L2 mm |
L7 mm |
SW mm |
Ø d2 mm |
Рабочее давление, бар | Серия |
|---|---|---|---|---|---|---|---|---|
| XVR 04 LL VA | R 1/8" K | 8.0 | 16.0 | 20.0 | 11 | 4 | PN 100 | LL |
| XVR 06 LL VA | R 1/8" K | 8.0 | 14.5 | 20.0 | 11 | 6 | PN 100 | LL |
| XVR 06 LL 1/4 VA | R 1/4" K | 12.0 | 14.5 | 20.0 | 12 | 6 | PN 100 | LL |
| XVR 08 LL 1/4 VA | R 1/4" K | 12.0 | 20.5 | 26.0 | 14 | 8 | PN 100 | LL |
| XVR 08 LL VA | R 1/8" K | 8.0 | 16.5 | 22.0 | 12 | 8 | PN 100 | LL |
| XVRK NW 04 HL VA | R 1/8" K | 10.5 | 17.5 | 24.5 | 12 | 6 | PN 315 | L |
| XVRK NW 04 HL 1/4 VA | R 1/4" K | 14.0 | 22.0 | 29.0 | 17 | 6 | PN 315 | L |
| XVRK NW 04 HL 3/8 VA | R 1/2" K | 14.5 | 23.5 | 30.5 | 19 | 6 | PN 315 | L |
| XVRK NW 04 HL 1/2 VA | R 1/2" K | 18.5 | 27.5 | 34.5 | 22 | 6 | PN 315 | L |
| XVRK NW 06 HL 1/8 VA | R 1/8" K | 10.5 | 18.5 | 25.5 | 14 | 8 | PN 315 | L |
| XVRK NW 06 HL VA | R 1/4" K | 14.0 | 22.0 | 29.0 | 17 | 8 | PN 315 | L |
| XVRK NW 06 HL 3/8 VA | R 3/8" K | 14.5 | 22.5 | 30.5 | 19 | 8 | PN 315 | L |
| XVRK NW 06 HL 1/2 VA | R 1/2" K | 18.5 | 27.5 | 34.5 | 22 | 8 | PN 315 | L |
| XVRK NW 08 HL VA | R 1/4" K | 14.0 | 23.0 | 30.0 | 17 | 10 | PN 315 | L |
| XVRK NW 08 HL 1/8 VA | R 1/8" K | 10.5 | 19.5 | 26.5 | 17 | 10 | PN 315 | L |
| XVRK NW 08 HL 3/8 VA | R 3/8" K | 14.5 | 24.5 | 31.5 | 19 | 10 | PN 315 | L |
| XVRK NW 08 HL 1/2 VA | R 1/2" K | 18.5 | 28.5 | 35.5 | 22 | 10 | PN 315 | L |
| XVRK NW 10 HL VA | R 3/8" K | 14.5 | 24.5 | 31.5 | 19 | 12 | PN 315 | L |
| XVRK NW 10 HL 1/8 VA | R 1/8" K | 10.5 | 20.5 | 27.5 | 19 | 12 | PN 315 | L |
| XVRK NW 10 HL 1/4 VA | R 1/4" K | 14.0 | 24.0 | 31.0 | 19 | 12 | PN 315 | L |
| XVRK NW 10 HL 1/2 VA | R 1/2" K | 18.5 | 28.5 | 35.5 | 24 | 12 | PN 315 | L |
| XVRK NW 10 HL 3/4 VA | R 3/4" K | 20.0 | 31.0 | 38.0 | 32 | 12 | PN 315 | L |
| XVRK NW 13 HL 1/4 VA | R 1/4" K | 14.0 | 25.0 | 32.0 | 24 | 15 | PN 315 | L |
| XVRK NW 13 HL VA | R 1/2" K | 18.5 | 29.5 | 36.5 | 24 | 15 | PN 315 | L |
| XVRK NW 13 HL 3/8 VA | R 3/8" K | 14.5 | 25.5 | 24.0 | 33 | 15 | PN 315 | L |
| XVRK NW 13 HL 3/4 VA | R 3/4" K | 20.0 | 32.0 | 39.0 | 32 | 15 | PN 315 | L |
| XVRK NW 16 HL VA | R 1/2" K | 18.5 | 30.0 | 37.5 | 27 | 18 | PN 315 | L |
| XVRK NW 16 HL 3/8 VA | R 3/8" K | 14.5 | 26.0 | 33.5 | 27 | 18 | PN 315 | L |
| XVRK NW 16 HL 3/4 VA | R 3/4" K | 20.0 | 31.5 | 39.0 | 32 | 18 | PN 160 | L |
| XVRK NW 20 HL 3/8 VA | R 3/8" K | 14.5 | 28.0 | 35.5 | 32 | 22 | PN 160 | L |
| XVRK NW 20 HL VA | R 3/4" K | 20.0 | 33.5 | 41.0 | 32 | 22 | PN 160 | L |
| XVRK NW 20 HL 1/2 VA | R 1/2" K | 18.5 | 32.0 | 39.5 | 32 | 22 | PN 160 | L |
| XVRK NW 20 HL 1 VA | R 1" K | 24.0 | 38.5 | 46.0 | 41 | 22 | PN 160 | L |
| XVRK NW 25 HL 1/2 VA | R 1/2" K | 18.5 | 33.0 | 40.5 | 41 | 28 | PN 160 | L |
| XVRK NW 25 HL 3/4 VA | R 3/4" K | 20.0 | 34.5 | 42.0 | 41 | 28 | PN 160 | L |
| XVRK NW 25 HL VA | R 1" K | 24.0 | 38.5 | 46.0 | 41 | 28 | PN 160 | L |
| XVRK NW 25 HL 1 1/4 VA | R 1.1/4" K | 26.0 | 43.5 | 51.0 | 46 | 28 | PN 160 | L |
| XVRK NW 32 HL VA | R 1.1/4" K | 26.0 | 42.5 | 53.0 | 46 | 35 | PN 160 | L |
| XVRK NW 32 HL 1 VA | R 1" K | 24.0 | 40.5 | 51.0 | 46 | 35 | PN 160 | L |
| XVRK NW 40 HL VA | R 1.1/2" K | 27.0 | 43.0 | 54.0 | 55 | 42 | PN 160 | L |
| XVRK NW 40 HL 1 1/4 VA | R 1.1/4" K | 26.0 | 42.0 | 53.0 | 55 | 42 | PN 160 | L |
| XVRK NW 03 HS VA | R 1/4" K | 14.0 | 27.0 | 34.0 | 17 | 6 | PN 400 | S |
| XVRK NW 04 HS VA | R 1/4" K | 14.0 | 27.0 | 34.0 | 17 | 8 | PN 400 | S |
| XVRK NW 04 HS 3/8 VA | R 3/8" K | 14.5 | 27.5 | 34.5 | 19 | 8 | PN 160 | S |
| XVRK NW 06 HS VA | R 3/8" K | 14.5 | 27.0 | 34.5 | 19 | 10 | PN 400 | S |
| XVRK NW 06 HS 1/4 VA | R 1/4" K | 14.0 | 26.5 | 34.0 | 19 | 10 | PN 400 | S |
| XVRK NW 08 HS VA | R 3/8" K | 14.5 | 29.0 | 36.5 | 22 | 12 | PN 400 | S |
| XVRK NW 08 HS 1/2 VA | R 1/2" K | 18.5 | 33.0 | 40.5 | 22 | 12 | PN 400 | S |
| XVRK NW 10 HS VA | R 1/2" K | 18.5 | 34.5 | 42.5 | 24 | 14 | PN 400 | S |
| XVRK NW 13 HS VA | R 1/2" K | 18.5 | 34.0 | 42.5 | 27 | 16 | PN 400 | S |
| XVRK NW 16 HS VA | R 3/4" K | 20.0 | 37.5 | 48.0 | 32 | 20 | PN 400 | S |
| XVRK NW 16 HS 1/2 VA | R 1/2" K | 18.5 | 36.0 | 46.5 | 32 | 20 | PN 400 | S |
| XVRK NW 20 HS VA | R 1" K | 24.0 | 43.0 | 55.0 | 41 | 25 | PN 400 | S |
| XVRK NW 25 HS VA | R 1.1/4" K | 26.0 | 45.5 | 59.0 | 46 | 30 | PN 250 | S |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
