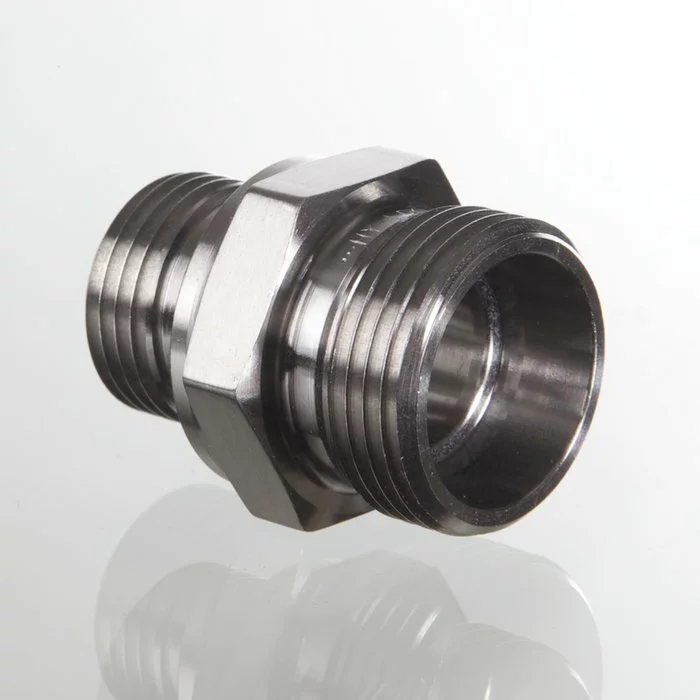

Ввертное резьбовое соединение - XVR ED VA
Код товара: 678879381
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Соединение 1
Наружная резьба BSP, цилиндрическая
Форма уплотнения 1
Форма E
Соединение 2
Метрическая наружная резьба, цилиндрическая
Форма уплотнения 2
Внутренний конус 24°
Модель
Ввертное резьбовое соединение
Конструкция
прямые
_____
DIN 2353
ISO 8434-1
Комплект поставки
Штуцер (без накидной гайки и режущего кольца)
Материал
нержавеющая сталь
Изделие

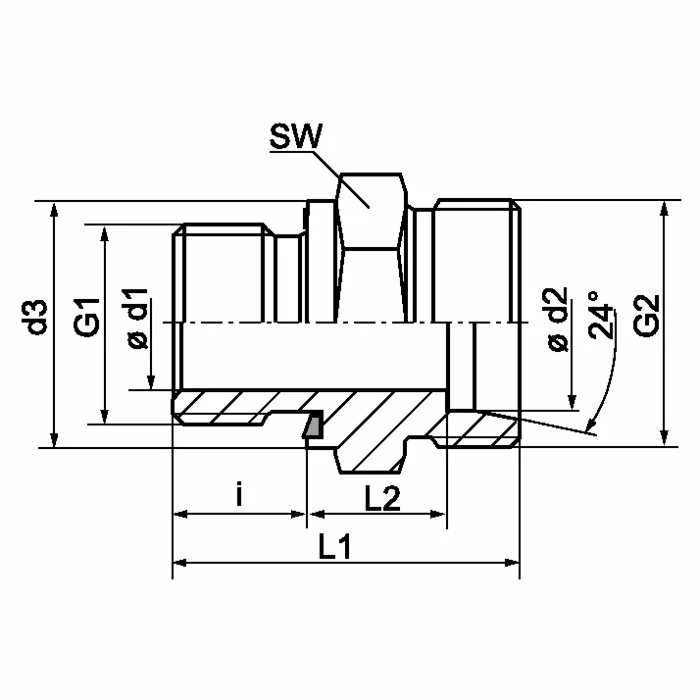

| Наименование | Серия | Рабочее давление, бар | Ø d2 mm |
G1 | G2 | Ø d3 mm |
i mm |
L1 mm |
L2 mm |
SW mm |
|---|---|---|---|---|---|---|---|---|---|---|
| XVR NW 04 HL ED VA | L | PN 315 | 6 | G 1/8" -28 | M 12 x 1,5 | 13.9 | 8 | 23.5 | 8.5 | 14 |
| XVR NW 04 HL 1/4 ED VA | L | PN 315 | 6 | G 1/4" -19 | M 12 x 1,5 | 18.9 | 12 | 29.0 | 10.0 | 19 |
| XVR NW 04 HL 3/8 ED VA | L | PN 315 | 6 | G 3/8" -19 | M 12 x 1,5 | 21.9 | 12 | 29.5 | 10.5 | 22 |
| XVR NW 04 HL 1/2 ED VA | L | PN 315 | 6 | G 1/2" -14 | M 12 x 1,5 | 26.9 | 14 | 32.0 | 11.0 | 27 |
| XVR NW 06 HL 1/8 ED VA | L | PN 315 | 8 | G 1/8" -28 | M 14 x 1.5 | 13.9 | 8 | 24.5 | 9.5 | 14 |
| XVR NW 06 HL ED VA | L | PN 315 | 8 | G 1/4" -19 | M 14 x 1.5 | 18.9 | 12 | 29.0 | 10.0 | 19 |
| XVR NW 06 HL 3/8 ED VA | L | PN 315 | 8 | G 3/8" -19 | M 14 x 1.5 | 21.9 | 12 | 30.5 | 11.5 | 22 |
| XVR NW 06 HL 1/2 ED VA | L | PN 315 | 8 | G 1/2" -14 | M 14 x 1.5 | 26.9 | 14 | 33.0 | 12.0 | 27 |
| XVR NW 08 HL 1/8 ED VA | L | PN 315 | 10 | G 1/8" -28 | M 16 x 1.5 | 13.9 | 8 | 25.5 | 10.5 | 17 |
| XVR NW 08 HL ED VA | L | PN 315 | 10 | G 1/4" -19 | M 16 x 1.5 | 18.9 | 12 | 30.0 | 11.0 | 19 |
| XVR NW 08 HL 3/8 ED VA | L | PN 315 | 10 | G 3/8" -19 | M 16 x 1.5 | 21.9 | 12 | 31.5 | 12.5 | 22 |
| XVR NW 08 HL 1/2 ED VA | L | PN 315 | 10 | G 1/2" -14 | M 16 x 1.5 | 26.9 | 14 | 34.0 | 13.0 | 27 |
| XVR NW 08 HL 3/4 ED VA | L | PN 315 | 10 | G 3/4" -14 | M 16 x 1.5 | 31.9 | 16 | 36.0 | 13.0 | 32 |
| XVR NW 10 HL 1/8 ED VA | L | PN 315 | 12 | G 1/8" -28 | M 18 x 1,5 | 13.9 | 8 | 26.5 | 11.5 | 19 |
| XVR NW 10 HL 1/4 ED VA | L | PN 315 | 12 | G 1/4" -19 | M 18 x 1,5 | 18.9 | 12 | 31.5 | 12.5 | 22 |
| XVR NW 10 HL ED VA | L | PN 315 | 12 | G 3/8" -19 | M 18 x 1,5 | 21.9 | 12 | 31.5 | 12.5 | 22 |
| XVR NW 10 HL 1/2 ED VA | L | PN 315 | 12 | G 1/2" -14 | M 18 x 1,5 | 26.9 | 14 | 34.0 | 13.0 | 27 |
| XVR NW 10 HL 3/4 ED VA | L | PN 160 | 12 | G 3/4" -14 | M 18 x 1,5 | 31.9 | 16 | 36.0 | 13.0 | 32 |
| XVR NW 13 HL 1/8 ED VA | L | PN 315 | 15 | G 1/8" -28 | M 22 x 1.5 | 13.9 | 8 | 28.5 | 13.5 | 24 |
| XVR NW 13 HL 1/4 ED VA | L | PN 315 | 15 | G 1/4" -19 | M 22 x 1.5 | 18.9 | 12 | 32.5 | 13.5 | 24 |
| XVR NW 13 HL 3/8 ED VA | L | PN 315 | 15 | G 3/8" -19 | M 22 x 1.5 | 21.9 | 12 | 33.0 | 14.0 | 27 |
| XVR NW 13 HL ED VA | L | PN 315 | 15 | G 1/2" -14 | M 22 x 1.5 | 26.9 | 14 | 35.0 | 14.0 | 27 |
| XVR NW 13 HL 3/4 ED VA | L | PN 160 | 15 | G 3/4" -14 | M 22 x 1.5 | 31.9 | 16 | 38.0 | 15.0 | 32 |
| XVR NW 16 HL 3/8 ED VA | L | PN 315 | 18 | G 3/8" -19 | M 26 x 1,5 | 21.9 | 12 | 33.5 | 14.0 | 27 |
| XVR NW 16 HL ED VA | L | PN 315 | 18 | G 1/2" -14 | M 26 x 1,5 | 26.9 | 14 | 36.0 | 14.5 | 27 |
| XVR NW 16 HL 3/4 ED VA | L | PN 160 | 18 | G 3/4" -14 | M 26 x 1,5 | 31.9 | 16 | 38.0 | 14.5 | 32 |
| XVR NW 16 HL 1 ED VA | L | PN 315 | 18 | G 1" -11 | M 26 x 1,5 | 39.9 | 18 | 43.0 | 17.5 | 41 |
| XVR NW 20 HL 3/8 ED VA | L | PN 160 | 22 | G 3/8" -19 | M 30 x 2 | 21.9 | 12 | 36.0 | 16.5 | 32 |
| XVR NW 20 HL 1/2 ED VA | L | PN 160 | 22 | G 1/2" -14 | M 30 x 2 | 26.9 | 14 | 38.0 | 16.5 | 32 |
| XVR NW 20 HL ED VA | L | PN 160 | 22 | G 3/4" -14 | M 30 x 2 | 31.9 | 16 | 40.0 | 16.5 | 32 |
| XVR NW 20 HL 1 ED VA | L | PN 160 | 22 | G 1" -11 | M 30 x 2 | 39.9 | 18 | 42.0 | 16.5 | 41 |
| XVR NW 25 HL 1/2 ED VA | L | PN 160 | 28 | G 1/2" -14 | M 36 x 2 | 26.9 | 14 | 39.0 | 17.5 | 41 |
| XVR NW 25 HL 3/4 ED VA | L | PN 160 | 28 | G 3/4" -14 | M 36 x 2 | 31.9 | 16 | 41.0 | 17.5 | 41 |
| XVR NW 25 HL ED VA | L | PN 160 | 28 | G 1" -11 | M 36 x 2 | 39.9 | 18 | 43.0 | 17.5 | 41 |
| XVR NW 25 HL 1 1/4 ED VA | L | - | 28 | G 1.1/4" -11 | M 36 x 2 | - | - | - | - | - |
| XVR NW 32 HL 1/2 ED VA | L | PN 160 | 35 | G 1/2" -14 | M 45 x 2 | 26.9 | 14 | 42.0 | 17.5 | 46 |
| XVR NW 32 HL 3/4 ED VA | L | PN 160 | 35 | G 3/4" -14 | M 45 x 2 | 31.9 | 16 | 48.5 | 22.0 | 46 |
| XVR NW 32 HL 1 ED VA | L | PN 160 | 35 | G 1" -11 | M 45 x 2 | 39.9 | 18 | 46.0 | 17.5 | 46 |
| XVR NW 32 HL ED VA | L | PN 160 | 35 | G 1.1/4" -11 | M 45 x 2 | 49.9 | 20 | 48.0 | 17.5 | 50 |
| XVR NW 40 HL 1 ED VA | L | PN 160 | 42 | G 1" -11 | M 52 x 2 | 39.9 | 18 | 48.0 | 19.0 | 55 |
| XVR NW 40 HL ED VA | L | PN 160 | 42 | G 1.1/2" -11 | M 52 x 2 | 54.9 | 22 | 52.0 | 19.0 | 55 |
| XVR NW 03 HS 1/8 ED VA | S | PN 630 | 6 | G 1/8" -28 | M 14 x 1.5 | 13.9 | 8 | 28.0 | 13.0 | 17 |
| XVR NW 03 HS ED VA | S | PN 630 | 6 | G 1/4" -19 | M 14 x 1.5 | 18.9 | 12 | 32.0 | 13.0 | 19 |
| XVR NW 03 HS 3/8 ED VA | S | PN 630 | 6 | G 3/8" -19 | M 14 x 1.5 | 21.9 | 12 | 34.5 | 15.5 | 22 |
| XVR NW 03 HS 1/2 ED VA | S | PN 630 | 6 | G 1/2" -14 | M 14 x 1.5 | 26.9 | 14 | 35.0 | 14.0 | 27 |
| XVR NW 03 HS 3/4 ED VA | S | PN 630 | 6 | G 3/4" -14 | M 14 x 1.5 | 31.9 | 16 | 38.0 | 15.0 | 32 |
| XVR NW 04 HS 1/8 ED VA | S | PN 630 | 8 | G 1/8" -28 | M 16 x 1.5 | 13.9 | 8 | 28.0 | 13.0 | 17 |
| XVR NW 04 HS ED VA | S | PN 630 | 8 | G 1/4" -19 | M 16 x 1.5 | 18.9 | 12 | 34.0 | 15.0 | 19 |
| XVR NW 04 HS 3/8 ED VA | S | PN 630 | 8 | G 3/8" -19 | M 16 x 1.5 | 21.9 | 12 | 34.5 | 15.5 | 22 |
| XVR NW 04 HS 1/2 ED VA | S | PN 630 | 8 | G 1/2" -14 | M 16 x 1.5 | 26.9 | 14 | 38.5 | 17.5 | 27 |
| XVR NW 06 HS 1/8 ED VA | S | PN 630 | 10 | G 1/8" -28 | M 18 x 1,5 | 13.9 | 8 | 29.5 | 14.0 | 22 |
| XVR NW 06 HS 1/4 ED VA | S | PN 630 | 10 | G 1/4" -19 | M 18 x 1,5 | 18.9 | 12 | 34.0 | 14.5 | 22 |
| XVR NW 06 HS ED VA | S | PN 630 | 10 | G 3/8" -19 | M 18 x 1,5 | 21.9 | 12 | 34.5 | 15.0 | 22 |
| XVR NW 06 HS 1/2 ED VA | S | PN 630 | 10 | G 1/2" -14 | M 18 x 1,5 | 26.9 | 14 | 39.0 | 17.5 | 27 |
| XVR NW 06 HS 3/4 ED VA | S | PN 630 | 10 | G 3/4" -14 | M 18 x 1,5 | 31.9 | 16 | 36.0 | 14.5 | 32 |
| XVR NW 08 HS 1/4 ED VA | S | PN 630 | 12 | G 1/4" -19 | M 20 x 1.5 | 18.9 | 12 | 36.0 | 16.5 | 22 |
| XVR NW 08 HS ED VA | S | PN 630 | 12 | G 3/8" -19 | M 20 x 1.5 | 21.9 | 12 | 36.5 | 17.0 | 22 |
| XVR NW 08 HS 1/2 ED VA | S | PN 630 | 12 | G 1/2" -14 | M 20 x 1.5 | 26.9 | 14 | 39.0 | 17.5 | 27 |
| XVR NW 08 HS 3/4 ED VA | S | PN 630 | 12 | G 3/4" -14 | M 20 x 1.5 | 31.9 | 16 | 36.0 | 20.5 | 32 |
| XVR NW 10 HS 1/4 ED VA | S | PN 630 | 14 | G 1/4" -19 | M 22 x 1.5 | 18.9 | 12 | 34.5 | 14.5 | 24 |
| XVR NW 10 HS 3/8 ED VA | S | PN 630 | 14 | G 3/8" -19 | M 22 x 1.5 | 21.9 | 12 | 38.5 | 18.5 | 27 |
| XVR NW 10 HS ED VA | S | PN 630 | 14 | G 1/2" -14 | M 22 x 1.5 | 26.9 | 14 | 41.0 | 19.0 | 27 |
| XVR NW 10 HS 3/4 ED VA | S | PN 630 | 14 | G 3/4" -14 | M 22 x 1.5 | 31.9 | 16 | 45.0 | 21.0 | 32 |
| XVR NW 10 HS 1 ED VA | S | PN 630 | 14 | G 1" -11 | M 22 x 1.5 | 39.9 | 18 | 45.5 | 19.5 | 41 |
| XVR NW 13 HS 1/4 ED VA | S | PN 400 | 16 | G 1/4" -19 | M 24 x 1.5 | 18.9 | 12 | 38.0 | 17.5 | 27 |
| XVR NW 13 HS 3/8 ED VA | S | PN 400 | 16 | G 3/8" -19 | M 24 x 1.5 | 21.9 | 12 | 38.5 | 18.0 | 27 |
| XVR NW 13 HS ED VA | S | PN 400 | 16 | G 1/2" -14 | M 24 x 1.5 | 26.9 | 14 | 41.0 | 18.5 | 27 |
| XVR NW 13 HS 3/4 ED VA | S | PN 400 | 16 | G 3/4" -14 | M 24 x 1.5 | 31.9 | 16 | 45.0 | 20.5 | 32 |
| XVR NW 13 HS 1 ED VA | S | PN 400 | 16 | G 1" -11 | M 24 x 1.5 | 39.5 | 18 | 45.5 | 19.0 | 41 |
| XVR NW 16 HS 3/8 ED VA | S | PN 400 | 20 | G 3/8" -19 | M 30 x 2 | 21.9 | 12 | 43.0 | 20.5 | 32 |
| XVR NW 16 HS 1/2 ED VA | S | PN 400 | 20 | G 1/2" -14 | M 30 x 2 | 26.9 | 14 | 45.0 | 20.5 | 32 |
| XVR NW 16 HS ED VA | S | PN 400 | 20 | G 3/4" -14 | M 30 x 2 | 31.9 | 16 | 47.0 | 20.5 | 32 |
| XVR NW 16 HS 1 ED VA | S | PN 400 | 20 | G 1" -11 | M 30 x 2 | 39.9 | 18 | 49.0 | 20.5 | 41 |
| XVR NW 16 HS 1 1/2 ED VA | S | - | 20 | G 1.1/2" -11 | M 30 x 2 | - | - | - | - | - |
| XVR NW 20 HS 1/2 ED VA | S | PN 400 | 25 | G 1/2" -14 | M 36 x 2 | 26.9 | 14 | 49.0 | 23.0 | 41 |
| XVR NW 20 HS 3/4 ED VA | S | PN 400 | 25 | G 3/4" -14 | M 36 x 2 | 31.9 | 16 | 51.0 | 23.0 | 41 |
| XVR NW 20 HS ED VA | S | PN 400 | 25 | G 1" -11 | M 36 x 2 | 39.9 | 18 | 53.0 | 23.0 | 41 |
| XVR NW 20 HS 1 1/2 ED VA | - | - | 25 | G 1.1/2" -11 | M 36 x 2 | - | - | - | - | - |
| XVR NW 25 HS 3/4 ED VA | S | PN 400 | 30 | G 3/4" -14 | M 42 x 2 | 31.9 | 16 | 52.5 | 23.0 | 46 |
| XVR NW 25 HS 1 ED VA | S | PN 400 | 30 | G 1" -11 | M 42 x 2 | 39.9 | 18 | 55.0 | 23.5 | 50 |
| XVR NW 25 HS ED VA | S | PN 400 | 30 | G 1.1/4" -11 | M 42 x 2 | 49.9 | 20 | 57.0 | 23.5 | 50 |
| XVR NW 25 HS 1 1/2 ED VA | S | - | 30 | G 1.1/2" -11 | M 42 x 2 | - | - | - | - | - |
| XVR NW 32 HS 1 ED VA | S | PN 315 | 38 | G 1" -11 | M 52 x 2 | 39.9 | 18 | 60.0 | 26.0 | 55 |
| XVR NW 32 HS ED VA | S | PN 315 | 38 | G 1.1/2" -11 | M 52 x 2 | 54.9 | 22 | 64.0 | 26.0 | 55 |
