Выходной сигнал
Analogue: 1 to 5 V
Гистерезис
Adjustable: 3 to 25% of set value
Коммутационная способность
125 mA
Корпус
Polycarbonate
Область температур
0 - 50 °C
Подключение измеряемой среды
G 1/8 male and M 5 female
Подключение к электросети
Male connector M8, four pin
Потребление тока
30 mA
Рабочие среды
Non-aggressive gases. dry, oil-free air
Функция переключения
PNP

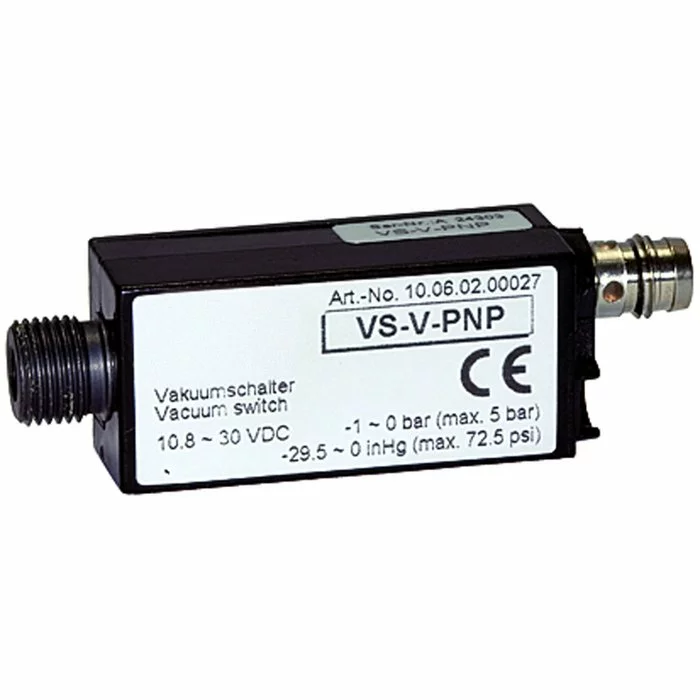

Universal electronic vacuum switch for safety monitoring, optimisation of cycle times and regulation circuits. Its small size and low weight permit installation directly on the suction pad. <br>Switching point and hysteresis adjustable with a screw. Integrated LED for indication of the switching state.

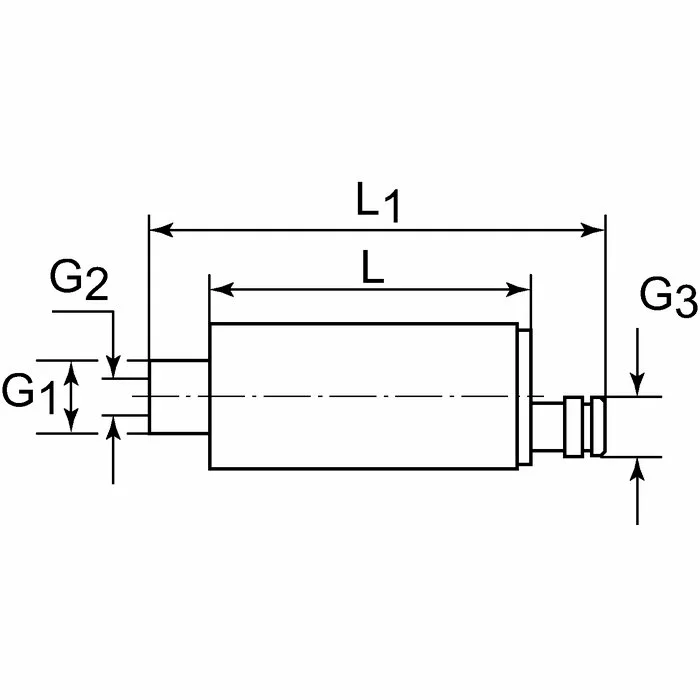

| Наименование | G1 | G2 | G3 | L mm |
L1 mm |
Диапазон измерений | Коммутационная способность mA |
Напряжение | Потребление тока mA |
|---|---|---|---|---|---|---|---|---|---|
| K- 07 45 01 58 | G 1/8” | M 5 | M 8 x 1 | 44.0 | 62.0 | -1 bis 0 bar | 125 | 10.8 - 30 V DC | 30 |
