Уплотнение штока, TS-L - TS L
Код товара: 678851087
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Модель
U-образное уплотнение для штока
Рабочее давление
до 400 бар
Скорость скольжения макс.
0.5 m/s
Температура min.
-30 °C
Температура макс.
80 °C
Монтаж
в открытых пазах В
в закрытых пазах в открытых монтажных пространствах
Рабочие среды
Минеральное масло
Материал
Polyurethane (PUR)
Применение
Гидравлика
Описание
высокая стойкость к истиранию
Очень хорошая герметичность при низком давлении.
быстрое изменение нагрузки
Изделие

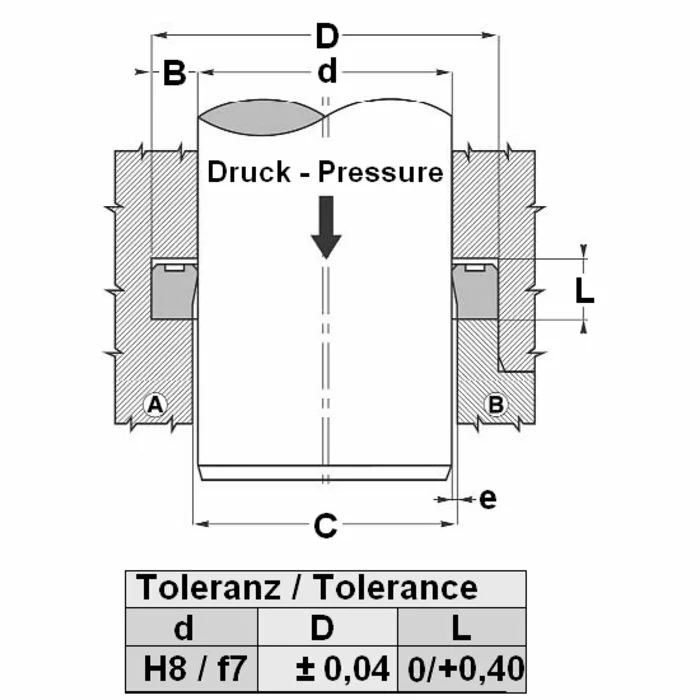

| Наименование | d mm |
D mm |
L mm |
Скорость скольжения макс. m/s |
|---|---|---|---|---|
| TS 06 14-L | 6.0 | 14.0 | 6.3 | - |
| TS 08 16-L | 8.0 | 16.0 | 6.3 | - |
| TS 10 16-L | 10.0 | 16.0 | 5.4 | - |
| TS 10 18-L | 10.0 | 18.0 | 6.3 | - |
| TS 12 19-L | 12.0 | 19.0 | 6.3 | - |
| TS 12 20-L | 12.0 | 20.0 | 6.3 | - |
| TS 12 23-L | 12.0 | 23.0 | 7.5 | - |
| TS 14 20-L | 14.0 | 20.0 | 5.3 | - |
| TS 14 22-L | 14.0 | 22.0 | 6.3 | - |
| TS 16 24-L | 16.0 | 24.0 | 6.3 | - |
| TS 18 24-L | 18.0 | 24.0 | 5.2 | - |
| TS 18 25-L | 18.0 | 25.0 | 5.7 | - |
| TS 18 26-L | 18.0 | 26.0 | 6.3 | - |
| TS 18 26-L1 | 18.0 | 26.0 | 9.0 | - |
| TS 18 28-L | 18.0 | 28.0 | 6.3 | - |
| TS 18 28-L1 | 18.0 | 28.0 | 8.0 | - |
| TS 20 26-L | 20.0 | 26.0 | 6.0 | - |
| TS 20 28-L | 20.0 | 28.0 | 6.3 | - |
| TS 20 28-L1 | 20.0 | 28.0 | 8.0 | - |
| TS 20 30-L3 | 20.0 | 30.0 | 5.0 | - |
| TS 20 30-L | 20.0 | 30.0 | 8.0 | - |
| TS 22 30-L1 | 22.0 | 30.0 | 6.3 | - |
| TS 22 32-L | 22.0 | 32.0 | 8.0 | - |
| TS 22 32-L1 | 22.0 | 32.0 | 9.0 | - |
| TS 24 34-L | 24.0 | 34.0 | 6.5 | - |
| TS 25 33-L | 25.0 | 33.0 | 6.3 | - |
| TS 25 33-L2 | 25.0 | 33.0 | 7.5 | - |
| TS 25 33-L3 | 25.0 | 33.0 | 8.0 | - |
| TS 25 33-L1 | 25.0 | 33.0 | 9.0 | - |
| TS 25 35-L3 | 25.0 | 35.0 | 6.3 | - |
| TS 25 35-L1 | 25.0 | 35.0 | 8.0 | - |
| TS 25 35-L4 | 25.0 | 35.0 | 9.0 | - |
| TS 28 34-L | 28.0 | 34.2 | 6.0 | - |
| TS 28 36-L1 | 28.0 | 28.0 | 6.3 | - |
| TS 28 36-L | 28.0 | 36.0 | 9.0 | - |
| TS 28 38-L | 28.0 | 38.0 | 6.3 | - |
| TS 28 38-L1 | 28.0 | 38.0 | 8.0 | - |
| TS 30 38-L1 | 30.0 | 38.0 | 6.3 | - |
| TS 30 38-L2 | 30.0 | 38.0 | 8.0 | - |
| TS 30 40-L | 30.0 | 40.0 | 7.5 | - |
| TS 30 40-L2 | 30.0 | 40.0 | 11.0 | - |
| TS 32 40-L1 | 32.0 | 40.0 | 6.3 | - |
| TS 32 40-L | 32.0 | 40.0 | 9.0 | - |
| TS 32 42-L | 32.0 | 42.0 | 8.0 | - |
| TS 32 42-L2 | 32.0 | 42.0 | 11.0 | - |
| TS 35 43-L2 | 35.0 | 43.0 | 6.3 | - |
| TS 35 43-L | 35.0 | 43.0 | 7.0 | - |
| TS 35 43-L1 | 35.0 | 43.0 | 9.0 | - |
| TS 35 45-L | 35.0 | 45.0 | 8.0 | - |
| TS 35 45-L1 | 35.0 | 45.0 | 11.0 | - |
| TS 35 50-L | 35.0 | 50.0 | 11.0 | - |
| TS 36 44-L1 | 36.0 | 44.0 | 6.3 | - |
| TS 36 46-L | 36.0 | 46.0 | 8.0 | - |
| TS 40 48-L1 | 40.0 | 48.0 | 6.3 | - |
| TS 40 48-L2 | 40.0 | 48.0 | 7.0 | - |
| TS 40 48-L | 40.0 | 48.0 | 9.0 | - |
| TS 40 50-L2 | 40.0 | 50.0 | 8.0 | - |
| TS 40 55-L1 | 40.0 | 55.0 | 11.0 | - |
| TS 40 60-L | 40.0 | 60.0 | 11.0 | 0.5 |
| TS 42 52-L | 42.0 | 52.0 | 9.0 | - |
| TS 45 53-L3 | 45.0 | 53.0 | 6.3 | - |
| TS 45 53-L | 45.0 | 53.0 | 9.0 | - |
| TS 45 55-L2 | 45.0 | 55.0 | 6.3 | - |
| TS 45 55-L | 45.0 | 55.0 | 8.0 | - |
| TS 45 55-L1 | 45.0 | 55.0 | 11.0 | - |
| TS 45 57-L | 45.0 | 57.0 | 10.5 | - |
| TS 49 65-L | 49.5 | 65.3 | 11.0 | 0.5 |
| TS 50 58-L | 50.0 | 58.0 | 9.0 | - |
| TS 50 60-L | 50.0 | 60.0 | 8.0 | - |
| TS 50 60-L2 | 50.0 | 60.0 | 10.0 | - |
| TS 50 60-L1 | 50.0 | 60.0 | 11.0 | - |
| TS 50 62-L1 | 50.0 | 62.0 | 9.0 | - |
| TS 50 65-L | 50.0 | 65.0 | 11.0 | - |
| TS 50 65-L1 | 50.0 | 65.0 | 12.5 | - |
| TS 55 63-L | 55.0 | 63.0 | 9.0 | - |
| TS 55 65-L | 55.0 | 65.0 | 8.0 | - |
| TS 55 65-L1 | 55.0 | 65.0 | 11.0 | - |
| TS 55 65-L2 | 55.0 | 65.0 | 13.0 | - |
| TS 56 66-L1 | 56.0 | 66.0 | 7.5 | - |
| TS 56 71-L | 56.0 | 71.0 | 12.5 | - |
| TS 60 68-L | 60.0 | 68.0 | 9.0 | - |
| TS 60 70-L | 60.0 | 70.0 | 8.0 | - |
| TS 60 70-L1 | 60.0 | 70.0 | 11.0 | - |
| TS 60 70-L2 | 60.0 | 70.0 | 12.5 | - |
| TS 60 70-L3 | 60.0 | 70.0 | 13.0 | - |
| TS 60 71-L | 60.0 | 71.0 | 9.0 | - |
| TS 60 72-L | 60.0 | 72.0 | 10.0 | - |
| TS 60 75-L1 | 60.0 | 75.0 | 11.0 | - |
| TS 61 69-L1 | 61.0 | 69.7 | 9.0 | - |
| TS 63 73-L | 63.0 | 73.0 | 11.0 | - |
| TS 63 75-L2 | 63.0 | 75.0 | 9.5 | - |
| TS 63 75-L1 | 63.0 | 75.0 | 11.0 | - |
| TS 65 73-L | 65.0 | 73.0 | 9.0 | - |
| TS 65 75-L | 65.0 | 75.0 | 13.0 | - |
| TS 70 78-L | 70.0 | 78.0 | 9.0 | - |
| TS 70 80-L | 70.0 | 80.0 | 8.0 | - |
| TS 70 80-L1 | 70.0 | 80.0 | 11.0 | - |
| TS 70 80-L2 | 70.0 | 80.0 | 13.0 | - |
| TS 70 82-L | 70.0 | 82.0 | 10.0 | - |
| TS 70 85-L | 70.0 | 85.0 | 12.5 | - |
| TS 75 83-L1 | 75.0 | 83.0 | 9.0 | - |
| TS 75 85-L | 75.0 | 85.0 | 8.0 | - |
| TS 75 85-L1 | 75.0 | 85.0 | 13.0 | - |
| TS 78 86-L1 | 78.0 | 86.0 | 9.0 | - |
| TS 79 87-L | 79.0 | 87.7 | 9.0 | - |
| TS 80 88-L2 | 80.0 | 88.0 | 9.0 | - |
| TS 80 88-L1 | 80.0 | 88.0 | 12.5 | - |
| TS 80 90-L | 80.0 | 90.0 | 8.0 | - |
| TS 80 90-L1 | 80.0 | 90.0 | 13.0 | - |
| TS 80 92-L | 80.0 | 92.0 | 9.6 | - |
| TS 80 95-L | 80.0 | 95.0 | 12.5 | - |
| TS 80 96-L | 80.0 | 96.0 | 10.5 | - |
| TS 85 93-L | 85.0 | 93.0 | 9.0 | - |
| TS 85 95-L | 85.0 | 95.0 | 8.0 | - |
| TS 85 95-L1 | 85.0 | 95.0 | 13.0 | - |
| TS 88 101-L | 88.9 | 101.6 | 10.5 | - |
| TS 90 102-L | 90.0 | 102.0 | 10.0 | - |
| TS 90 105-L | 90.0 | 105.0 | 12.5 | - |
| TS 95 103-L | 95.0 | 103.0 | 9.0 | - |
| TS 98 106-L | 98.0 | 106.7 | 9.0 | - |
| TS 100 108-L | 100.0 | 108.0 | 12.5 | - |
| TS 100 115-L | 100.0 | 115.0 | 13.0 | - |
| TS 105 113-L | 105.0 | 113.0 | 9.0 | - |
| TS 108 116-L | 108.0 | 116.0 | 9.0 | - |
| TS 110 125-L | 110.0 | 125.0 | 12.0 | - |
| TS 115 123-L | 115.0 | 123.0 | 9.0 | - |
| TS 116 124-L | 116.0 | 124.7 | 9.0 | - |
| TS 120 128-L1 | 120.0 | 128.0 | 12.5 | - |
| TS 125 133-L1 | 125.0 | 133.0 | 7.5 | - |
| TS 130 145-L | 130.0 | 145.0 | 16.0 | - |
| TS 135 143-L1 | 135.0 | 143.0 | 9.0 | - |
| TS 135 143-L | 135.0 | 143.7 | 9.0 | - |
| TS 135 150-L | 135.0 | 150.0 | 12.5 | - |
| TS 140 150-L | 140.0 | 150.0 | 12.5 | - |
| TS 154 162-L | 154.0 | 162.7 | 9.0 | - |
| TS 170 180-L | 170.0 | 180.0 | 11.0 | - |
