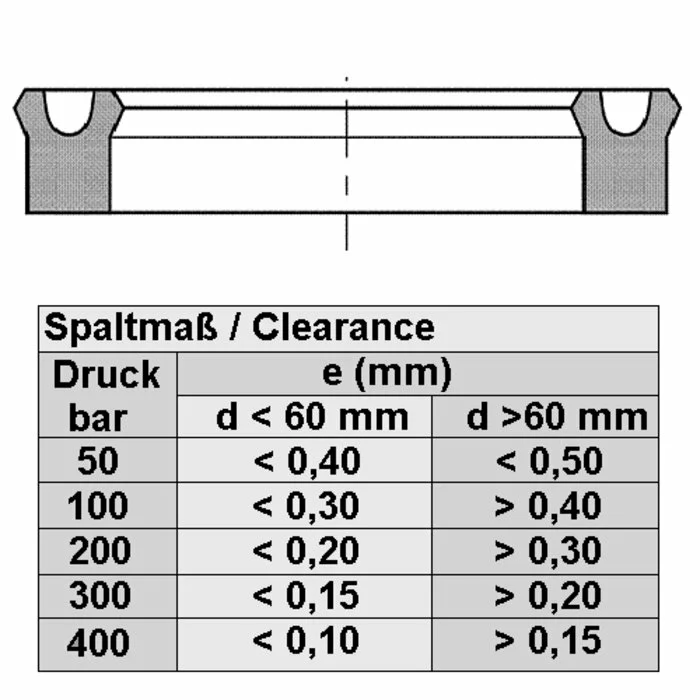

U-образное уплотнение, MU - MU

Код товара: 678850849
Наличие:
Нет в наличии
Цена:
1,00 грн./шт

Свойства

Модель

U-образное уплотнение

Рабочее давление

до 400 бар

Скорость скольжения макс.

0.5 m/s

Температура min.

-30 °C

Температура макс.

80 °C

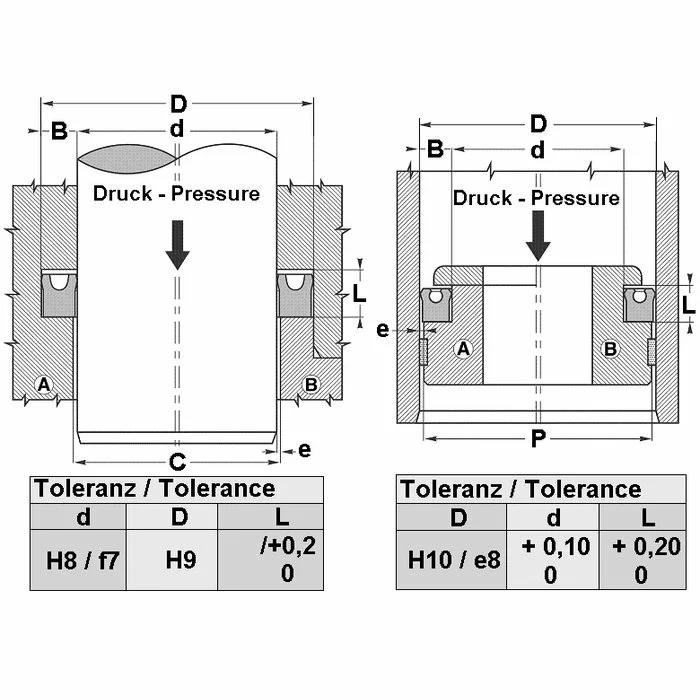

Монтаж

в закрытых пазах А
в открытых пазах В
на моноблочных В или многоблочных А поршнях

Рабочие среды

Минеральное масло

Материал

Polyurethane (PUR)

Применение

Гидравлика


Описание

для стержней и поршней
высокая стойкость к истиранию
для новых конструкций TS, TS-L, RS-L и EU Profile
использовать (уплотнения штока).


Изделие
Наименование d nom.
mm
D
mm
L
mm
Скорость скольжения макс.
m/s
MU 09 03 3.00 9.0 5.0 -
MU 10 04 4.00 10.0 4.5 -
MU 10 04-1 4.00 10.0 5.0 -
MU 11 04 4.50 11.0 5.5 -
MU 12 04 4.00 12.0 4.5 -
MU 12 05-1 5.00 12.0 5.5 -
MU 12 05-2 5.00 12.0 6.5 -
MU 12 05 5.00 12.0 7.0 -
MU 12 06 6.00 12.0 4.5 -
MU 12 06-4 6.00 12.0 6.0 -
MU 12 06-5 6.00 12.0 6.5 -
MU 12 06-2 6.00 12.0 9.0 -
MU 12 08 8.00 12.0 3.5 -
MU 13 06 6.00 12.7 6.5 -
MU 13 05 5.00 13.0 4.5 -
MU 14 07 7.00 14.0 4.2 -
MU 14 08 8.00 14.0 7.0 -
MU 15 06 6.00 15.0 9.0 -
MU 15 07-1 7.00 15.0 8.0 -
MU 15 08 8.00 15.0 6.3 -
MU 15 08-2 8.00 15.0 9.0 -
MU 15 09 9.00 15.0 9.0 -
MU 16 06 6.00 16.0 5.5 -
MU 16 08 8.00 16.0 4.5 -
MU 16 08-2 8.00 16.0 6.3 -
MU 16 10 10.00 16.0 6.5 -
MU 18 08 8.00 18.0 5.5 -
MU 18 08-1 8.00 18.0 8.0 -
MU 18 08-2 8.00 18.0 11.0 -
MU 18 10-3 10.00 18.0 4.5 -
MU 18 10-1 10.00 18.0 6.0 -
MU 18 10 10.00 18.0 7.0 -
MU 18 10-4 10.00 18.0 9.0 -
MU 18 12 12.00 18.0 5.5 -
MU 18 12-1 12.00 18.0 7.0 -
MU 19 09-1 9.00 19.0 7.0 -
MU 20 10 10.00 20.0 5.5 -
MU 20 10-1 10.00 20.0 9.0 -
MU 20 12-1 12.00 20.0 4.5 -
MU 20 12-2 12.00 20.0 8.0 -
MU 20 12 12.00 20.0 9.0 -
MU 20 14 14.00 20.0 5.3 -
MU 21 11 11.00 20.5 7.0 -
MU 22 08 8.00 22.0 9.0 -
MU 22 10 10.00 22.0 7.0 -
MU 22 10-1 10.00 22.0 9.0 -
MU 22 12 12.00 22.0 5.5 -
MU 22 12-4 12.00 22.0 8.0 -
MU 22 12-1 12.00 22.0 9.0 -
MU 22 14-1 14.00 22.0 7.0 -
MU 22 14-2 14.00 22.0 9.0 -
MU 22 16 16.00 22.0 4.5 -
MU 22 16-2 16.00 22.0 5.5 -
MU 24 12-1 12.00 24.0 9.0 -
MU 24 14 14.00 24.0 9.0 -
MU 24 16-1 16.00 24.0 4.5 -
MU 24 16-2 16.00 24.0 6.0 -
MU 24 16-3 16.00 24.0 9.0 -
MU 24 16 16.00 24.0 10.0 -
MU 25 10 10.00 25.0 8.0 -
MU 25 12-1 12.00 25.0 9.0 -
MU 25 15-1 15.00 25.0 5.5 -
MU 25 15-2 15.00 25.0 9.0 -
MU 25 15 15.00 25.0 11.0 -
MU 25 16-1 16.00 25.0 9.0 -
MU 25 17-2 17.00 25.0 11.0 -
MU 25 18 18.00 25.0 5.5 -
MU 25 19-1 19.00 25.0 3.5 -
MU 25 19 19.00 25.0 7.0 -
MU 25 16 15.90 25.4 7.0 -
MU 26 16 16.00 26.0 6.0 -
MU 26 16-1 16.00 26.0 9.0 -
MU 26 16-2 16.00 26.0 11.0 -
MU 26 18-1 18.00 26.0 4.5 -
MU 26 18 18.00 26.0 7.5 -
MU 26 18-4 18.00 26.0 9.0 -
MU 27 15 15.00 27.0 7.0 -
MU 28 15 15.00 28.0 11.0 -
MU 28 16 16.00 28.0 7.0 -
MU 28 18 18.00 28.0 5.5 -
MU 28 18-1 18.00 28.0 9.0 -
MU 28 20 20.00 28.0 5.0 -
MU 28 20-1 20.00 28.0 5.5 -
MU 28 20-3 20.00 28.0 9.0 -
MU 28 22 22.00 28.0 9.0 -
MU 30 18-1 18.00 30.0 9.0 -
MU 30 20-1 20.00 30.0 5.5 -
MU 30 20-3 20.00 30.0 8.0 -
MU 30 20-2 20.00 30.0 9.0 -
MU 30 20 20.00 30.0 11.0 -
MU 30 22-1 22.00 30.0 4.5 -
MU 30 22-2 22.00 30.0 7.0 -
MU 30 22 22.00 30.0 7.5 -
MU 30 22-3 22.00 30.0 11.0 -
MU 30 23 23.00 30.0 7.5 0.5
MU 32 16 16.00 32.0 9.0 -
MU 32 20-2 20.00 32.0 8.5 -
MU 32 20-1 20.00 32.0 10.0 -
MU 32 22-1 22.00 32.0 5.5 -
MU 32 22 22.00 32.0 9.0 -
MU 32 22-2 22.00 32.0 11.0 -
MU 32 24-3 24.00 32.0 6.5 -
MU 32 24-1 24.00 32.0 7.5 -
MU 32 24-4 24.00 32.0 8.0 -
MU 33 25-1 25.00 33.0 4.5 -
MU 33 25-2 25.00 33.0 5.5 -
MU 33 25 25.00 33.0 7.5 -
MU 34 22 22.00 34.0 6.5 -
MU 34 26 26.00 34.0 4.5 0.5
MU 35 20 20.00 35.0 13.0 -
MU 35 22-1 22.00 35.0 6.0 -
MU 35 22 22.00 35.0 11.0 -
MU 35 25-1 25.00 35.0 5.5 -
MU 35 25-2 25.00 35.0 9.0 -
MU 35 25 25.00 35.0 11.0 -
MU 35 27 27.00 35.0 6.5 -
MU 35 28 28.00 35.0 5.5 -
MU 36 22 22.00 36.0 11.0 -
MU 36 24 24.00 36.0 6.5 -
MU 36 26-1 26.00 36.0 8.0 -
MU 36 28 28.00 36.0 7.5 -
MU 37 30 30.00 37.0 7.0 -
MU 38 25 25.00 38.0 9.0 -
MU 38 25-2 25.00 38.0 11.0 -
MU 38 28-1 28.00 38.0 9.0 -
MU 38 30 30.00 38.0 8.0 -
MU 38 30-2 30.00 38.0 6.5 -
MU 38 25-1 25.00 38.1 7.0 -
MU 39 20 20.00 39.0 11.0 -
MU 40 20-1 20.00 40.0 11.0 -
MU 40 20 20.00 40.0 12.0 -
MU 40 20-2 20.00 40.0 13.0 -
MU 40 22 22.00 40.0 11.0 -
MU 40 24 24.00 40.0 9.0 -
MU 40 25 25.00 40.0 8.0 -
MU 40 25-1 25.00 40.0 11.0 -
MU 40 28 28.00 40.0 6.5 -
MU 40 28-1 28.00 40.0 11.0 -
MU 40 30-1 30.00 40.0 5.5 -
MU 40 30 30.00 40.0 11.0 -
MU 40 32-1 32.00 40.0 4.5 -
MU 40 32 32.00 40.0 6.0 -
MU 40 32-3 32.00 40.0 9.0 -
MU 42 30-1 30.00 42.0 6.5 -
MU 42 30 30.00 42.0 10.0 -
MU 42 30-2 30.00 42.0 11.0 -
MU 42 32-1 32.00 42.0 5.5 -
MU 42 32-2 32.00 42.0 8.0 -
MU 42 32 32.00 42.0 11.0 -
MU 42 34 34.00 42.0 6.5 -
MU 45 25 25.00 45.0 11.0 -
MU 45 30 30.00 45.0 10.0 -
MU 45 30-1 30.00 45.0 11.0 -
MU 45 32 32.00 45.0 11.0 -
MU 45 34-1 34.00 45.0 8.0 -
MU 45 34 34.00 45.0 10.0 -
MU 45 35 35.00 45.0 5.5 -
MU 45 35-2 35.00 45.0 9.0 -
MU 45 35-3 35.00 45.0 11.0 -
MU 45 35-4 35.00 45.0 7.0 -
MU 45 38 38.00 45.0 5.5 -
MU 46 36 36.00 46.0 8.0 -
MU 46 38 38.00 46.0 7.5 -
MU 48 35 35.00 48.0 11.0 -
MU 48 36 36.00 48.0 9.0 -
MU 48 40-1 40.00 48.0 12.0 -
MU 50 30 30.00 50.0 11.0 -
MU 50 30-1 30.00 50.0 13.0 -
MU 50 32-1 32.00 50.0 13.0 -
MU 50 34-1 34.00 50.0 15.0 -
MU 50 35 35.00 50.0 8.0 -
MU 50 35-1 35.00 50.0 11.0 -
MU 50 38 38.00 50.0 6.5 -
MU 50 38-1 38.00 50.0 10.0 -
MU 50 40-2 40.00 50.0 5.5 -
MU 50 40 40.00 50.0 7.5 -
MU 50 40-3 40.00 50.0 9.0 -
MU 50 40-1 40.00 50.0 11.0 -
MU 50 44 44.00 50.0 9.5 -
MU 51 41 40.80 50.8 7.7 -
MU 52 32 32.00 52.0 11.0 -
MU 52 40 40.00 52.0 9.0 -
MU 52 40-2 40.00 52.0 11.0 -
MU 52 42-1 42.00 52.0 10.0 -
MU 53 45 45.00 53.0 7.5 -
MU 54 42 42.00 54.0 6.5 -
MU 55 35 35.00 55.0 11.0 -
MU 55 35-1 35.00 55.0 13.0 -
MU 55 38 38.00 55.0 11.0 -
MU 55 40 40.00 55.0 11.0 -
MU 55 45 45.00 55.0 7.5 -
MU 55 45-3 45.00 55.0 9.0 -
MU 55 45-1 45.00 55.0 11.0 -
MU 56 40 40.00 56.0 11.0 -
MU 58 38 38.00 58.0 11.0 -
MU 58 48 48.00 58.0 11.0 -
MU 60 35 35.00 60.0 13.0 -
MU 60 40-1 40.00 60.0 11.0 -
MU 60 40-2 40.00 60.0 14.0 -
MU 60 40-3 40.00 60.0 19.0 -
MU 60 45 45.00 60.0 11.0 -
MU 60 48 48.00 60.0 6.5 -
MU 60 50-2 50.00 60.0 5.5 -
MU 60 50 50.00 60.0 11.0 -
MU 60 50-1 50.00 60.0 12.0 -
MU 62 42 42.00 62.0 13.0 -
MU 62 50 50.00 62.0 10.0 -
MU 62 52 52.00 62.0 13.0 -
MU 63 45 45.00 63.0 11.0 -
MU 63 48 48.00 63.0 11.0 -
MU 63 50 50.00 63.0 7.0 -
MU 63 53-1 53.00 63.0 5.5 -
MU 63 53 53.00 63.0 7.5 -
MU 63 53-2 53.00 63.0 8.0 -
MU 65 40 40.00 65.0 13.0 -
MU 65 45 45.00 65.0 11.0 -
MU 65 45-1 45.00 65.0 13.0 -
MU 65 50-1 50.00 65.0 11.0 -
MU 65 55-1 55.00 65.0 11.0 -
MU 65 55 55.00 65.0 13.0 -
MU 70 36 26.00 70.0 11.0 -
MU 70 40 40.00 70.0 16.0 -
MU 70 50-1 50.00 70.0 11.0 -
MU 70 50 50.00 70.0 13.0 -
MU 70 50-2 50.00 70.0 16.0 -
MU 70 55-1 55.00 70.0 8.0 -
MU 70 55 55.00 70.0 11.0 -
MU 70 55-3 55.00 70.0 12.0 -
MU 70 55-2 55.00 70.0 13.0 -
MU 70 60-2 60.00 70.0 5.5 -
MU 70 60 60.00 70.0 9.0 -
MU 70 60-3 60.00 70.0 11.0 -
MU 70 60-1 60.00 70.0 13.0 -
MU 72 50 50.00 72.0 13.0 -
MU 75 50 50.00 75.0 13.0 -
MU 75 55 55.00 75.0 11.0 -
MU 75 55-1 55.00 75.0 13.0 -
MU 75 60-1 60.00 75.0 8.0 -
MU 75 60-2 60.00 75.0 11.0 -
MU 75 60 60.00 75.0 13.0 -
MU 75 63 63.00 75.0 11.0 -
MU 75 65 85.00 75.0 13.0 -
MU 76 56 56.00 76.0 13.0 -
MU 76 66 66.00 76.0 9.0 -
MU 78 63 63.00 78.0 11.0 -
MU 80 50 50.00 80.0 11.0 -
MU 80 55-3 55.00 80.0 11.0 0.5
MU 80 55 55.00 80.0 13.0 -
MU 80 55-1 55.00 80.0 20.0 0.5
MU 80 60 60.00 80.0 11.0 -
MU 80 60-1 60.00 80.0 13.0 -
MU 80 60-2 60.00 80.0 16.0 -
MU 80 60-3 60.00 80.0 19.0 -
MU 80 65-1 65.00 80.0 8.0 -
MU 80 65-3 65.00 80.0 11.0 -
MU 80 65-2 65.00 80.0 12.0 -
MU 80 65 65.00 80.0 13.0 -
MU 80 66 66.00 80.0 11.0 -
MU 80 70-2 70.00 80.0 5.5 -
MU 80 70 70.00 80.0 9.0 -
MU 80 70-3 70.00 80.0 11.0 -
MU 80 70-1 70.00 80.0 13.0 -
MU 83 63 63.00 83.0 16.0 -
MU 85 55 55.00 85.0 16.0 -
MU 85 60-2 60.00 85.0 11.0 -
MU 85 65-1 65.00 85.0 11.0 -
MU 85 65 65.00 85.0 13.0 -
MU 85 70 70.00 85.0 11.0 -
MU 85 70-1 70.00 85.0 12.0 -
MU 85 70-2 70.00 85.0 13.0 -
MU 85 75 75.00 85.0 13.0 -
MU 90 60 60.00 90.0 16.0 -
MU 90 70-1 70.00 90.0 11.0 -
MU 90 70 70.00 90.0 13.0 -
MU 90 70-2 70.00 90.0 16.0 -
MU 90 70-3 70.00 90.0 19.0 -
MU 90 75-1 75.00 90.0 8.5 -
MU 90 75 75.00 90.0 11.0 -
MU 90 75-2 75.00 90.0 13.0 -
MU 90 80 80.00 90.0 5.5 -
MU 90 80-2 80.00 90.0 11.0 -
MU 90 80-3 80.00 90.0 13.0 -
MU 93 78 78.00 93.0 11.5 -
MU 95 70-2 70.00 95.0 11.0 -
MU 95 70 70.00 95.0 13.0 -
MU 95 75-3 75.00 95.0 11.0 -
MU 95 75-1 75.00 95.0 13.0 -
MU 95 75 75.00 95.0 14.5 -
MU 95 80 80.00 95.0 8.0 -
MU 95 80-2 80.00 95.0 11.0 -
MU 95 80-1 80.00 95.0 13.0 -
MU 95 85-1 85.00 95.0 5.5 -
MU 95 85 85.00 95.0 9.5 -
MU 95 85-3 85.00 95.0 13.0 -
MU 96 76 76.50 96.5 13.0 -
MU 100 70 70.00 100.0 16.0 -
MU 100 75 75.00 100.0 13.0 -
MU 100 75-1 75.00 100.0 20.0 -
MU 100 80-1 80.00 100.0 11.0 -
MU 100 80 80.00 100.0 13.0 -
MU 100 85-3 85.00 100.0 10.0 -
MU 100 85-2 85.00 100.0 12.0 -
MU 100 85 85.00 100.0 13.0 -
MU 100 90-2 90.00 100.0 5.5 -
MU 100 90-4 90.00 100.0 8.0 -
MU 100 90 90.00 100.0 9.0 -
MU 100 90-3 90.00 100.0 13.0 -
MU 105 80-3 80.00 105.0 23.0 -
MU 105 85-1 85.00 105.0 13.0 -
MU 105 85-2 85.00 105.0 19.0 -
MU 105 90-1 90.00 105.0 8.0 -
MU 105 90 90.00 105.0 13.0 -
MU 110 80 80.00 110.0 16.0 -
MU 110 85 85.00 110.0 13.0 -
MU 110 90-1 90.00 110.0 11.0 -
MU 110 90 90.00 110.0 13.0 -
MU 110 90-3 90.00 110.0 19.0 -
MU 110 95-1 95.00 110.0 13.0 -
MU 110 95-2 95.00 110.0 16.0 -
MU 110 100 100.00 110.0 5.5 -
MU 112 095-1 95.00 112.0 12.0 -
MU 115 085 85.00 115.0 16.0 -
MU 115 090-2 90.00 115.0 16.0 -
MU 115 095 95.00 115.0 13.0 -
MU 115 095-3 95.00 115.0 19.0 -
MU 115 100 100.00 115.0 13.0 -
MU 120 090 90.00 120.0 16.0 -
MU 120 100-1 100.00 120.0 11.0 -
MU 120 100 100.00 120.0 13.0 -
MU 120 100-3 100.00 120.0 19.0 -
MU 120 105-3 105.00 120.0 9.0 -
MU 120 105-1 105.00 120.0 12.0 -
MU 120 105-2 105.00 120.0 16.0 -
MU 125 100 100.00 125.0 13.0 -
MU 125 100-1 100.00 125.0 16.0 -
MU 125 105 105.00 125.0 13.0 -
MU 125 105-2 105.00 125.0 16.0 -
MU 125 110-1 110.00 125.0 13.0 -
MU 125 110-2 110.00 125.0 16.0 -
MU 126 115 115.00 126.0 16.0 -
MU 130 100 100.00 130.0 13.0 -
MU 130 110-2 110.00 130.0 11.0 -
MU 130 110-1 110.00 130.0 13.0 -
MU 130 110 110.00 130.0 16.0 -
MU 130 110-3 110.00 130.0 19.0 -
MU 130 120 120.00 130.0 15.0 -
MU 135 115 115.00 135.0 16.0 -
MU 135 120 120.00 135.0 16.0 -
MU 140 115-1 115.00 140.0 16.0 -
MU 140 120-1 120.00 140.0 11.0 -
MU 140 120 120.00 140.0 13.0 -
MU 140 120-2 120.00 140.0 16.0 -
MU 140 125 125.00 140.0 12.0 -
MU 140 125-2 125.00 140.0 16.0 -
MU 145 125 125.00 145.0 16.0 -
MU 145 125-1 125.00 145.0 19.0 -
MU 150 130-1 130.10 150.0 16.0 -
MU 150 135-1 135.00 150.0 16.0 -
MU 155 125 125.00 155.0 16.0 -
MU 155 135 135.00 155.0 16.0 -
MU 160 135-1 135.00 160.0 16.0 -
MU 160 140 140.00 160.0 11.0 -
MU 160 140-2 140.00 160.0 13.0 -
MU 160 140-1 140.00 160.0 16.0 -
MU 165 145 145.00 165.0 16.0 -
MU 170 150-2 150.00 170.0 16.0 -
MU 175 160 160.00 175.0 12.0 -
MU 180 160 160.00 180.0 16.0 -
MU 190 170 170.00 190.0 16.0 -
MU 200 170-1 170.00 200.0 19.0 -
MU 200 175-1 175.00 200.0 16.0 -
MU 200 180 180.00 200.0 16.0 -
MU 220 180-1 180.00 220.0 21.0 0.5
MU 220 190 190.00 220.0 23.0 -
MU 225 200-2 200.00 225.0 19.0 -
MU 240 210 210.00 240.0 18.0 -
MU 250 220 220.00 250.0 19.0 -
MU 250 220-1 220.00 250.0 22.0 -
MU 320 305 305.00 320.0 18.0 -
MU 390 360 360.00 390.0 23.0 -
  • Дата публикации: 11.03.2021
  • Производитель: Hansa-Flex

Оплата и доставка

Способы доставки
  • Новая Почта
  • Самовывоз
  • Интайм
  • Гюнсел
Способы оплаты
  • Безналичный расчёт
  • Предоплата
