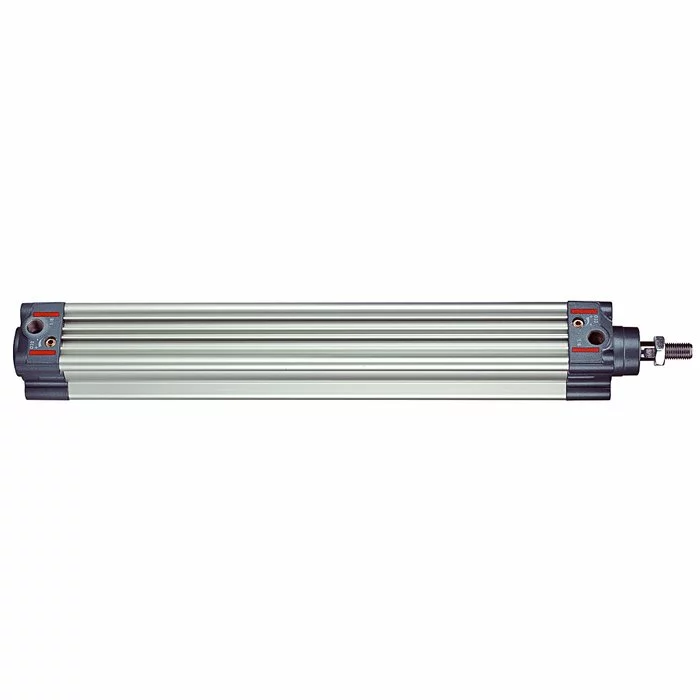

Standard cylinders - K-NORMZYLINDER

Код товара: 678841378
Наличие:
Нет в наличии
Цена:
1,00 грн./шт

Свойства

Рабочие среды

Filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.

Рабочее давление

Max. 10 bar

Область температур

-20 °C to +70 °C (Ø 32 to Ø 63)
-10 °C to +70 °C (Ø 80 to Ø 125)

Давление реагирования

0,4 bar (Ø 32 bis Ø 40), 0,3 bar (Ø 50 bis Ø 63), 0,2 bar (Ø 80 bis Ø 125)

Поршневой шток

Stahl C45, hartverchromt

Монтаж

Heads / jacket with self-tapping screws

Труба

Anodised aluminium jacket with integrated T-slots

Поршни

POM (Ø 20 to Ø 63); Aluminium (Ø 80 to Ø 125)

Уплотнение

Нитрильный каучук


Описание

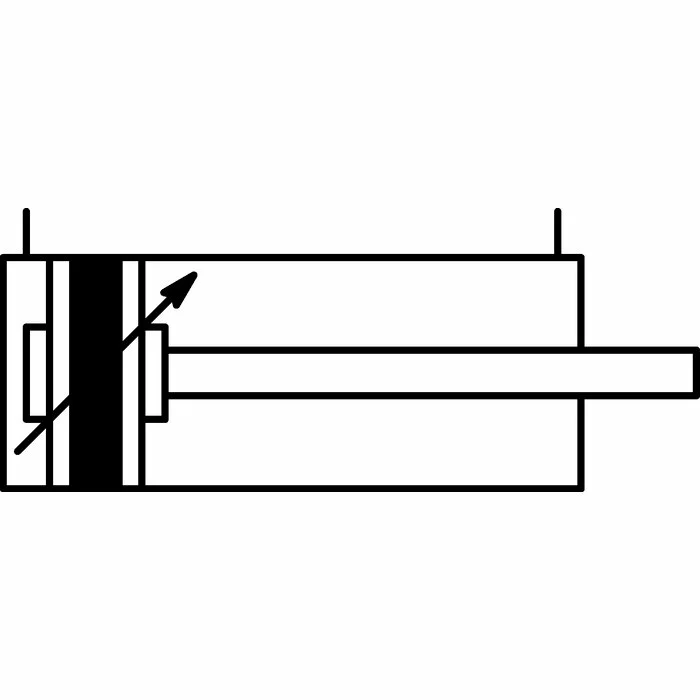

These cylinders are ideal for a wide range of applications owing to their robust design and ecxellent value for money. The standard type has a double-acting cylinder and features a magnetic piston as well as integrated cushioning. The magnetic switches can be mounted in two T-slots on the same side as the compressed air supply. <br>Cylinders of the same type can also be supplied on request with fixing parts for magnetic switches on three sides. <br>The version with a 125 mm bore is provided with fixing accessories on three sides as standard.


Изделие
Наименование Ø поршня Ход
mm		 Соединение Ø поршневого штока
mm		 Внешняя резьба поршневого штока
K- 07 15 15 90 32 mm 25 G 1/8" 12 M 10 x 1.25
K- 07 15 15 91 32 mm 50 G 1/8" 12 M 10 x 1.25
K- 07 15 15 92 32 mm 80 G 1/8" 12 M 10 x 1.25
K- 07 15 15 93 32 mm 100 G 1/8" 12 M 10 x 1.25
K- 07 15 15 94 32 mm 125 G 1/8" 12 M 10 x 1.25
K- 07 15 15 95 32 mm 160 G 1/8" 12 M 10 x 1.25
K- 07 15 15 96 32 mm 200 G 1/8" 12 M 10 x 1.25
K- 07 15 15 97 32 mm 250 G 1/8" 12 M 10 x 1.25
K- 07 15 15 98 32 mm 320 G 1/8" 12 M 10 x 1.25
K- 07 15 15 99 32 mm 400 G 1/8" 12 M 10 x 1.25
K- 07 15 16 00 32 mm 500 G 1/8" 12 M 10 x 1.25
K- 07 15 16 01 32 mm 600 G 1/8" 12 M 10 x 1.25
K- 07 15 16 02 32 mm 800 G 1/8" 12 M 10 x 1.25
K- 07 15 16 03 40 mm 25 G 1/4" 16 M 12 x 1.25
K- 07 15 16 04 40 mm 50 G 1/4" 16 M 12 x 1.25
K- 07 15 16 05 40 mm 80 G 1/4" 16 M 12 x 1.25
K- 07 15 16 06 40 mm 100 G 1/4" 16 M 12 x 1.25
K- 07 15 16 07 40 mm 125 G 1/4" 16 M 12 x 1.25
K- 07 15 16 08 40 mm 160 G 1/4" 16 M 12 x 1.25
K- 07 15 16 09 40 mm 200 G 1/4" 16 M 12 x 1.25
K- 07 15 16 10 40 mm 250 G 1/4" 16 M 12 x 1.25
K- 07 15 16 11 40 mm 320 G 1/4" 16 M 12 x 1.25
K- 07 15 16 12 40 mm 400 G 1/4" 16 M 12 x 1.25
K- 07 15 16 13 40 mm 500 G 1/4" 16 M 12 x 1.25
K- 07 15 16 14 40 mm 600 G 1/4" 16 M 12 x 1.25
K- 07 15 16 15 40 mm 800 G 1/4" 16 M 12 x 1.25
K- 07 15 16 16 50 mm 25 G 1/4" 20 M 16 x 1.5
K- 07 15 16 17 50 mm 50 G 1/4" 20 M 16 x 1.5
K- 07 15 16 18 50 mm 80 G 1/4" 20 M 16 x 1.5
K- 07 15 16 19 50 mm 100 G 1/4" 20 M 16 x 1.5
K- 07 15 16 20 50 mm 125 G 1/4" 20 M 16 x 1.5
K- 07 15 16 21 50 mm 160 G 1/4" 20 M 16 x 1.5
K- 07 15 16 22 50 mm 200 G 1/4" 20 M 16 x 1.5
K- 07 15 16 23 50 mm 250 G 1/4" 20 M 16 x 1.5
K- 07 15 16 24 50 mm 320 G 1/4" 20 M 16 x 1.5
K- 07 15 16 25 50 mm 400 G 1/4" 20 M 16 x 1.5
K- 07 15 16 26 50 mm 500 G 1/4" 20 M 16 x 1.5
K- 07 15 16 27 50 mm 600 G 1/4" 20 M 16 x 1.5
K- 07 15 16 28 50 mm 800 G 1/4" 20 M 16 x 1.5
K- 07 15 16 29 63 mm 25 G 3/8" 20 M 16 x 1.5
K- 07 15 16 30 63 mm 50 G 3/8" 20 M 16 x 1.5
K- 07 15 16 31 63 mm 80 G 3/8" 20 M 16 x 1.5
K- 07 15 16 32 63 mm 100 G 3/8" 20 M 16 x 1.5
K- 07 15 16 33 63 mm 125 G 3/8" 20 M 16 x 1.5
K- 07 15 16 34 63 mm 160 G 3/8" 20 M 16 x 1.5
K- 07 15 16 35 63 mm 200 G 3/8" 20 M 16 x 1.5
K- 07 15 16 36 63 mm 250 G 3/8" 20 M 16 x 1.5
K- 07 15 16 37 63 mm 320 G 3/8" 20 M 16 x 1.5
K- 07 15 16 38 63 mm 400 G 3/8" 20 M 16 x 1.5
K- 07 15 16 39 63 mm 500 G 3/8" 20 M 16 x 1.5
K- 07 15 16 40 63 mm 600 G 3/8" 20 M 16 x 1.5
K- 07 15 16 41 63 mm 800 G 3/8" 20 M 16 x 1.5
K- 07 15 16 42 80 mm 25 G 3/8" 25 M 20 x 1.5
K- 07 15 16 43 80 mm 50 G 3/8" 25 M 20 x 1.5
K- 07 15 16 44 80 mm 80 G 3/8" 25 M 20 x 1.5
K- 07 15 16 45 80 mm 100 G 3/8" 25 M 20 x 1.5
K- 07 15 16 46 80 mm 125 G 3/8" 25 M 20 x 1.5
K- 07 15 16 47 80 mm 160 G 3/8" 25 M 20 x 1.5
K- 07 15 16 48 80 mm 200 G 3/8" 25 M 20 x 1.5
K- 07 15 16 49 80 mm 250 G 3/8" 25 M 20 x 1.5
K- 07 15 16 50 80 mm 320 G 3/8" 25 M 20 x 1.5
K- 07 15 16 51 80 mm 400 G 3/8" 25 M 20 x 1.5
K- 07 15 16 52 80 mm 500 G 3/8" 25 M 20 x 1.5
K- 07 15 16 53 80 mm 600 G 3/8" 25 M 20 x 1.5
K- 07 15 16 54 80 mm 800 G 3/8" 25 M 20 x 1.5
K- 07 15 15 64 100 mm 25 G 1/2" 25 M 20 x 1.5
K- 07 15 15 65 100 mm 50 G 1/2" 25 M 20 x 1.5
K- 07 15 15 66 100 mm 80 G 1/2" 25 M 20 x 1.5
K- 07 15 15 67 100 mm 100 G 1/2" 25 M 20 x 1.5
K- 07 15 15 68 100 mm 125 G 1/2" 25 M 20 x 1.5
K- 07 15 15 69 100 mm 160 G 1/2" 25 M 20 x 1.5
K- 07 15 15 70 100 mm 200 G 1/2" 25 M 20 x 1.5
K- 07 15 15 71 100 mm 250 G 1/2" 25 M 20 x 1.5
K- 07 15 15 72 100 mm 320 G 1/2" 25 M 20 x 1.5
K- 07 15 15 73 100 mm 400 G 1/2" 25 M 20 x 1.5
K- 07 15 15 74 100 mm 500 G 1/2" 25 M 20 x 1.5
K- 07 15 15 75 100 mm 600 G 1/2" 25 M 20 x 1.5
K- 07 15 15 76 100 mm 800 G 1/2" 25 M 20 x 1.5
K- 07 15 15 77 125 mm 25 G 1/2" 32 M 27 x 2
K- 07 15 15 78 125 mm 50 G 1/2" 32 M 27 x 2
K- 07 15 15 79 125 mm 80 G 1/2" 32 M 27 x 2
K- 07 15 15 80 125 mm 100 G 1/2" 32 M 27 x 2
K- 07 15 15 81 125 mm 125 G 1/2" 32 M 27 x 2
K- 07 15 15 82 125 mm 160 G 1/2" 32 M 27 x 2
K- 07 15 15 83 125 mm 200 G 1/2" 32 M 27 x 2
K- 07 15 15 84 125 mm 250 G 1/2" 32 M 27 x 2
K- 07 15 15 85 125 mm 320 G 1/2" 32 M 27 x 2
K- 07 15 15 86 125 mm 400 G 1/2" 32 M 27 x 2
K- 07 15 15 87 125 mm 500 G 1/2" 32 M 27 x 2
K- 07 15 15 88 125 mm 600 G 1/2" 32 M 27 x 2
K- 07 15 15 89 125 mm 800 G 1/2" 32 M 27 x 2
