Скребковая манжета, WRM-P - WRM-P
Код товара: 678851584
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Модель
Скребковая манжета
Скорость скольжения макс.
0.8 m/s
Температура min.
-30 °C
Температура макс.
80 °C
Монтаж
сложить скребковую манжету по форме подковы и вдавить ее в приемный паз
Рабочие среды
Минеральное масло
Исполнение
Метрическая
Материал
Polyurethane (PUR)
Применение
Гидравлика
Описание
простой монтаж.
Простое решение.
высокая стойкость к истиранию
Изделие

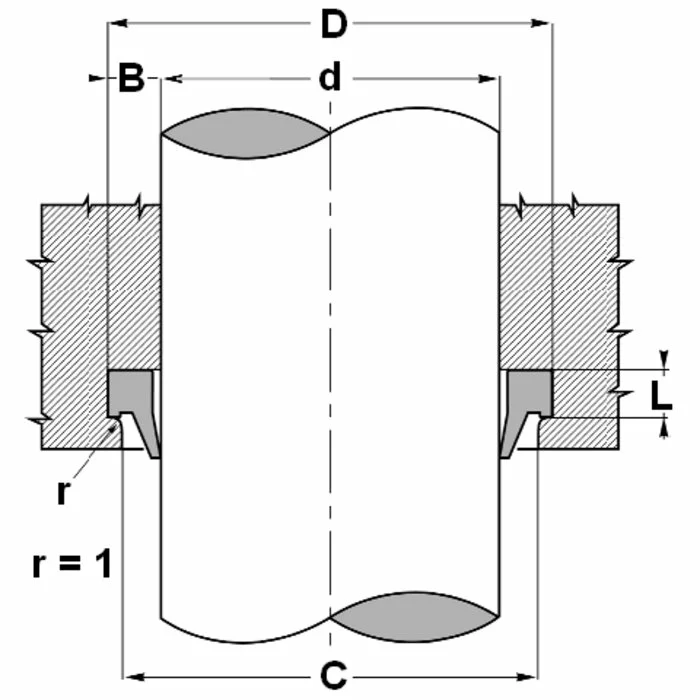

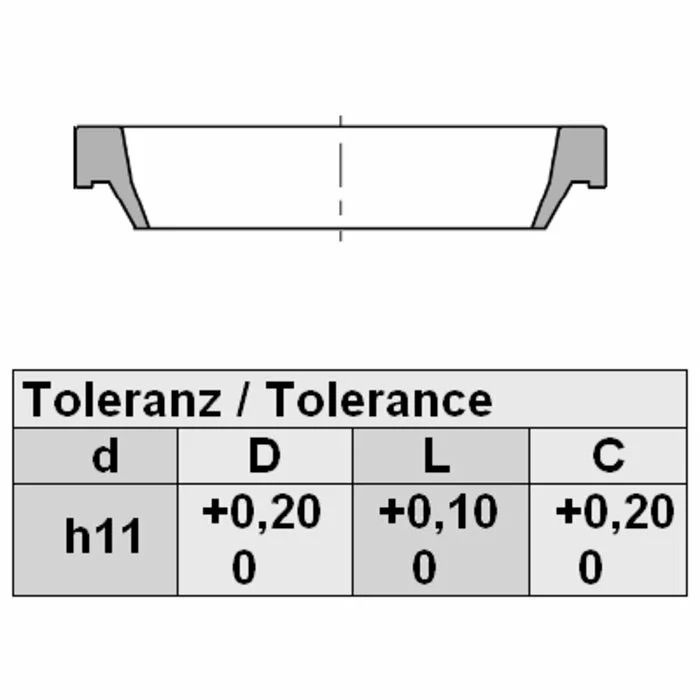

| Наименование | d mm |
D mm |
L mm |
C mm |
|---|---|---|---|---|
| WRM-P 04 | 4 | 12.0 | 3.0 | 9.0 |
| WRM-P 05-S | 5 | 12.0 | 2.8 | 9.0 |
| WRM-P 06-S | 6 | 12.0 | 3.0 | 9.0 |
| WRM-P 08 | 8 | 14.6 | 3.8 | 11.0 |
| WRM-P 10 | 10 | 16.6 | 3.8 | 13.0 |
| WRM-P 12 | 12 | 18.6 | 3.8 | 15.0 |
| WRM-P 14 | 14 | 20.6 | 3.8 | 17.0 |
| WRM-P 15 | 15 | 21.6 | 3.8 | 18.0 |
| WRM-P 16-1 | 16 | 22.5 | 3.0 | 19.0 |
| WRM-P 16 | 16 | 22.6 | 3.8 | 19.0 |
| WRM-P 18 | 18 | 24.6 | 3.8 | 21.0 |
| WRM-P 20-1 | 20 | 26.0 | 3.4 | 23.0 |
| WRM-P 20 | 20 | 28.6 | 5.3 | 23.0 |
| WRM-P 22 | 22 | 30.6 | 5.3 | 25.0 |
| WRM-P 25 | 25 | 33.6 | 5.3 | 28.0 |
| WRM-P 28 | 28 | 36.6 | 5.3 | 31.0 |
| WRM-P 30 | 30 | 38.6 | 5.3 | 33.0 |
| WRM-P 30-1 | 30 | 40.0 | 3.0 | 34.5 |
| WRM-P 32-1 | 32 | 40.0 | 3.7 | 35.0 |
| WRM-P 32 | 32 | 40.6 | 5.3 | 35.0 |
| WRM-P 35 | 35 | 43.6 | 5.3 | 38.0 |
| WRM-P 35-1B | 35 | 45.0 | 4.0 | 39.0 |
| WRM-P 36 | 36 | 44.6 | 5.3 | 39.0 |
| WRM-P 38 | 38 | 46.6 | 5.3 | 41.0 |
| WRM-P 38-1 | 38 | 48.5 | 4.8 | 41.0 |
| WRM-P 40 | 40 | 48.6 | 5.3 | 43.0 |
| WRM-P 42 | 42 | 50.6 | 5.3 | 45.0 |
| WRM-P 45 | 45 | 53.6 | 5.3 | 48.0 |
| WRM-P 45-1 | 45 | 55.6 | 5.3 | 48.0 |
| WRM-P 45-1B | 45 | 60.0 | 4.2 | 53.0 |
| WRM-P 50 | 50 | 58.6 | 5.3 | 53.0 |
| WRM-P 50-1 | 50 | 60.6 | 5.3 | 53.0 |
| WRM-P 50-1B | 50 | 65.5 | 4.2 | 58.0 |
| WRM-P 55 | 55 | 63.6 | 5.3 | 58.0 |
| WRM-P 55-1 | 55 | 65.6 | 5.3 | 58.0 |
| WRM-P 56 | 56 | 64.6 | 5.3 | 59.0 |
| WRM-P 56-1 | 56 | 66.6 | 5.3 | 59.0 |
| WRM-P 60 | 60 | 68.6 | 5.3 | 63.0 |
| WRM-P 60-S | 60 | 70.6 | 5.5 | 66.5 |
| WRM-P 63 | 63 | 71.6 | 5.3 | 66.0 |
| WRM-P 63-1 | 63 | 73.6 | 5.3 | 67.0 |
| WRM-P 65 | 65 | 73.6 | 5.3 | 68.0 |
| WRM-P 65-2 | 65 | 75.6 | 5.3 | 69.0 |
| WRM-P 65-1 | 65 | 76.6 | 6.0 | 71.5 |
| WRM-P 70 | 70 | 78.6 | 5.3 | 73.0 |
| WRM-P 70-2 | 70 | 80.0 | 5.0 | 74.0 |
| WRM-P 70-1 | 70 | 82.6 | 7.1 | 76.0 |
| WRM-P 73-1 | 73 | 83.6 | 7.3 | 76.0 |
| WRM-P 75 | 75 | 83.6 | 5.3 | 78.0 |
| WRM-P 75-1 | 75 | 87.2 | 7.1 | 81.0 |
| WRM-P 78-2 | 78 | 86.0 | 5.0 | 81.0 |
| WRM-P 78-S | 78 | 88.6 | 5.5 | 84.5 |
| WRM-P 80 | 80 | 88.6 | 5.3 | 83.0 |
| WRM-P 80-1 | 80 | 92.6 | 7.1 | 86.0 |
| WRM-P 85-1 | 85 | 93.6 | 5.3 | 88.0 |
| WRM-P 85 | 85 | 97.2 | 7.1 | 91.0 |
| WRM-P 90 | 90 | 102.2 | 7.1 | 96.0 |
| WRM-P 92-S | 92 | 103.6 | 5.5 | 97.0 |
| WRM-P 95 | 95 | 107.2 | 7.1 | 101.0 |
| WRM-P 97-2 | 97 | 105.0 | 5.0 | 100.0 |
| WRM-P 99 | 99 | 109.6 | 5.5 | 103.0 |
| WRM-P 100 | 100 | 112.2 | 7.1 | 106.0 |
| WRM-P 105 | 105 | 117.2 | 7.1 | 111.0 |
| WRM-P 110 | 110 | 122.2 | 7.1 | 116.0 |
| WRM-P 115-1 | 115 | 123.6 | 5.3 | 118.0 |
| WRM-P 115 | 115 | 127.2 | 7.1 | 121.0 |
| WRM-P 120-S | 120 | 130.6 | 5.5 | 126.5 |
| WRM-P 120 | 120 | 132.2 | 7.1 | 126.0 |
| WRM-P 125 | 125 | 137.2 | 7.1 | 131.0 |
| WRM-P125-1 | 125 | 140.2 | 10.1 | 132.0 |
| WRM-P 130-1 | 130 | 138.6 | 5.3 | 133.0 |
| WRM-P 130 | 130 | 142.2 | 7.1 | 136.0 |
| WRM-P 135 | 135 | 147.2 | 7.1 | 141.0 |
| WRM-P 140-2 | 140 | 148.6 | 6.0 | 143.0 |
| WRM-P 140 | 140 | 152.2 | 7.1 | 146.0 |
| WRM-P 140-1 | 140 | 155.0 | 9.0 | 147.0 |
| WRM-P 141-S | 141 | 151.6 | 5.5 | 147.5 |
| WRM-P 145 | 145 | 157.2 | 7.1 | 151.0 |
| WRM-P 150-2 | 150 | 158.6 | 5.3 | 153.0 |
| WRM-P 150 | 150 | 162.2 | 7.1 | 156.0 |
| WRM-P 150-1 | 150 | 165.0 | 7.5 | 156.0 |
| WRM-P 150-3 | 150 | 165.2 | 10.1 | 158.0 |
| WRM-P 160-1 | 160 | 172.2 | 7.1 | 166.0 |
| WRM-P 160 | 160 | 175.2 | 10.1 | 167.6 |
| WRM-P 162-S | 162 | 172.6 | 5.5 | 168.0 |
| WRM-P 170 | 170 | 185.2 | 10.1 | 178.0 |
| WRM-P 180 | 180 | 195.2 | 10.1 | 188.0 |
| WRM-P 180-2 | 180 | 200.0 | 7.0 | 188.0 |
| WRM-P 180-3 | 180 | 200.0 | 10.2 | 190.0 |
| WRM-P 183-S | 183 | 193.6 | 5.5 | 189.0 |
| WRM-P 190-2 | 190 | 198.6 | 5.3 | 193.0 |
| WRM-P 190 | 190 | 205.2 | 10.1 | 198.0 |
| WRM-P 190-1 | 190 | 210.0 | 10.1 | 200.0 |
| WRM-P 200 | 200 | 215.2 | 10.1 | 208.0 |
| WRM-P 200-3 | 200 | 220.0 | 10.2 | 210.0 |
| WRM-P 220 | 220 | 235.2 | 10.1 | 228.0 |
| WRM-P 220-1 | 220 | 240.0 | 10.1 | 230.0 |
| WRM-P 230 | 230 | 245.2 | 10.1 | 238.0 |
| WRM-P 240 | 240 | 255.2 | 10.1 | 248.0 |
| WRM-P 300-5 | 300 | 315.2 | 10.1 | 308.0 |
