Самоуплотняющаеся кольцо, UR - UR / 08BS
Код товара: 678882664
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Модель
Самоуплотняющаяся прокладка
Дополнение к модели
С вулканизированным изнутри трапецеидальным уплотнительным утолщением из эластичной резины
Температура min.
-30 °C
Температура макс.
110 °C
Материал
(1) Нитрильный каучук
(2) кадмированная или пассивированная углеродистая сталь
Защита поверхности
Металлическое кольцо: цинкохроматирование
Описание
отличная герметичность
препятствует саморазвинчиванию частей
Изделие

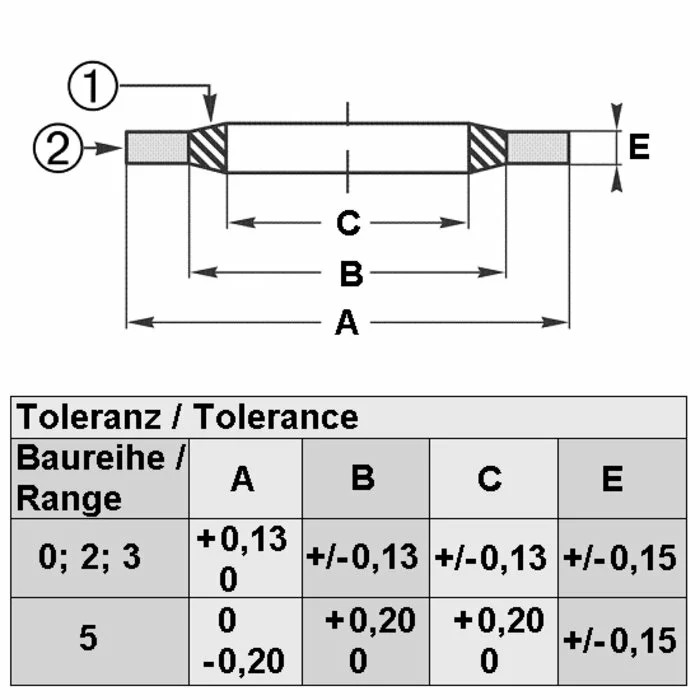

| Наименование | Для резьбы | для резьбы | d1 mm |
d2 mm |
S mm |
A mm |
B mm |
C mm |
E mm |
Давление PB bar |
|---|---|---|---|---|---|---|---|---|---|---|
| UR 3.1-6.4-1.3 | - | - | 3.10 | 6.40 | 1.30 | - | - | - | - | - |
| UR 3.7-8-1.04 | - | - | 3.70 | 8.00 | 1.04 | - | - | - | - | - |
| UR 4.1-7.2-1 | - | - | 4.10 | 7.20 | 1.00 | - | - | - | - | - |
| UR 4.5-7-1 | - | - | 4.50 | 7.00 | 1.00 | - | - | - | - | - |
| UR 5.7-9-1 | M 5 | - | - | - | - | 9.00 | 6.80 | 5.70 | 1.00 | 1400 |
| UR 5.7-10-1 | - | - | 5.70 | 10.00 | 1.00 | - | - | - | - | - |
| UR 6.2-9.2-1 | M 5.5 | - | - | - | - | 9.20 | 7.20 | 6.20 | 1.00 | 1220 |
| 08BS 304 | M 6 | - | - | - | - | 11.00 | 8.00 | 6.60 | 1.00 | 1680 |
| 08BS 206 | M 6 | - | - | - | - | 10.00 | 8.00 | 6.70 | 1.00 | 1130 |
| UR 6.7-11-1 | M 6 | - | - | - | - | 11.00 | 8.20 | 6.70 | 1.00 | 1510 |
| UR 6.9-13.2-1.3 | - | 1/4 дюйма | - | - | - | 13.21 | 8.00 | 6.86 | 1.30 | 2450 |
| UR 7-13.4-1.3 | - | 1/4 дюйма | - | - | - | 13.34 | 9.53 | 6.99 | 1.30 | 1700 |
| 08BS 306 | M 6 | - | - | - | - | 11.40 | 8.40 | 7.00 | 1.00 | 1540 |
| UR 7.1-12-1 | - | - | 7.10 | 12.00 | 1.00 | - | - | - | - | - |
| UR 7.1-13.2-1.37 | - | - | 7.10 | 13.20 | 1.37 | - | - | - | - | - |
| UR 7.3-10-1 | - | - | 7.30 | 10.00 | 1.00 | - | - | - | - | - |
| 08BS 006 | - | 5/16 дюйма | - | - | - | 13.34 | 9.53 | 8.31 | 1.30 | 1700 |
| UR 8.5-13.4-1 | M 8 | - | - | - | - | 13.00 | 9.40 | 8.50 | 1.00 | 1780 |
| 08BS 007 | - | 5/16 дюйма | - | - | - | 14.22 | 10.04 | 8.64 | 1.30 | 1750 |
| UR 8.7-13-1 | M 8 | - | - | - | - | 13.00 | 10.00 | 8.70 | 1.00 | 1330 |
| UR 8.7-14-1 | M 8 | - | - | - | - | 14.00 | 10.40 | 8.70 | 1.00 | 1550 |
| UR 8.7-14.2-1.3 | - | 5/16 дюйма | - | - | - | 14.20 | 10.04 | 8.70 | 1.30 | 1750 |
| UR 9.3-13.3-1 | - | - | - | - | - | 13.00 | 10.50 | 9.30 | 1.00 | 1200 |
| UR 10.35-16-2 | M 10 | - | - | - | - | 16.00 | 12.00 | 10.35 | 2.00 | 1470 |
| 08BS 020 | - | 3/8 дюйма | - | - | - | 15.88 | 11.84 | 10.37 | 2.00 | 1500 |
| 08BS 510 | - | - | - | - | - | 14.70 | 12.00 | 10.40 | 1.25 | 930 |
| UR 10.7-16-1.5 | M 10 | - | - | - | - | 16.00 | 12.40 | 10.70 | 1.50 | 1350 |
| 08BS 310 | M 10 | - | - | - | - | 17.00 | 12.10 | 10.70 | 1.50 | 1730 |
| UR 10.7-18-1.5 | M 10 | - | - | - | - | 18.00 | 12.40 | 10.70 | 1.50 | 1880 |
| 08BS 008 | - | 7/16 дюйма | - | - | - | 18.36 | 12.45 | 11.26 | 2.00 | 1950 |
| UR 11.4-16.3-1.5 | M 11 | - | - | - | - | 16.30 | 12.70 | 11.40 | 1.50 | 1280 |
| 08BS 009 | - | 7/16 дюйма | - | - | - | 19.05 | 13.08 | 11.69 | 2.00 | 1900 |
| UR 11.8-18.5-1.5 | M 11 | - | - | - | - | 18.50 | 13.70 | 11.80 | 1.50 | 1540 |
| UR 11.8-19.1-1.5 | M 11 | - | - | - | - | 19.10 | 13.50 | 11.80 | 1.50 | 1770 |
| UR 12.7-18-1.5 | M 12 | - | - | - | - | 18.00 | 14.40 | 12.70 | 1.50 | 1250 |
| 08BS 313 | M 12 | - | - | - | - | 19.00 | 14.10 | 12.70 | 1.50 | 1530 |
| UR 12.7-20-1.5 | M 12 | - | - | - | - | 20.00 | 14.00 | 12.70 | 1.50 | 1680 |
| UR 13.7-20-1.5 | M 13 | - | - | - | - | 20.00 | 15.40 | 13.70 | 1.50 | 1340 |
| UR 13.7-22-1.5 | M 13 | - | - | - | - | 22.00 | 15.40 | 13.70 | 1.50 | 1810 |
| 08BS 021 | - | 1/2 дюйма | - | - | - | 20.57 | 15.21 | 13.74 | 2.00 | 1550 |
| 08BS 315 | - | - | - | - | - | 20.10 | 15.20 | 13.80 | 1.50 | 1440 |
| 08BS 511 | - | - | - | - | - | 18.70 | 15.75 | 13.90 | 1.25 | 793 |
| UR 14-18.7-1.5 | - | - | - | - | - | 18.70 | 15.70 | 14.00 | 1.50 | 900 |
| 08BS 316 | M 14 | - | - | - | - | 21.00 | 16.10 | 14.70 | 1.50 | 1370 |
| UR 14.7-22-1.5 | M 14 | - | - | - | - | 22.00 | 16.40 | 14.70 | 1.50 | 1510 |
| UR 14.9-22.3-2.1 | - | 9/16 inch | - | - | - | 22.23 | 16.39 | 14.86 | 2.10 | 1575 |
| 08BS 022 | - | 19/32 дюйма | - | - | - | 22.23 | 17.30 | 15.83 | 2.00 | 1310 |
| UR 16-22.7-1.5 | M 15 | - | - | - | - | 22.00 | 17.78 | 16.00 | 1.50 | 1260 |
| 08BS 011 | - | 5/8 дюйма | - | - | - | 25.40 | 18.75 | 16.51 | 2.00 | 1550 |
| 08BS 317 | M 16 | - | - | - | - | 23.00 | 18.10 | 16.70 | 1.50 | 1240 |
| UR 16.7-24-1.5 | M 16 | - | - | - | - | 24.00 | 18.40 | 16.70 | 1.50 | 1400 |
| 08BS 023 | - | - | - | - | - | 23.80 | 18.75 | 17.28 | 2.00 | 1260 |
| 08BS 512 | - | - | - | - | - | 22.70 | 19.25 | 17.30 | 1.25 | 775 |
| UR 17.4-24-1.5 | M 17 | - | - | - | - | 24.00 | 19.20 | 17.40 | 1.50 | 1150 |
| UR 18-24.7-1.5 | - | - | - | - | - | 24.70 | 20.10 | 18.00 | 1.50 | 1070 |
| UR 18.2-25.4-2.5 | - | 11/16 дюйма | - | - | - | 25.40 | 16.69 | 18.16 | 2.50 | 1320 |
| UR 18.7-26-1.5 | M 18 | - | - | - | - | 26.00 | 20.40 | 18.70 | 1.50 | 1275 |
| 08BS 320 | M 18 | - | - | - | - | 27.00 | 20.40 | 18.70 | 2.00 | 1450 |
| 08BS 024 | - | 3/4 дюйма | - | - | - | 26.92 | 21.21 | 19.69 | 2.50 | 1260 |
| UR 20.7-28-1.5 | M 20 | - | - | - | - | 28.00 | 22.50 | 20.70 | 1.50 | 1150 |
| 08BS 321 | M 20 | - | - | - | - | 29.00 | 22.40 | 20.70 | 2.00 | 1340 |
| UR 21.5-28.7-2.5 | M 21 | - | - | - | - | 28.70 | 23.30 | 21.50 | 2.50 | 1080 |
| 08BS 025 | - | 13/16 дюйма | - | - | - | 28.58 | 23.01 | 21.54 | 2.50 | 1150 |
| 08BS 513 | - | - | - | - | - | 26.70 | 23.55 | 21.70 | 1.25 | 586 |
| 08BS 323 | - | - | - | - | - | 30.00 | 23.40 | 21.70 | 2.00 | 1290 |
| UR 22.5-28-1.5 | M 22 | - | - | - | - | 28.00 | 24.20 | 22.50 | 1.50 | 760 |
| UR 22.7-30-2 | M 22 | - | - | - | - | 30.00 | 24.40 | 22.70 | 2.00 | 1100 |
| 08BS 324 | M 22 | - | - | - | - | 31.00 | 24.40 | 22.70 | 2.00 | 1240 |
| 08BS 026 | - | - | - | - | - | 31.75 | 24.97 | 23.49 | 2.50 | 1250 |
| 08BS 013 | - | 15/16 дюйма | - | - | - | 33.27 | 26.40 | 24.26 | 2.50 | 1275 |
| UR 24.7-32-2 | M 24 | - | - | - | - | 32.00 | 26.40 | 24.70 | 2.00 | 1050 |
| 08BS 326 | M 24 | - | - | - | - | 33.00 | 26.40 | 24.70 | 2.00 | 1160 |
| UR 26.7-35-2 | - | - | - | - | - | 35.00 | 28.40 | 26.70 | 2.00 | 1050 |
| UR 27-35-2.5 | - | 1 дюйм | - | - | - | 34.93 | 28.53 | 27.05 | 2.50 | 1060 |
| UR 27.2-36-2 | - | - | 27.20 | 36.00 | 2.00 | - | - | - | - | - |
| 08BS 514 | - | 5/8 дюйма | - | - | - | 32.50 | 29.20 | 27.30 | 1.25 | 500 |
| 08BS 328 | M 27 | - | - | - | - | 36.00 | 29.40 | 27.70 | 2.00 | 1060 |
| 08BS 028 | - | 1.1/16 дюйма | - | - | - | 38.61 | 30.61 | 27.82 | 2.50 | 1250 |
| 08BS 329 | - | - | - | - | - | 36.00 | 30.30 | 28.60 | 2.00 | 730 |
| UR 28.7-37-2 | - | - | 28.70 | 37.00 | 2.00 | - | - | - | - | - |
| 08BS 014 | - | 1.1/8 дюйма | - | - | - | 36.58 | 30.86 | 29.33 | 2.50 | 900 |
| 08BS 331 | M 30 | - | - | - | - | 39.00 | 32.40 | 30.70 | 2.00 | 970 |
| 08BS 029 | - | 1.3/16 дюйма | - | - | - | 38.10 | 32.29 | 30.81 | 2.50 | 900 |
| UR 31-39-2 | M 30 | - | - | - | - | 39.00 | 32.40 | 31.00 | 2.00 | 970 |
| 08BS 015 | - | 1.1/4 дюйма | - | - | - | 41.40 | 35.69 | 32.64 | 3.40 | 810 |
| UR 33.7-42-2 | M 33 | - | - | - | - | 42.00 | 35.40 | 33.70 | 2.00 | 900 |
| UR 33.9-42.9-3.4 | - | 1.5/16 дюйма | - | - | - | 42.80 | 36.88 | 33.89 | 3.40 | 790 |
| 08BS 515 | - | 1 дюйм | - | - | - | 39.50 | 36.10 | 34.20 | 2.00 | 414 |
| UR 34.3-43-2 | M 33 | - | - | - | - | 43.00 | 36.40 | 34.30 | 2.00 | 880 |
| 08BS 016 | - | 1.3/8 дюйма | - | - | - | 44.45 | 38.99 | 35.94 | 3.40 | 700 |
| UR 36.7-46-2 | M 36 | - | - | - | - | 46.00 | 38.80 | 36.70 | 2.00 | 890 |
| 08BS 333 | - | - | - | - | - | 48.00 | 39.60 | 37.00 | 2.50 | 1010 |
| 08BS 017 | - | 1.1/2 дюйма | - | - | - | 47.75 | 42.04 | 38.96 | 3.40 | 700 |
| UR 40-51-2.5 | M 39 | - | - | - | - | 51.00 | 42.60 | 40.00 | 2.50 | 970 |
| UR 42.7-53-3 | M 42 | - | - | - | - | 53.00 | 44.00 | 42.70 | 3.00 | 800 |
| 08BS 516 | - | - | - | - | - | 49.50 | 44.70 | 42.80 | 2.00 | 500 |
| 08BS 032 | - | 1.5/8 дюйма | - | - | - | 52.38 | 45.93 | 42.93 | 3.40 | 690 |
| 08BS 018 | - | 1.3/4 дюйма | - | - | - | 57.15 | 48.39 | 45.34 | 3.40 | 875 |
| 08BS 033 | - | 1.7/8 дюйма | - | - | - | 58.60 | 51.39 | 48.44 | 3.40 | 690 |
| 08BS 517 | M 48 | 1.1/2 дюйма | - | - | - | 55.50 | 50.60 | 48.70 | 2.00 | 434 |
| UR 48.7-59-3 | M 48 | - | - | - | - | 59.00 | 50.80 | 48.70 | 3.00 | 800 |
| 08BS 337 | M 48 | - | - | - | - | 60.00 | 51.60 | 49.00 | 2.50 | 790 |
| UR 51.7-63.5-3.4 | - | - | 51.70 | 63.50 | 3.40 | - | - | - | - | - |
| UR 53.3-64.5-3 | M 52 | - | - | - | - | 64.50 | 56.40 | 53.30 | 3.00 | 710 |
| 08BS 034 | - | 2.1/8 дюйма | - | - | - | 69.85 | 58.30 | 54.89 | 3.40 | 950 |
| 08BS 035 | - | 2.1/4 дюйма | - | - | - | 70.36 | 61.09 | 58.04 | 3.40 | 740 |
| 08BS 518 | - | - | - | - | - | 68.50 | 62.40 | 60.50 | 2.00 | 448 |
| 08BS 036 | - | - | - | - | - | 73.03 | 63.63 | 60.58 | 3.40 | 700 |
| UR 60.7-73-3 | M 60 | - | - | - | - | 73.00 | 63.00 | 60.70 | 3.00 | 780 |
| 08BS 037 | - | 2.1/2 дюйма | - | - | - | 77.72 | 67.44 | 64.39 | 3.40 | 750 |
| 08BS 038 | - | - | - | - | - | 79.50 | 69.98 | 66.68 | 3.40 | 670 |
| 08BS 039 | - | - | - | - | - | 90.30 | 79.38 | 76.08 | 3.40 | 680 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
