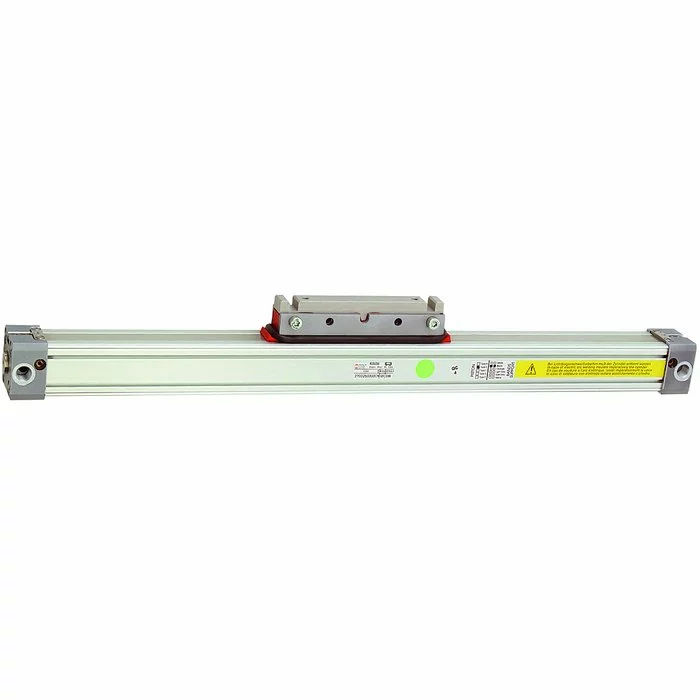

Rodless cylinders - K-KOLST LOSE ZYL

Код товара: 678841420
Наличие:
Нет в наличии
Цена:
1,00 грн./шт

Свойства

Рабочие среды

Filtered (50 μm), unlubricated or lubricated compressed air. If lubrication is used, it must be continuous.

Рабочее давление

1 to 8 bar

Область температур

-15 °C to +80 °C

Корпус

Jacket made from anodised aluminium alloy

Салазки (направляющие поршня)

Anodised aluminium alloy

Уплотнение

NBR for speeds up to 1 m/s

внутренняя/внешняя лента

Stainless steel


Описание

These double-acting cylinders can also be supplied with strokes greater than 5 m, providing the stroke length is approximately equal to the overall length. They are equipped with magnets as standard for indicating the position as well as pneumatic, adjustable end position cushioning. Limit switches and hydraulic shock absorbers can be mounted as add-on modules.


Изделие
Наименование Усилие 6 бар
N		 Ø поршня Ход
mm		 Соединение макс. боковая нагрузка
K- 07 15 07 34 110 16 mm 100 M5 0.3 Nm
K- 07 15 07 35 110 16 mm 200 M5 0.3 Nm
K- 07 15 07 36 110 16 mm 300 M5 0.3 Nm
K- 07 15 07 37 110 16 mm 400 M5 0.3 Nm
K- 07 15 07 38 110 16 mm 500 M5 0.3 Nm
K- 07 15 07 39 110 16 mm 600 M5 0.3 Nm
K- 07 15 07 40 110 16 mm 700 M5 0.3 Nm
K- 07 15 07 41 110 16 mm 800 M5 0.3 Nm
K- 07 15 07 42 110 16 mm 900 M5 0.3 Nm
K- 07 15 07 43 110 16 mm 1000 M5 0.3 Nm
K- 07 15 07 44 110 16 mm 1200 M5 0.3 Nm
K- 07 15 07 45 110 16 mm 1400 M5 0.3 Nm
K- 07 15 07 46 110 16 mm 2000 M5 0.3 Nm
K- 07 15 07 47 250 25 mm 100 G 1/8" 1.0 Nm
K- 07 15 07 48 250 25 mm 200 G 1/8" 1.0 Nm
K- 07 15 07 49 250 25 mm 300 G 1/8" 1.0 Nm
K- 07 15 07 50 250 25 mm 400 G 1/8" 1.0 Nm
K- 07 15 07 51 250 25 mm 500 G 1/8" 1.0 Nm
K- 07 15 07 52 250 25 mm 600 G 1/8" 1.0 Nm
K- 07 15 07 53 250 25 mm 700 G 1/8" 1.0 Nm
K- 07 15 07 54 250 25 mm 800 G 1/8" 1.0 Nm
K- 07 15 07 55 250 25 mm 900 G 1/8" 1.0 Nm
K- 07 15 07 56 250 25 mm 1000 G 1/8" 1.0 Nm
K- 07 15 07 57 250 25 mm 1200 G 1/8" 1.0 Nm
K- 07 15 07 58 250 25 mm 1400 G 1/8" 1.0 Nm
K- 07 15 07 59 250 25 mm 2000 G 1/8" 1.0 Nm
K- 07 15 07 60 420 32 mm 100 G 1/4" 2.0 Nm
K- 07 15 07 61 420 32 mm 200 G 1/4" 2.0 Nm
K- 07 15 07 62 420 32 mm 300 G 1/4" 2.0 Nm
K- 07 15 07 63 420 32 mm 400 G 1/4" 2.0 Nm
K- 07 15 07 64 420 32 mm 500 G 1/4" 2.0 Nm
K- 07 15 07 65 420 32 mm 600 G 1/4" 2.0 Nm
K- 07 15 07 66 420 32 mm 700 G 1/4" 2.0 Nm
K- 07 15 07 67 420 32 mm 800 G 1/4" 2.0 Nm
K- 07 15 07 68 420 32 mm 900 G 1/4" 2.0 Nm
K- 07 15 07 69 420 32 mm 1000 G 1/4" 2.0 Nm
K- 07 15 07 70 420 32 mm 1200 G 1/4" 2.0 Nm
K- 07 15 07 71 420 32 mm 1400 G 1/4" 2.0 Nm
K- 07 15 07 72 420 32 mm 2000 G 1/4" 2.0 Nm
K- 07 15 07 73 640 40 mm 100 G 1/4" 4.0 Nm
K- 07 15 07 74 640 40 mm 200 G 1/4" 4.0 Nm
K- 07 15 07 75 640 40 mm 300 G 1/4" 4.0 Nm
K- 07 15 07 76 640 40 mm 400 G 1/4" 4.0 Nm
K- 07 15 07 77 640 40 mm 500 G 1/4" 4.0 Nm
K- 07 15 07 78 640 40 mm 600 G 1/4" 4.0 Nm
K- 07 15 07 79 640 40 mm 700 G 1/4" 4.0 Nm
K- 07 15 07 80 640 40 mm 800 G 1/4" 4.0 Nm
K- 07 15 07 81 640 40 mm 900 G 1/4" 4.0 Nm
K- 07 15 07 82 640 40 mm 1000 G 1/4" 4.0 Nm
K- 07 15 07 83 640 40 mm 1200 G 1/4" 4.0 Nm
K- 07 15 07 84 640 40 mm 1400 G 1/4" 4.0 Nm
K- 07 15 07 85 640 40 mm 2000 G 1/4" 4.0 Nm
K- 07 15 07 86 1550 63 mm 100 G 3/8" 8.0 Nm
K- 07 15 07 87 1550 63 mm 200 G 3/8" 8.0 Nm
K- 07 15 07 88 1550 63 mm 300 G 3/8" 8.0 Nm
K- 07 15 07 89 1550 63 mm 400 G 3/8" 8.0 Nm
K- 07 15 07 90 1550 63 mm 500 G 3/8" 8.0 Nm
K- 07 15 07 91 1550 63 mm 600 G 3/8" 8.0 Nm
K- 07 15 07 92 1550 63 mm 700 G 3/8" 8.0 Nm
K- 07 15 07 93 1550 63 mm 800 G 3/8" 8.0 Nm
K- 07 15 07 94 1550 63 mm 900 G 3/8" 8.0 Nm
K- 07 15 07 95 1550 63 mm 1000 G 3/8" 8.0 Nm
K- 07 15 07 96 1550 63 mm 1200 G 3/8" 8.0 Nm
K- 07 15 07 97 1550 63 mm 1400 G 3/8" 8.0 Nm
K- 07 15 07 98 1550 63 mm 2000 G 3/8" 8.0 Nm
