Модель

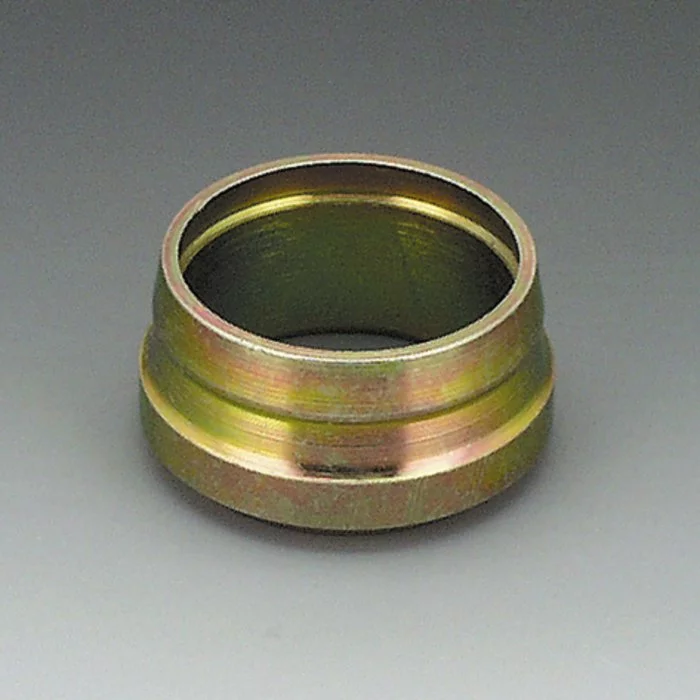

Режущее кольцо
_____
DIN 3861
Материал
Латунь

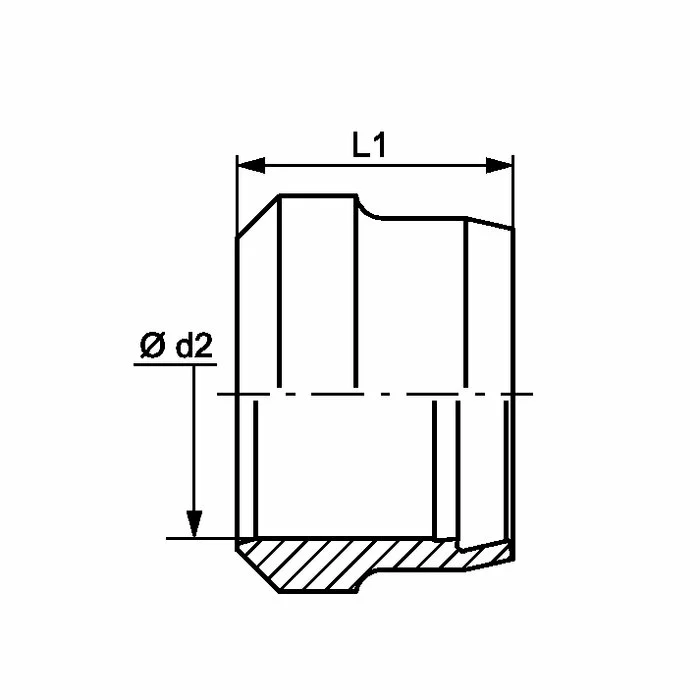

Наименование | Ø d2 mm |
Серия | L1 mm |
---|---|---|---|
SRD 04 LL MG | 4 | LL | 6.0 |
SRD 05 LL MG | 5 | LL | 7.0 |
SRD 06 LL MG | 6 | LL | 7.0 |
SRD 08 LL MG | 8 | LL | 7.0 |
SRD 10 LL MG | 10 | LL | 7.0 |
SRD 12 LL MG | 12 | LL | 7.5 |
SRD 06 MG | 6 | LS | 9.5 |
SRD 08 MG | 8 | LS | 9.5 |
SRD 10 MG | 10 | LS | 10.0 |
SRD 12 MG | 12 | LS | 10.0 |
SRD 14 MG | 14 | S | 10.0 |
SRD 15 MG | 15 | L | 10.0 |
SRD 16 MG | 16 | S | 10.5 |
SRD 18 MG | 18 | L | 10.0 |
SRD 20 MG | 20 | S | 12.5 |
SRD 22 MG | 22 | L | 10.5 |
SRD 25 MG | 25 | S | 12.5 |
SRD 28 MG | 28 | L | 10.5 |
SRD 30 MG | 30 | S | 13.0 |
SRD 35 MG | 35 | L | 13.0 |
SRD 38 MG | 38 | S | 13.5 |
SRD 42 MG | 42 | L | 13.0 |
