Модель

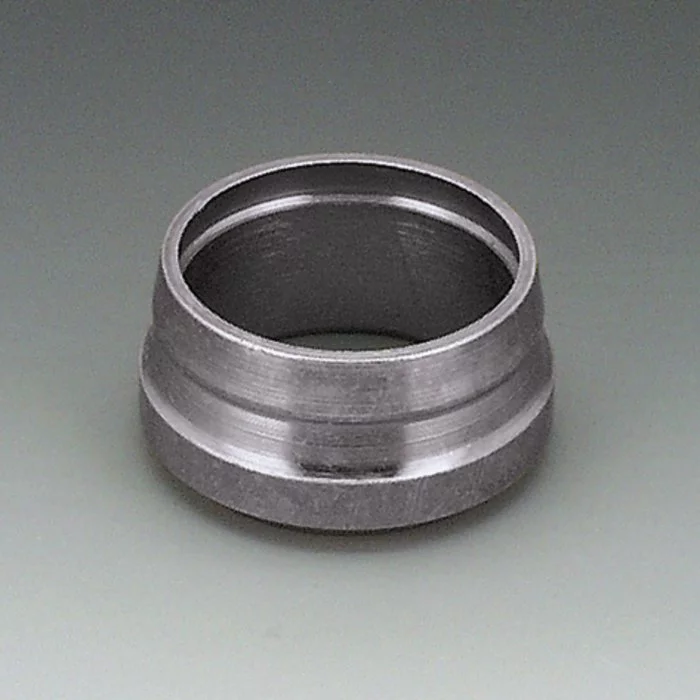

Режущее кольцо
_____
DIN 3861 форма B
Материал
Сталь
Защита поверхности
Гальваническое покрытие

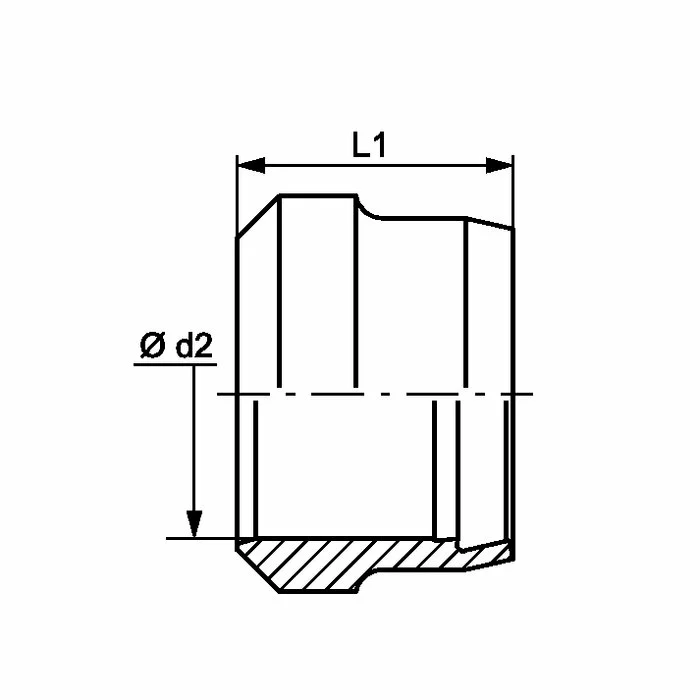

Наименование | Ø d2 mm |
Серия | L1 mm |
---|---|---|---|
SRD 04 LL | 4 | LL | 6.0 |
SRD 05 LL | 5 | LL | 7.0 |
SRD 06 LL | 6 | LL | 7.0 |
SRD 08 LL | 8 | LL | 7.0 |
SRD 10 LL | 10 | LL | 7.0 |
SRD 12 LL | 12 | LL | 7.5 |
SRD 16 LL | 16 | LL | 9.0 |
SRD 06 | 6 | LS | 9.5 |
SRD 08 | 8 | LS | 9.5 |
SRD 10 | 10 | LS | 10.0 |
SRD 12 | 12 | LS | 10.0 |
SRD 14 | 14 | S | 10.5 |
SRD 15 | 15 | L | 10.0 |
SRD 16 | 16 | S | 10.5 |
SRD 18 | 18 | L | 10.0 |
SRD 20 | 20 | S | 12.5 |
SRD 22 | 22 | L | 11.5 |
SRD 25 | 25 | S | 12.5 |
SRD 28 | 28 | L | 11.5 |
SRD 30 | 30 | S | 13.5 |
SRD 35 | 35 | L | 13.5 |
SRD 38 | 38 | S | 13.5 |
SRD 42 | 42 | L | 13.5 |
SRD 65 | 65 | L | 21.2 |
