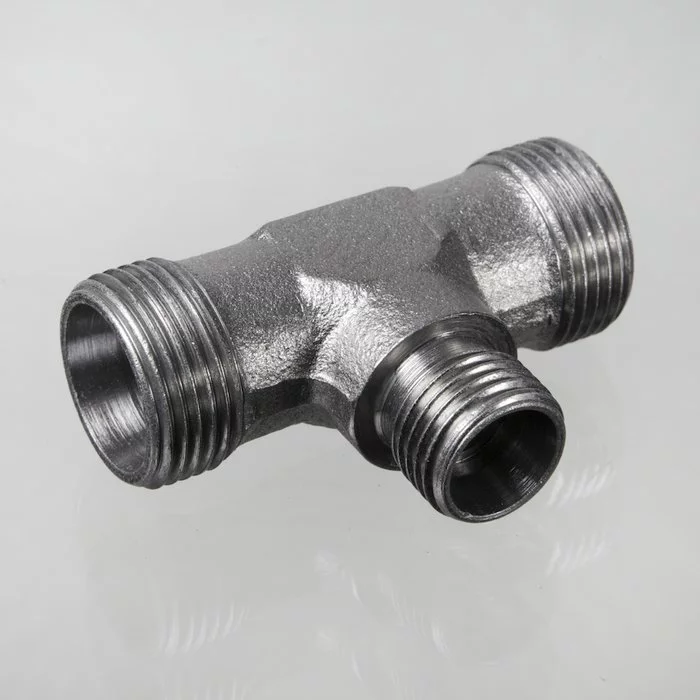

Редукционное резьбовое соединение, T-образное - XRT
Код товара: 678885233
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Соединение 1 - 3
Метрическая наружная резьба, цилиндрическая
Форма уплотнения 1 - 3
Внутренний конус 24°
Модель
Редукционное резьбовое соединение
Конструкция
T-образная форма
_____
ISO 8434-1
Комплект поставки
Штуцер (без накидной гайки и режущего кольца)
Материал
Сталь
Защита поверхности
Гальваническое покрытие
Изделие

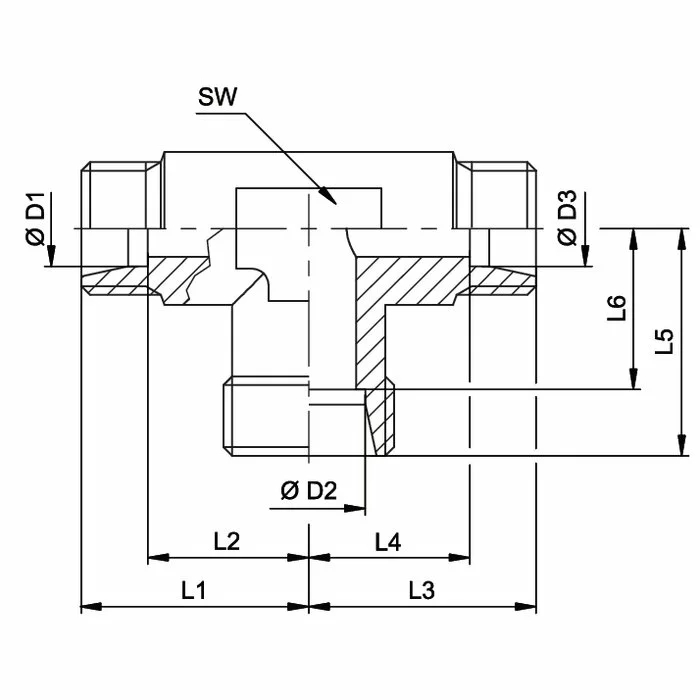

| Наименование | Серия | Рабочее давление, бар | D1 mm |
D2 mm |
D3 mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L5 mm |
L6 mm |
SW mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XRT 04 08 04 LL | LL | PN 100 | 4 | 8 | 4 | 17.0 | 13.0 | 17.0 | 13.0 | 17.0 | 11.5 | 12 |
| XRT 06 04 06 LL | LL | PN 100 | 6 | 4 | 6 | 15.0 | 9.5 | 15.0 | 9.5 | 15.0 | 11.0 | 11 |
| XRT NW 04 06 04 HL | L | PN 315 | 6 | 8 | 6 | 21.0 | 14.0 | 21.0 | 14.0 | 21.0 | 14.0 | 12 |
| XRT NW 04 08 04 HL | L | PN 315 | 6 | 10 | 6 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 14 |
| XRT NW 06 04 06 HL | L | PN 315 | 8 | 6 | 8 | 29.0 | 14.0 | 21.0 | 14.0 | 21.0 | 21.0 | 12 |
| XRT NW 06 06 04 HL | L | PN 315 | 8 | 8 | 6 | 21.0 | 14.0 | 21.0 | 14.0 | 21.0 | 14.0 | 14 |
| XRT NW 06 08 06 HL | L | PN 315 | 8 | 10 | 8 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 14 |
| XRT NW 06 10 06 HL | L | PN 315 | 8 | 12 | 8 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 06 13 06 HL | L | PN 315 | 8 | 15 | 8 | 21.0 | 14.0 | 21.0 | 14.0 | 21.0 | 14.0 | 19 |
| XRT NW 08 04 08 HL | L | PN 315 | 10 | 6 | 10 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 14 |
| XRT NW 08 06 06 HL | L | PN 315 | 10 | 8 | 8 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 17 |
| XRT NW 08 06 08 HL | L | PN 315 | 10 | 8 | 10 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 14 |
| XRT NW 08 08 04 HL | L | PN 315 | 10 | 10 | 6 | 22.0 | 15.0 | 22.0 | 15.0 | 22.0 | 15.0 | 14 |
| XRT NW 08 10 08 HL | L | PN 315 | 10 | 12 | 10 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 19 |
| XRT NW 08 13 08 HL | L | PN 315 | 10 | 15 | 10 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 10 04 10 HL | L | PN 315 | 12 | 6 | 12 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 06 06 HL | L | PN 315 | 12 | 8 | 8 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 06 10 HL | L | PN 315 | 12 | 8 | 12 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 08 08 HL | L | PN 315 | 12 | 10 | 10 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 08 10 HL | L | PN 315 | 12 | 10 | 12 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 10 06 HL | L | PN 315 | 12 | 12 | 8 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 19 |
| XRT NW 10 10 08 HL | L | PN 315 | 12 | 12 | 10 | 24.0 | 17.0 | 24.0 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 10 13 10 HL | L | PN 315 | 12 | 15 | 12 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 10 16 10 HL | L | PN 315 | 12 | 18 | 12 | 31.0 | 24.0 | 31.0 | 24.0 | 31.0 | 23.5 | 24 |
| XRT NW 10 20 10 HL | L | PN 160 | 12 | 22 | 12 | 35.0 | 28.0 | 35.0 | 28.0 | 35.0 | 27.5 | 27 |
| XRT NW 13 04 13 HL | L | PN 315 | 15 | 6 | 15 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 06 06 HL | L | PN 315 | 15 | 8 | 8 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 06 13 HL | L | PN 315 | 15 | 8 | 15 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 08 06 HL | L | PN 315 | 15 | 10 | 8 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 08 08 HL | L | PN 315 | 15 | 10 | 10 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 08 13 HL | L | PN 315 | 15 | 10 | 15 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 10 10 HL | L | PN 315 | 15 | 12 | 12 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 10 13 HL | L | PN 315 | 15 | 12 | 15 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 13 08 HL | L | PN 315 | 15 | 15 | 10 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 13 10 HL | L | PN 315 | 15 | 15 | 12 | 28.0 | 21.0 | 28.0 | 21.0 | 28.0 | 21.0 | 19 |
| XRT NW 13 16 13 HL | L | PN 315 | 15 | 18 | 15 | 31.0 | 24.0 | 31.0 | 24.0 | 31.0 | 23.5 | 24 |
| XRT NW 13 20 10 HL | L | PN 160 | 15 | 22 | 12 | 35.0 | 28.0 | 35.0 | 28.0 | 35.0 | 27.5 | 27 |
| XRT NW 16 06 06 HL | L | PN 315 | 18 | 8 | 8 | 31.5 | 24.0 | 31.0 | 24.0 | 30.5 | 23.5 | 24 |
| XRT NW 16 06 16 HL | L | PN 315 | 18 | 8 | 18 | 31.0 | 23.5 | 31.0 | 23.5 | 31.0 | 24.0 | 24 |
| XRT NW 16 08 08 HL | L | PN 315 | 18 | 10 | 10 | 31.0 | 23.5 | 31.0 | 24.0 | 31.0 | 24.0 | 24 |
| XRT NW 16 08 16 HL | L | PN 315 | 18 | 10 | 18 | 31.0 | 23.5 | 31.0 | 23.5 | 31.0 | 24.0 | 24 |
| XRT NW 16 10 10 HL | L | PN 315 | 18 | 12 | 12 | 31.0 | 23.5 | 31.0 | 24.0 | 31.0 | 24.0 | 24 |
| XRT NW 16 10 16 HL | L | PN 315 | 18 | 12 | 18 | 31.0 | 23.5 | 31.0 | 23.5 | 31.0 | 24.0 | 24 |
| XRT NW 16 13 16 HL | L | PN 315 | 18 | 15 | 18 | 31.0 | 23.5 | 31.0 | 23.5 | 31.0 | 24.0 | 24 |
| XRT NW 16 16 06 HL | L | PN 315 | 18 | 18 | 8 | 31.0 | 23.5 | 30.5 | 23.5 | 31.0 | 23.5 | 24 |
| XRT NW 16 16 08 HL | L | PN 315 | 18 | 18 | 10 | 31.0 | 23.5 | 31.0 | 24.0 | 31.0 | 23.5 | 24 |
| XRT NW 16 16 10 HL | L | PN 315 | 18 | 18 | 12 | 31.0 | 23.5 | 30.5 | 23.5 | 31.5 | 24.0 | 24 |
| XRT NW 20 08 20 HL | L | PN 160 | 22 | 10 | 22 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 28.0 | 27 |
| XRT NW 20 10 20 HL | L | PN 160 | 22 | 12 | 22 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 28.0 | 27 |
| XRT NW 20 13 13 HL | L | PN 160 | 22 | 15 | 15 | 35.0 | 27.5 | 35.0 | 28.0 | 35.0 | 28.0 | 27 |
| XRT NW 20 13 20 HL | L | PN 160 | 22 | 15 | 22 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 28.0 | 27 |
| XRT NW 20 16 16 HL | L | PN 160 | 22 | 18 | 18 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 27.5 | 27 |
| XRT NW 20 16 20 HL | L | PN 160 | 22 | 18 | 22 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 27.5 | 27 |
| XRT NW 20 20 16 HL | L | PN 160 | 22 | 22 | 18 | 35.0 | 27.5 | 35.0 | 27.5 | 35.0 | 27.5 | 27 |
| XRT NW 20 25 20 HL | L | PN 160 | 22 | 28 | 22 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 30.5 | 36 |
| XRT NW 25 08 25 HL | L | PN 160 | 28 | 10 | 28 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 31.0 | 36 |
| XRT NW 25 10 25 HL | L | PN 160 | 28 | 12 | 28 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 31.0 | 36 |
| XRT NW 25 13 25 HL | L | PN 160 | 28 | 15 | 28 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 31.0 | 36 |
| XRT NW 25 16 25 HL | L | PN 160 | 28 | 18 | 28 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 30.5 | 36 |
| XRT NW 25 20 20 HL | L | PN 160 | 28 | 22 | 22 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 30.5 | 36 |
| XRT NW 25 20 25 HL | L | PN 160 | 28 | 22 | 28 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 30.5 | 36 |
| XRT NW 25 25 20 HL | L | PN 160 | 28 | 28 | 22 | 38.0 | 30.5 | 38.0 | 30.5 | 38.0 | 30.5 | 36 |
| XRT NW 32 20 32 HL | L | PN 160 | 35 | 22 | 35 | 45.0 | 34.5 | 45.0 | 34.5 | 45.0 | 37.5 | 41 |
| XRT NW 32 25 25 HL | L | PN 160 | 35 | 28 | 28 | 45.0 | 34.5 | 45.0 | 37.5 | 45.0 | 37.5 | 41 |
| XRT NW 32 25 32 HL | L | PN 160 | 35 | 28 | 35 | 45.0 | 34.5 | 45.0 | 34.5 | 45.0 | 37.5 | 41 |
| XRT NW 16 HL 16 HS | LS | PN 315 | 20 | 18 | 20 | 37.0 | 26.5 | 37.0 | 26.5 | 37.0 | 29.5 | 27 |
| XRT NW 04 03 04 HS | S | PN 630 | 8 | 6 | 8 | 20.0 | 13.0 | 19.0 | 12.0 | 20.0 | 13.0 | 12 |
| XRT NW 06 03 06 HS | S | PN 630 | 10 | 6 | 10 | 25.0 | 17.5 | 25.0 | 17.5 | 25.0 | 18.0 | 17 |
| XRT NW 08 03 08 HS | S | PN 630 | 12 | 6 | 12 | 24.5 | 17.0 | 24.5 | 17.0 | 24.0 | 17.0 | 17 |
| XRT NW 08 04 04 HS | S | PN 630 | 12 | 8 | 8 | 29.0 | 21.5 | 29.0 | 22.0 | 29.0 | 22.0 | 17 |
| XRT NW 08 04 08 HS | S | PN 630 | 12 | 8 | 12 | 29.0 | 21.5 | 29.0 | 21.5 | 29.0 | 22.0 | 17 |
| XRT NW 08 06 08 HS | S | PN 630 | 12 | 10 | 12 | 29.0 | 21.5 | 29.0 | 21.5 | 29.0 | 21.5 | 17 |
| XRT NW 08 13 08 HS | S | PN 630 | 12 | 16 | 12 | 33.0 | 25.5 | 33.0 | 25.5 | 33.0 | 24.5 | 24 |
| XRT NW 10 06 10 HS | S | PN 630 | 14 | 10 | 14 | 30.0 | 22.0 | 30.0 | 22.0 | 30.0 | 22.5 | 19 |
| XRT NW 13 03 13 HS | S | PN 400 | 16 | 6 | 16 | 33.0 | 24.5 | 33.0 | 24.5 | 33.0 | 26.0 | 24 |
| XRT NW 13 04 13 HS | S | PN 400 | 16 | 8 | 16 | 33.0 | 24.5 | 33.0 | 24.5 | 33.0 | 26.0 | 24 |
| XRT NW 13 06 13 HS | S | PN 400 | 16 | 10 | 16 | 33.0 | 24.5 | 33.0 | 24.5 | 33.0 | 25.5 | 24 |
| XRT NW 13 08 13 HS | S | PN 400 | 16 | 12 | 16 | 33.0 | 24.5 | 33.0 | 24.5 | 33.0 | 25.5 | 24 |
| XRT NW 13 16 13 HS | S | PN 400 | 16 | 20 | 16 | 37.0 | 28.5 | 37.0 | 28.5 | 37.0 | 26.5 | 27 |
| XRT NW 16 06 16 HS | S | PN 400 | 20 | 10 | 20 | 37.0 | 26.5 | 37.0 | 26.5 | 37.0 | 29.5 | 27 |
| XRT NW 16 08 16 HS | S | PN 400 | 20 | 12 | 20 | 37.0 | 26.5 | 37.0 | 26.5 | 37.0 | 29.5 | 27 |
| XRT NW 16 10 16 HS | S | PN 400 | 20 | 14 | 20 | 37.0 | 26.5 | 37.0 | 26.5 | 37.5 | 29.5 | 27 |
| XRT NW 16 13 16 HS | S | PN 400 | 20 | 16 | 20 | 37.0 | 26.5 | 37.0 | 26.5 | 37.0 | 28.5 | 27 |
| XRT NW 16 16 20 HS | S | PN 400 | 20 | 20 | 25 | 39.0 | 28.5 | 40.5 | 28.5 | 37.0 | 28.5 | 36 |
| XRT NW 16 20 16 HS | S | PN 400 | 20 | 25 | 20 | 42.0 | 31.5 | 42.0 | 31.5 | 42.0 | 30.0 | 36 |
| XRT NW 20 13 20 HS | S | PN 400 | 25 | 16 | 25 | 42.0 | 30.0 | 42.0 | 30.0 | 42.0 | 33.5 | 36 |
| XRT NW 20 16 20 HS | S | PN 400 | 25 | 20 | 25 | 42.0 | 30.0 | 42.0 | 30.0 | 42.0 | 31.5 | 36 |
| XRT NW 20 25 20 HS | S | PN 400 | 25 | 30 | 25 | 49.0 | 37.0 | 49.0 | 37.0 | 49.0 | 35.5 | 41 |
| XRT NW 25 13 25 HS | S | PN 400 | 30 | 16 | 30 | 49.0 | 35.5 | 49.0 | 35.5 | 49.0 | 40.5 | 41 |
| XRT NW 25 16 25 HS | S | PN 400 | 30 | 20 | 30 | 49.0 | 35.5 | 49.0 | 35.5 | 49.0 | 38.5 | 41 |
| XRT NW 25 20 25 HS | S | PN 400 | 30 | 25 | 30 | 49.0 | 35.5 | 49.0 | 35.5 | 49.0 | 37.0 | 41 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
