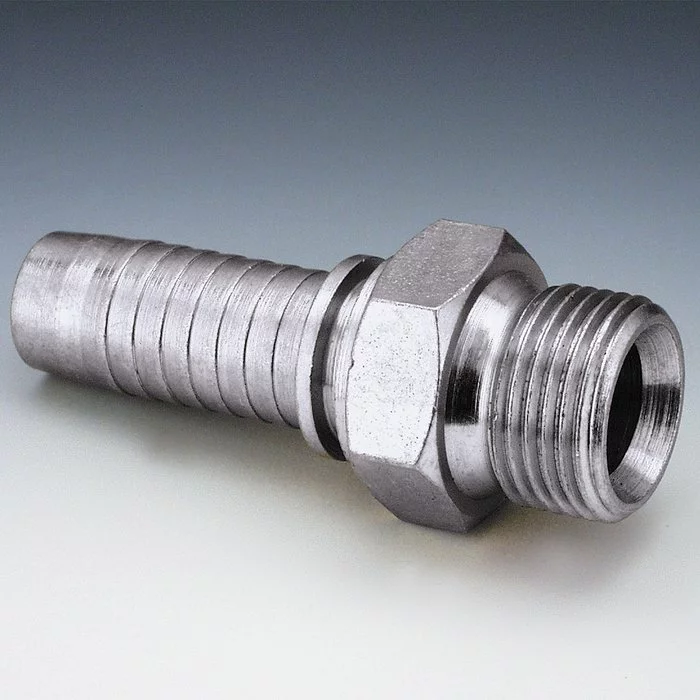

Пресс-ниппель, AGR - PN HB
Код товара: 678816710
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Область применения
Пресс-ниппель для шлангов от HD 100 до HD 400, KP-, TE
Соединение 1
Наружная резьба BSP, цилиндрическая
Форма уплотнения 1
Внутренний конус 60°
_____
ISO 8434-6
BS 5200
Сокращение
AGR
Материал
Сталь
Защита поверхности
Гальваническое покрытие
Изделие

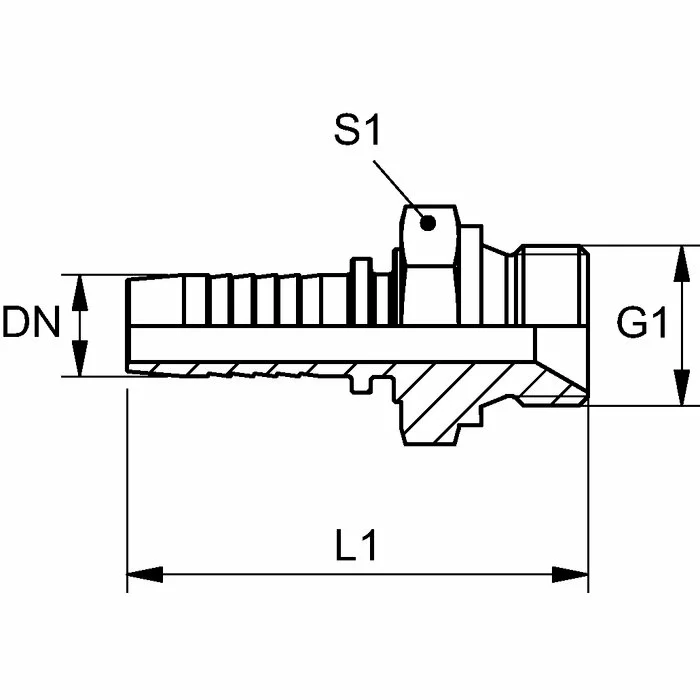

| Наименование | DN | Размер | Дюймы | Рабочее давление bar |
G1 | L1 mm |
S1 |
|---|---|---|---|---|---|---|---|
| PN 04 HB | 5 | 3 | 3/16" | 350.0 | G 1/8" -28 | 42.5 | 14 |
| PN 04 HB 06 | 5 | 3 | 3/16" | 350.0 | G 1/4" -19 | 46.0 | 19 |
| PN 06 HB 02 | 6 | 4 | 1/4" | 350.0 | G 1/8" -28 | 48.5 | 14 |
| PN 06 HB | 6 | 4 | 1/4" | 400.0 | G 1/4" -19 | 52.0 | 19 |
| PN 06 HB 10 | 6 | 4 | 1/4" | 400.0 | G 3/8" -19 | 54.0 | 22 |
| PN 06 HB 13 | 6 | 4 | 1/4" | 350.0 | G 1/2" -14 | 57.5 | 27 |
| PN 08 HB 06 | 8 | 5 | 5/16" | 400.0 | G 1/4" -19 | 52.0 | 19 |
| PN 08 HB 10 | 8 | 5 | 5/16" | 400.0 | G 3/8" -19 | 54.0 | 22 |
| PN 08 HB 13 | 8 | 5 | 5/16" | 350.0 | G 1/2" -14 | 57.5 | 27 |
| PN 10 HB 02 | 10 | 6 | 3/8" | 350.0 | G 1/8" -28 | 50.0 | 17 |
| PN 10 HB 06 | 10 | 6 | 3/8" | 400.0 | G 1/4" -19 | 53.5 | 19 |
| PN 10 HB | 10 | 6 | 3/8" | 400.0 | G 3/8" -19 | 55.5 | 22 |
| PN 10 HB 13 | 10 | 6 | 3/8" | 350.0 | G 1/2" -14 | 59.5 | 27 |
| PN 13 HB 10 | 12 | 8 | 1/2" | 350.0 | G 3/8" -19 | 56.5 | 22 |
| PN 13 HB | 12 | 8 | 1/2" | 350.0 | G 1/2" -14 | 60.5 | 27 |
| PN 13 HB 16 | 12 | 8 | 1/2" | 350.0 | G 5/8" -14 | 62.5 | 30 |
| PN 13 HB 20 | 12 | 8 | 1/2" | 250.0 | G 3/4" -14 | 62.5 | 32 |
| PN 16 HB 13 | 16 | 10 | 5/8" | 350.0 | G 1/2" -14 | 65.0 | 27 |
| PN 16 HB | 16 | 10 | 5/8" | 35.0 | G 5/8" -14 | 67.0 | 30 |
| PN 16 HB 20 | 16 | 10 | 5/8" | 315.0 | G 3/4" -14 | 67.0 | 32 |
| PN 20 HB | 19 | 12 | 3/4" | 315.0 | G 3/4" -14 | 73.5 | 32 |
| PN 20 HB 25 | 19 | 12 | 3/4" | 250.0 | G 1" -11 | 78.5 | 41 |
| PN 25 HB | 25 | 16 | 1" | 250.0 | G 1" -11 | 86.5 | 41 |
| PN 25 HB 32 | 25 | 16 | 1" | 250.0 | G 1.1/4" -11 | 87.5 | 50 |
| PN 32 HB | 31 | 20 | 1.1/4" | 250.0 | G 1.1/4" -11 | 97.0 | 50 |
| PN 32 HB 40 | 31 | 20 | 1.1/4" | 210.0 | G 1.1/2" -11 | 100.0 | 55 |
| PN 40 HB 32 | 38 | 24 | 1.1/2" | 210.0 | G 1.1/4" -11 | 100.5 | 50 |
| PN 40 HB | 38 | 24 | 1.1/2" | 210.0 | G 1.1/2" -11 | 103.5 | 55 |
| PN 40 HB 50 | 38 | 24 | 1.1/2" | 210.0 | G 2" -11 | 109.0 | 70 |
| PN 50 HB | 51 | 32 | 2" | 210.0 | G 2" -11 | 124.5 | 70 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
