Поршневое уплотнение, RSE - RSE
Код товара: 678852312
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Модель
U-образное уплотнение для поршня
Рабочее давление
до 400 бар
Скорость скольжения макс.
0.5 m/s
Температура min.
-30 °C
Температура макс.
80 °C

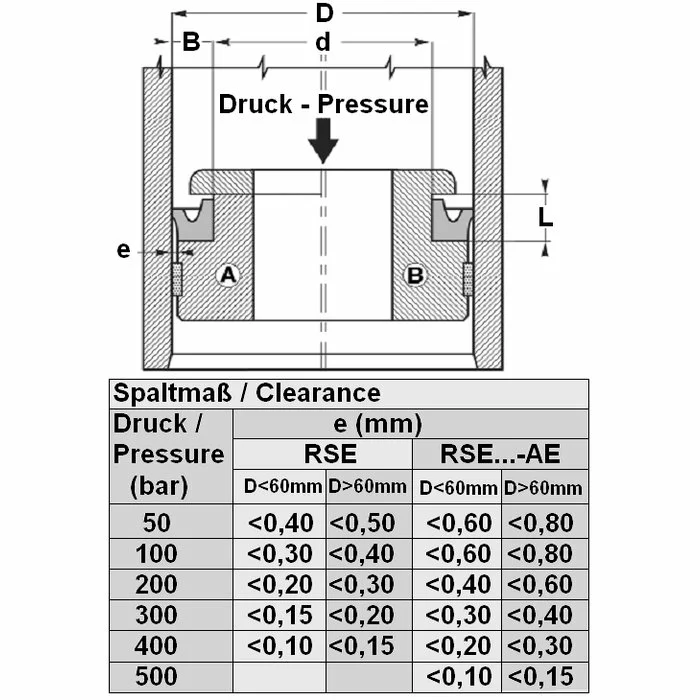

Монтаж
на моноблочных поршнях А
на многоблочных поршнях В
Рабочие среды
Минеральное масло
Материал
(2) уплотнение: Полиуретан
Применение
Гидравлика
Описание
высокая стойкость к истиранию
хорошая герметичность
Простое решение.
Изделие

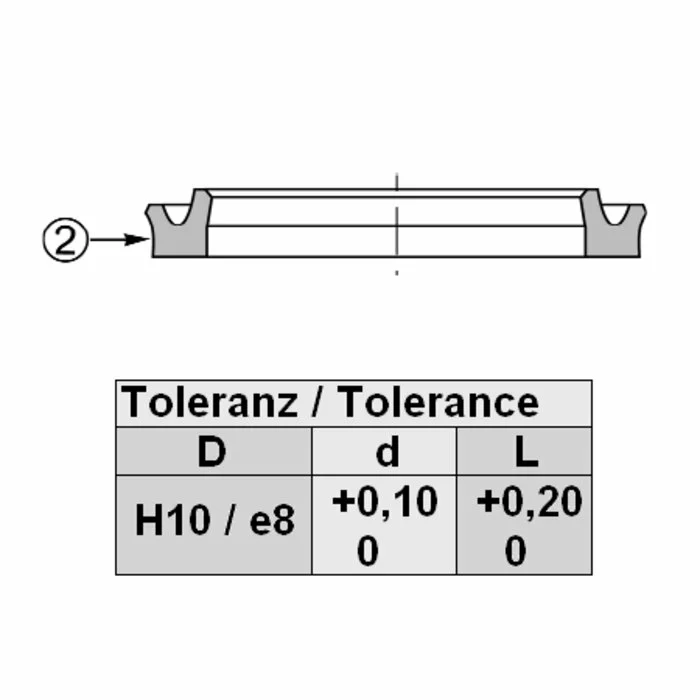

| Наименование | D mm |
d mm |
L mm |
M mm |
Скорость скольжения макс. m/s |
|---|---|---|---|---|---|
| RSE 12 05 | 12.0 | 5.0 | 6.0 | 8 | - |
| RSE 14 08 | 14.0 | 8.0 | 6.8 | 11 | - |
| RSE 16 10-1 | 16.0 | 10.0 | 6.5 | 13 | - |
| RSE 16 10 | 16.0 | 10.0 | 9.0 | 13 | - |
| RSE 20 12 | 20.0 | 12.0 | 7.5 | 15 | - |
| RSE 20 14 | 20.0 | 14.0 | 6.0 | 17 | 0.5 |
| RSE 22 12 | 22.0 | 12.0 | 9.0 | 16 | - |
| RSE 25 15 | 25.0 | 15.0 | 9.0 | 19 | - |
| RSE 30 15 | 30.0 | 15.0 | 11.0 | 19 | - |
| RSE 30 20 | 30.0 | 20.0 | 9.0 | 24 | - |
| RSE 30 22 | 30.0 | 22.0 | 7.0 | 25 | - |
| RSE 32 22 | 32.0 | 22.0 | 11.0 | 26 | - |
| RSE 32 26 | 32.0 | 26.0 | 6.0 | 28 | - |
| RSE 35 20 | 35.0 | 20.0 | 11.0 | 25 | - |
| RSE 35 25 | 35.0 | 25.0 | 9.0 | 29 | - |
| RSE 37 21 | 37.0 | 21.0 | 13.0 | 25 | - |
| RSE 40 25-1 | 40.0 | 25.0 | 10.0 | 30 | - |
| RSE 40 25 | 40.0 | 25.0 | 11.0 | 30 | - |
| RSE 40 30-1 | 40.0 | 30.0 | 7.5 | 34 | - |
| RSE 40 30 | 40.0 | 30.0 | 11.0 | 34 | - |
| RSE 40 32-2 | 40.0 | 32.0 | 6.5 | 36 | - |
| RSE 40 32 | 40.0 | 32.0 | 9.0 | 36 | - |
| RSE 40 33 | 40.0 | 33.0 | 9.0 | 36 | - |
| RSE 42 32 | 42.0 | 32.0 | 11.0 | 36 | - |
| RSE 42 35 | 42.0 | 34.5 | 4.7 | 37 | 0.5 |
| RSE 45 29 | 45.0 | 38.5 | 13.0 | 33 | - |
| RSE 45 30 | 45.0 | 30.0 | 11.0 | 35 | - |
| RSE 50 30 | 50.0 | 30.0 | 13.0 | 35 | - |
| RSE 50 32 | 50.0 | 32.0 | 11.0 | 35 | - |
| RSE 50 35-1 | 50.0 | 35.0 | 9.5 | 40 | - |
| RSE 50 35 | 50.0 | 35.0 | 11.0 | 40 | - |
| RSE 50 40-1 | 50.0 | 40.0 | 5.5 | 44 | - |
| RSE 50 40 | 50.0 | 40.0 | 11.0 | 44 | - |
| RSE 50 42-2 | 50.0 | 42.0 | 6.0 | 45 | - |
| RSE 50 42-1 | 50.0 | 42.0 | 9.0 | 45 | - |
| RSE 50 42 | 50.0 | 42.0 | 11.0 | 45 | - |
| RSE 51 41 | 50.8 | 40.8 | 8.0 | 45 | - |
| RSE 55 40 | 55.0 | 40.0 | 11.0 | 45 | - |
| RSE 60 40 | 60.0 | 40.0 | 13.0 | 45 | - |
| RSE 60 40-1 | 60.0 | 40.0 | 14.5 | 45 | - |
| RSE 60 45 | 60.0 | 45.0 | 11.0 | 50 | - |
| RSE 60 50 | 60.0 | 50.0 | 8.0 | 54 | - |
| RSE 60 50-2 | 60.0 | 50.0 | 11.0 | 54 | - |
| RSE 60 52 | 60.0 | 52.0 | 9.0 | 55 | 0.5 |
| RSE 63 43 | 63.0 | 43.0 | 13.0 | 47 | - |
| RSE 63 45 | 63.0 | 45.0 | 11.0 | 50 | - |
| RSE 63 45-2 | 63.0 | 45.0 | 13.0 | 50 | - |
| RSE 63 48-1 | 63.0 | 48.0 | 11.0 | 53 | - |
| RSE 63 48 | 63.0 | 48.0 | 13.0 | 53 | - |
| RSE 63 53 | 63.0 | 53.0 | 8.0 | 57 | - |
| RSE 63 53-1 | 63.0 | 53.0 | 13.0 | 57 | - |
| RSE 65 45-1 | 65.0 | 45.0 | 13.0 | 50 | - |
| RSE 65 45 | 65.0 | 45.0 | 14.5 | 50 | - |
| RSE 65 50 | 65.0 | 50.0 | 11.0 | 55 | - |
| RSE 65 55-1 | 65.0 | 55.0 | 11.0 | 59 | - |
| RSE 65 55 | 65.0 | 55.0 | 14.5 | 59 | 0.5 |
| RSE 70 50 | 70.0 | 53.0 | 13.0 | 55 | - |
| RSE 70 50-1 | 70.0 | 53.0 | 14.5 | 55 | - |
| RSE 70 55-1 | 70.0 | 55.0 | 10.5 | 60 | - |
| RSE 70 55 | 70.0 | 55.0 | 13.0 | 60 | - |
| RSE 70 60 | 70.0 | 60.0 | 8.0 | 64 | - |
| RSE 70 60-1 | 70.0 | 60.0 | 13.0 | 64 | - |
| RSE 70 60-2 | 70.0 | 60.0 | 14.5 | 64 | - |
| RSE 70 62 | 70.0 | 62.0 | 8.5 | 65 | - |
| RSE 72 58 | 72.0 | 58.0 | 13.0 | 62 | - |
| RSE 75 50 | 75.0 | 50.0 | 15.0 | 55 | 0.5 |
| RSE 75 55 | 75.0 | 55.0 | 14.5 | 60 | - |
| RSE 75 65-4 | 75.0 | 65.0 | 8.0 | 69 | - |
| RSE 75 65-2 | 75.0 | 65.0 | 11.0 | 69 | - |
| RSE 75 65 | 75.0 | 65.0 | 14.5 | 69 | - |
| RSE 80 60 | 80.0 | 60.0 | 13.0 | 65 | - |
| RSE 80 60-1 | 80.0 | 60.0 | 14.5 | 65 | - |
| RSE 80 65 | 80.0 | 65.0 | 13.0 | 70 | - |
| RSE 80 70 | 80.0 | 70.0 | 8.0 | 74 | - |
| RSE 80 70-1 | 80.0 | 70.0 | 13.0 | 74 | - |
| RSE 80 72 | 80.0 | 72.0 | 13.0 | 75 | - |
| RSE 85 65-2 | 85.0 | 65.0 | 13.0 | 70 | - |
| RSE 90 70 | 90.0 | 70.0 | 13.0 | 75 | - |
| RSE 90 70-1 | 90.0 | 70.0 | 14.5 | 75 | - |
| RSE 90 75 | 90.0 | 75.0 | 13.0 | 80 | - |
| RSE 90 80-2 | 90.0 | 80.0 | 5.5 | 84 | - |
| RSE 90 80-1 | 90.0 | 80.0 | 11.0 | 84 | - |
| RSE 90 80 | 90.0 | 80.0 | 14.0 | 84 | - |
| RSE 100 80-2 | 100.0 | 80.0 | 11.0 | 85 | - |
| RSE 100 80 | 100.0 | 80.0 | 13.0 | 85 | - |
| RSE 100 80-1 | 100.0 | 80.0 | 14.5 | 85 | - |
| RSE 100 85 | 100.0 | 85.0 | 13.0 | 90 | - |
| RSE 100 86 | 100.0 | 86.0 | 13.0 | 90 | - |
| RSE 100 90 | 100.0 | 90.0 | 8.0 | 94 | - |
| RSE 100 90-1 | 100.0 | 90.0 | 11.5 | 94 | - |
| RSE 110 90 | 110.0 | 90.0 | 13.0 | 95 | - |
| RSE 110 95 | 110.0 | 95.0 | 13.0 | 100 | - |
| RSE 110 100 | 110.0 | 100.0 | 8.0 | 104 | - |
| RSE 110 100-1 | 110.0 | 100.0 | 14.5 | 104 | 0.5 |
| RSE 115 100 | 115.0 | 100.0 | 11.5 | 105 | - |
| RSE 115 105 | 115.0 | 105.0 | 14.5 | 109 | - |
| RSE 120 100 | 120.0 | 100.0 | 13.0 | 105 | - |
| RSE 120 100-1 | 120.0 | 100.0 | 14.5 | 105 | 0.5 |
| RSE 125 105 | 125.0 | 100.0 | 13.0 | 110 | - |
| RSE 125 105-1 | 125.0 | 100.0 | 16.0 | 110 | - |
| RSE 125 115 | 125.0 | 115.0 | 8.0 | 119 | 0.5 |
| RSE 125 115-1 | 125.0 | 115.0 | 16.0 | 119 | - |
| RSE 140 120 | 140.0 | 120.0 | 13.0 | 125 | - |
| RSE 150 125 | 150.0 | 125.0 | 14.5 | 130 | - |
| RSE 150 130 | 150.0 | 130.0 | 16.0 | 135 | - |
| RSE 160 140 | 160.0 | 140.0 | 14.5 | 145 | - |
| RSE 180 160 | 180.0 | 160.0 | 14.5 | 165 | - |
| RSE 280 250 | 280.0 | 250.0 | 19.0 | 256 | - |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
