Опорное кольцо, PBK - PBK
Код товара: 678852655
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства

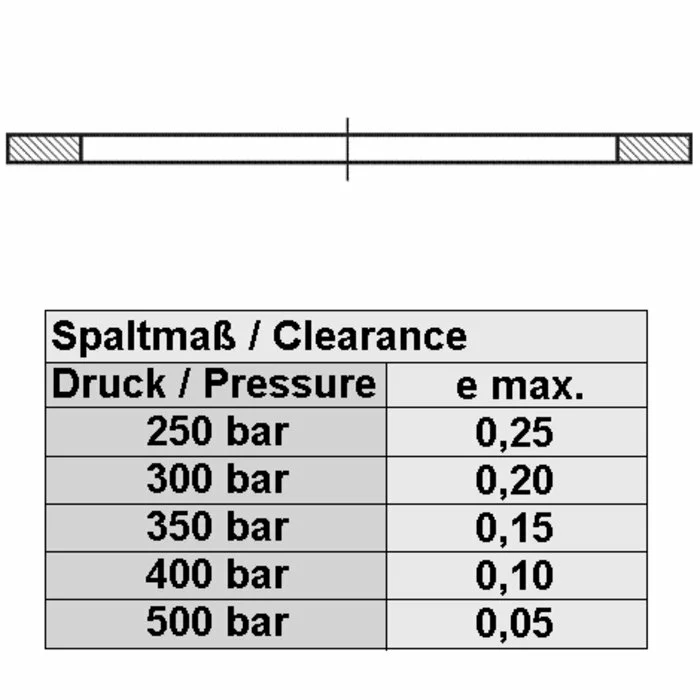

Рабочее давление
до 500 бар
Температура min.
-50 °C
Температура макс.
130 °C
Монтаж
в закрытых монтажных пространствах
Рабочие среды
Минеральное масло
Масло-водяные эмульсии, водомасляные эмульсии
Материал
PBTB (полиэфир, твердость по Шору 55 D)
Описание
простой монтаж.
кольца не нужно разрезать
выгодное решение.
Изделие

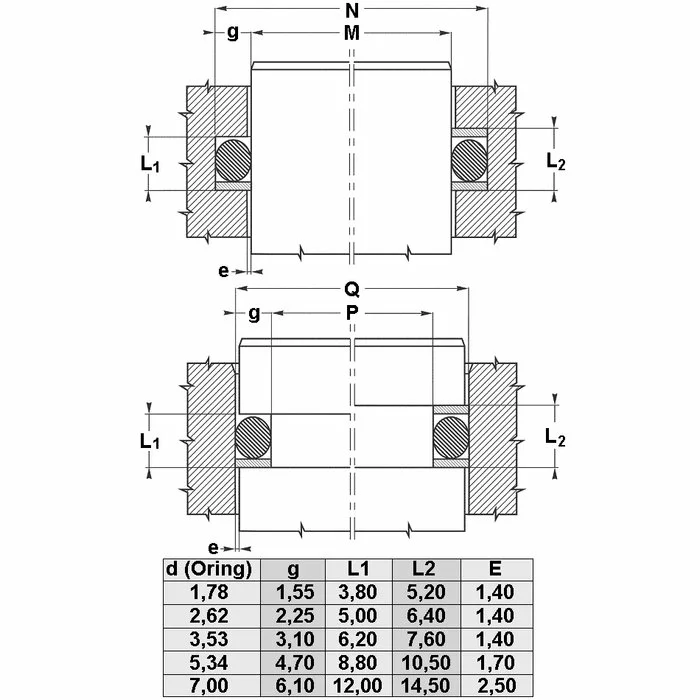

| Наименование | M mm |
N mm |
P mm |
Q mm |
Кольцо круглого сечения |
|---|---|---|---|---|---|
| PBK 010-610 | 7.0 | 10.1 | 6.9 | 10 | 6.07 x 1.78 |
| PBK 11 | 8.0 | 11.1 | 7.9 | 11 | 7.65 x 1.78 |
| PBK 611 | 9.0 | 12.1 | 8.9 | 12 | 8.73 x 1.78 |
| PBK 12 | 9.0 | 12.1 | 9.9 | 13 | 9.25 x 1.78 |
| PBK 109 | 9.0 | 13.5 | 9.5 | 14 | 7.60 x 2.62 |
| PBK 110-613 | 10.0 | 14.5 | 10.5 | 15 | 9.19 x 2.62 |
| PBK 13 | 11.0 | 14.1 | 10.9 | 14 | 10.82 x 1.78 |
| PBK 111 | 11.0 | 15.5 | 11.5 | 16 | 10.77 x 2.62 |
| PBK 614 | 12.0 | 16.5 | 12.5 | 17 | 11.91 x 2.62 |
| PBK 112 | 12.5 | 17.0 | 13.5 | 18 | 12.37 x 2.62 |
| PBK 14 | 13.0 | 16.1 | 12.9 | 16 | 12.42 x 1.78 |
| PBK 15 | 14.0 | 17.1 | 14.9 | 18 | 14.00 x 1.78 |
| PBK 113 | 14.0 | 18.5 | 14.5 | 19 | 13.94 x 2.62 |
| PBK 616 | 15.0 | 19.5 | 15.5 | 20 | 15.08 x 2.62 |
| PBK 16 | 16.0 | 19.1 | 15.9 | 19 | 15.60 x 1.78 |
| PBK 114-809 | 16.0 | 20.5 | 16.5 | 21 | 15.54 x 2.62 |
| PBK 17 | 17.0 | 20.1 | 17.9 | 21 | 17.17 x 1.78 |
| PBK 115 | 17.0 | 21.5 | 17.5 | 22 | 17.12 x 2.62 |
| PBK 617 | 18.0 | 22.5 | 18.5 | 23 | 17.86 x 2.62 |
| PBK 116 | 19.0 | 23.5 | 19.5 | 24 | 18.72 x 2.62 |
| PBK 210 | 19.0 | 25.2 | 19.8 | 26 | 18.64 x 3.53 |
| PBK 117 | 20.0 | 24.5 | 20.5 | 25 | 20.30 x 2.62 |
| PBK 211 | 20.0 | 26.2 | 21.8 | 28 | 20.22 x 3.53 |
| PBK 19 | 21.0 | 24.1 | 20.9 | 24 | 20.35 x 1.78 |
| PBK 812 | 21.0 | 25.5 | 21.5 | 26 | 20.64 x 2.62 |
| PBK 20 | 22.0 | 25.1 | 22.9 | 26 | 21.95 x 1.78 |
| PBK 118-813 | 22.0 | 26.5 | 22.5 | 27 | 21.89 x 2.62 |
| PBK 212 | 22.0 | 28.2 | 22.8 | 29 | 21.82 x 3.53 |
| PBK 213 | 23.0 | 29.2 | 23.8 | 30 | 23.39 x 3.53 |
| PBK 119-814 | 24.0 | 28.5 | 24.5 | 29 | 23.47 x 2.62 |
| PBK 120 | 25.0 | 29.5 | 25.5 | 30 | 25.07 x 2.62 |
| PBK 214 | 25.0 | 31.2 | 25.8 | 32 | 24.99 x 3.53 |
| PBK 618 | 26.0 | 32.2 | 26.8 | 33 | 26.80 x 3.53 |
| PBK 121 | 27.0 | 31.5 | 27.5 | 32 | 26.64 x 2.62 |
| PBK 215 | 27.0 | 33.2 | 27.8 | 34 | 26.57 x 3.53 |
| PBK 24 | 28.0 | 31.1 | 28.9 | 32 | 28.30 x 1.78 |
| PBK 122 | 28.0 | 32.5 | 28.5 | 33 | 28.24 x 2.62 |
| PBK 216 | 28.0 | 34.2 | 28.8 | 35 | 28.17 x 3.53 |
| PBK 123 | 30.0 | 34.5 | 30.5 | 35 | 29.82 x 2.62 |
| PBK 217 | 30.0 | 36.2 | 30.8 | 37 | 29.74 x 3.53 |
| PBK 218 | 31.0 | 37.2 | 31.8 | 38 | 31.34 x 3.53 |
| PBK 26 | 32.0 | 35.1 | 31.9 | 35 | 31.47 x 1.78 |
| PBK 124 | 32.0 | 36.5 | 32.5 | 37 | 31.42 x 2.62 |
| PBK 125 | 33.0 | 37.5 | 33.5 | 38 | 32.99 x 2.62 |
| PBK 219 | 33.0 | 39.2 | 33.8 | 40 | 32.92 x 3.53 |
| PBK 126 | 35.0 | 39.5 | 35.5 | 40 | 34.59 x 2.62 |
| PBK 220 | 35.0 | 41.2 | 35.8 | 42 | 34.52 x 3.53 |
| PBK 127 | 36.0 | 40.5 | 36.5 | 41 | 36.17 x 2.62 |
| PBK 221 | 36.0 | 42.2 | 36.8 | 43 | 36.09 x 3.53 |
| PBK 29 | 38.0 | 41.1 | 37.9 | 41 | 37.82 x 1.78 |
| PBK 128 | 38.0 | 42.5 | 38.5 | 43 | 37.77 x 2.62 |
| PBK 222 | 38.0 | 44.2 | 38.8 | 45 | 37.69 x 3.53 |
| PBK 325 | 38.0 | 47.4 | 38.6 | 48 | 37.47 x 5.34 |
| PBK 129 | 40.0 | 44.5 | 40.5 | 45 | 39.34 x 2.62 |
| PBK 824 | 40.0 | 46.2 | 39.8 | 46 | 39.70 x 3.53 |
| PBK 30 | 41.0 | 44.1 | 41.9 | 45 | 41.00 x 1.78 |
| PBK 130 | 41.0 | 45.5 | 41.5 | 46 | 40.94 x 2.62 |
| PBK 326 | 41.0 | 50.4 | 42.6 | 52 | 40.64 x 5.34 |
| PBK 223-825 | 42.0 | 48.2 | 41.8 | 48 | 40.87 x 3.53 |
| PBK 131 | 43.0 | 47.5 | 43.5 | 48 | 42.52 x 2.62 |
| PBK 826 | 43.0 | 49.2 | 43.8 | 50 | 42.86 x 3.53 |
| PBK 132 | 44.0 | 48.5 | 44.5 | 49 | 44.12 x 2.62 |
| PBK 327 | 44.0 | 53.4 | 45.6 | 55 | 43.82 x 5.34 |
| PBK 224-827 | 45.0 | 51.2 | 44.8 | 51 | 44.04 x 3.53 |
| PBK 133 | 46.0 | 50.5 | 46.5 | 51 | 45.69 x 2.62 |
| PBK 828 | 46.0 | 52.2 | 46.8 | 53 | 46.04 x 3.53 |
| PBK 328 | 47.0 | 56.4 | 48.6 | 58 | 46.99 x 5.34 |
| PBK 32 | 48.0 | 51.1 | 47.9 | 51 | 47.35 x 1.78 |
| PBK 134 | 48.0 | 52.5 | 48.5 | 53 | 47.29 x 2.62 |
| PBK 225-829 | 48.0 | 54.2 | 47.8 | 54 | 47.22 x 3.53 |
| PBK 135 | 49.0 | 53.5 | 48.5 | 54 | 48.90 x 2.62 |
| PBK 830 | 49.0 | 55.2 | 49.8 | 56 | 49.20 x 3.53 |
| PBK 329 | 50.0 | 59.4 | 51.6 | 61 | 50.17 x 5.34 |
| PBK 136 | 51.0 | 55.5 | 51.5 | 56 | 50.47 x 2.62 |
| PBK 226-831 | 51.0 | 57.2 | 51.8 | 58 | 50.39 x 3.53 |
| PBK 137 | 52.0 | 56.5 | 52.5 | 57 | 52.07 x 2.62 |
| PBK 832 | 52.0 | 58.2 | 53.8 | 60 | 52.40 x 3.53 |
| PBK 330 | 53.0 | 62.4 | 54.6 | 64 | 53.34 x 5.34 |
| PBK 138 | 54.0 | 58.5 | 54.5 | 59 | 53.64 x 2.62 |
| PBK 227-833 | 54.0 | 60.2 | 54.8 | 61 | 53.57 x 3.53 |
| PBK 139 | 55.0 | 59.5 | 56.5 | 61 | 55.25 x 2.62 |
| PBK 834 | 56.0 | 62.2 | 55.8 | 62 | 55.56 x 3.53 |
| PBK 140 | 57.0 | 61.5 | 57.5 | 62 | 56.82 x 2.62 |
| PBK 228-835 | 57.0 | 63.2 | 57.8 | 64 | 56.74 x 3.53 |
| PBK 331 | 57.0 | 66.4 | 58.6 | 68 | 56.52 x 5.34 |
| PBK 141 | 59.0 | 63.5 | 59.5 | 64 | 58.42 x 2.62 |
| PBK 836 | 59.0 | 65.2 | 58.8 | 65 | 58.74 x 3.53 |
| PBK 142 | 60.0 | 64.5 | 60.5 | 65 | 59.99 x 2.62 |
| PBK 229-837 | 60.0 | 66.2 | 60.8 | 67 | 59.92 x 3.53 |
| PBK 332 | 60.0 | 69.4 | 60.6 | 70 | 59.69 x 5.34 |
| PBK 143 | 62.0 | 66.5 | 62.5 | 67 | 61.60 x 2.62 |
| PBK 838 | 62.0 | 68.2 | 62.8 | 69 | 61.90 x 3.53 |
| PBK 144 | 63.0 | 67.5 | 63.5 | 68 | 63.17 x 2.62 |
| PBK 333 | 63.0 | 72.4 | 63.6 | 73 | 62.87 x 5.34 |
| PBK 230-839 | 64.0 | 70.2 | 63.8 | 70 | 63.09 x 3.53 |
| PBK 145 | 65.0 | 69.5 | 65.5 | 70 | 64.77 x 2.62 |
| PBK 840 | 65.0 | 71.2 | 65.8 | 72 | 65.10 x 3.53 |
| PBK 334 | 66.0 | 75.4 | 67.6 | 77 | 66.04 x 5.34 |
| PBK 146 | 67.0 | 71.5 | 67.5 | 72 | 66.34 x 2.62 |
| PBK 231-841 | 67.0 | 73.2 | 66.8 | 73 | 66.27 x 3.53 |
| PBK 147 | 68.0 | 72.5 | 68.5 | 73 | 67.95 x 2.62 |
| PBK 842 | 68.0 | 74.2 | 68.8 | 75 | 68.26 x 3.53 |
| PBK 335 | 69.0 | 78.4 | 70.6 | 80 | 69.22 x 5.34 |
| PBK 148 | 70.0 | 74.5 | 70.5 | 75 | 69.52 x 2.62 |
| PBK 232-843 | 70.0 | 76.2 | 70.8 | 77 | 69.44 x 3.53 |
| PBK 149 | 71.0 | 75.5 | 71.5 | 76 | 71.12 x 2.62 |
| PBK 844 | 72.0 | 78.2 | 71.8 | 78 | 71.44 x 3.53 |
| PBK 150 | 73.0 | 77.5 | 73.5 | 78 | 72.69 x 2.62 |
| PBK 233-845 | 73.0 | 79.2 | 73.8 | 80 | 72.62 x 3.53 |
| PBK 336 | 73.0 | 82.4 | 73.6 | 83 | 72.39 x 5.34 |
| PBK 846 | 75.0 | 81.2 | 74.8 | 81 | 74.60 x 3.53 |
| PBK 619 | 75.0 | 84.4 | 75.6 | 85 | 74.63 x 5.34 |
| PBK 234 | 76.0 | 82.2 | 76.8 | 83 | 75.79 x 3.53 |
| PBK 337 | 76.0 | 85.4 | 76.6 | 86 | 75.57 x 5.34 |
| PBK 235 | 79.0 | 85.2 | 79.8 | 86 | 78.97 x 3.53 |
| PBK 338-620 | 79.0 | 88.4 | 80.6 | 90 | 78.74 x 5.34 |
| PBK 152 | 82.0 | 86.5 | 83.5 | 88 | 82.22 x 2.62 |
| PBK 236 | 82.0 | 88.2 | 82.8 | 89 | 82.14 x 3.53 |
| PBK 339 | 82.0 | 91.4 | 82.6 | 92 | 81.92 x 5.34 |
| PBK 237 | 85.0 | 91.2 | 85.8 | 92 | 85.32 x 3.53 |
| PBK 340 | 85.0 | 94.4 | 85.6 | 95 | 85.09 x 5.34 |
| PBK 341 | 88.0 | 97.4 | 88.6 | 98 | 88.27 x 5.34 |
| PBK 153 | 89.0 | 93.5 | 89.5 | 94 | 88.57 x 2.62 |
| PBK 238 | 89.0 | 95.2 | 88.8 | 95 | 88.49 x 3.53 |
| PBK 621 | 90.0 | 99.4 | 90.6 | 100 | 89.69 x 5.34 |
| PBK 239 | 92.0 | 98.2 | 92.8 | 99 | 91.67 x 3.53 |
| PBK 342 | 92.0 | 101.4 | 92.6 | 102 | 91.44 x 5.34 |
| PBK 154 | 95.0 | 99.5 | 96.5 | 101 | 94.92 x 2.62 |
| PBK 240 | 95.0 | 101.2 | 95.8 | 102 | 94.84 x 3.53 |
| PBK 343 | 95.0 | 104.4 | 65.6 | 105 | 94.62 x 5.34 |
| PBK 241 | 98.0 | 104.2 | 98.8 | 105 | 98.02 x 3.53 |
| PBK 344 | 98.0 | 107.4 | 98.6 | 108 | 97.79 x 5.34 |
| PBK 622 | 100.0 | 109.4 | 100.6 | 110 | 100.00 x 5.34 |
| PBK 242 | 101.0 | 107.2 | 101.8 | 108 | 101.19 x 3.53 |
| PBK 345 | 101.0 | 110.4 | 101.6 | 111 | 100.97 x 5.34 |
| PBK 346 | 104.0 | 113.4 | 105.6 | 115 | 104.14 x 5.34 |
| PBK 243 | 105.0 | 111.2 | 104.8 | 111 | 104.37 x 3.53 |
| PBK 347 | 107.0 | 116.5 | 108.6 | 118 | 107.32 x 5.34 |
| PBK 244 | 108.0 | 114.2 | 107.8 | 114 | 107.54 x 3.53 |
| PBK 348-623 | 110.0 | 119.4 | 111.6 | 121 | 110.49 x 5.34 |
| PBK 245 | 111.0 | 117.2 | 111.8 | 118 | 110.72 x 3.53 |
| PBK 157 | 114.0 | 118.5 | 115.5 | 120 | 113.97 x 2.62 |
| PBK 246 | 114.0 | 120.2 | 114.8 | 121 | 113.89 x 3.53 |
| PBK 349 | 114.0 | 123.4 | 115.6 | 125 | 113.67 x 5.34 |
| PBK 425 | 114.0 | 126.2 | 114.8 | 127 | 113.67 x 7.00 |
| PBK 247 | 117.0 | 123.2 | 117.8 | 124 | 117.07 x 3.53 |
| PBK 350-860 | 117.0 | 126.4 | 118.6 | 128 | 116.84 x 5.34 |
| PBK 426 | 117.0 | 129.2 | 117.8 | 130 | 116.84 x 7.00 |
| PBK 248 | 120.0 | 126.2 | 120.8 | 127 | 120.24 x 3.53 |
| PBK 351-861 | 121.0 | 130.4 | 122.6 | 132 | 120.02 x 5.34 |
| PBK 249 | 123.0 | 129.2 | 123.8 | 130 | 123.42 x 3.53 |
| PBK 428 | 123.0 | 135.2 | 124.8 | 137 | 123.20 x 7.00 |
| PBK 862 | 124.0 | 133.4 | 125.6 | 135 | 123.80 x 5.34 |
| PBK 429 | 126.0 | 138.2 | 127.8 | 140 | 126.37 x 7.00 |
| PBK 250 | 127.0 | 133.2 | 126.8 | 133 | 126.59 x 3.53 |
| PBK 353-863 | 127.0 | 136.4 | 127.6 | 137 | 126.37 x 5.34 |
| PBK 251 | 130.0 | 136.2 | 129.8 | 136 | 129.77 x 3.53 |
| PBK 354-864 | 130.0 | 139.4 | 130.6 | 140 | 129.54 x 5.34 |
| PBK 252 | 133.0 | 139.2 | 133.8 | 140 | 132.94 x 3.53 |
| PBK 431 | 133.0 | 145.2 | 133.8 | 146 | 132.72 x 7.00 |
| PBK 865 | 134.0 | 143.4 | 135.6 | 145 | 133.35 x 5.34 |
| PBK 253 | 136.0 | 142.2 | 136.8 | 143 | 136.12 x 3.53 |
| PBK 432-433 | 136.0 | 148.2 | 140.8 | 153 | 135.89 x 7.00 |
| PBK 356-866 | 137.0 | 146.4 | 137.6 | 147 | 135.89 x 5.34 |
| PBK 254 | 140.0 | 146.2 | 139.8 | 146 | 139.29 x 3.53 |
| PBK 357-867 | 140.0 | 149.4 | 140.6 | 150 | 139.07 x 5.34 |
| PBK 255 | 143.0 | 149.2 | 142.8 | 149 | 142.47 x 3.53 |
| PBK 358-868 | 143.0 | 152.4 | 143.6 | 153 | 142.24 x 5.34 |
| PBK 435 | 145.0 | 157.2 | 147.8 | 160 | 145.42 x 7.00 |
| PBK 257 | 149.0 | 155.2 | 148.8 | 155 | 148.82 x 3.53 |
| PBK 360-870 | 150.0 | 159.4 | 150.6 | 160 | 148.59 x 5.34 |
| PBK 258 | 152.0 | 158.2 | 152.8 | 159 | 151.99 x 3.53 |
| PBK 872 | 156.0 | 168.2 | 157.8 | 170 | 155.60 x 7.00 |
| PBK 362 | 158.0 | 167.4 | 159.6 | 169 | 158.12 x 5.34 |
| PBK 363 | 165.0 | 174.4 | 165.6 | 175 | 164.47 x 5.34 |
| PBK 628 | 167.0 | 179.2 | 167.8 | 180 | 166.70 x 7.00 |
| PBK 364 | 171.0 | 180.4 | 172.6 | 182 | 170.82 x 5.34 |
| PBK 365 | 178.0 | 187.4 | 178.6 | 188 | 177.17 x 5.34 |
| PBK 880 | 180.0 | 192.2 | 182.8 | 195 | 181.00 x 7.00 |
| PBK 263 | 184.0 | 190.2 | 183.8 | 190 | 183.74 x 3.53 |
| PBK 442 | 184.0 | 196.2 | 184.8 | 197 | 183.52 x 7.00 |
| PBK 367 | 190.0 | 199.4 | 190.6 | 200 | 189.87 x 5.34 |
| PBK 443 | 190.0 | 202.2 | 190.8 | 203 | 189.87 x 7.00 |
| PBK 884 | 194.0 | 206.2 | 194.8 | 207 | 193.70 x 7.00 |
| PBK 368 | 196.0 | 205.4 | 197.6 | 207 | 196.22 x 5.34 |
| PBK 444 | 196.0 | 208.2 | 197.8 | 210 | 196.22 x 7.00 |
| PBK 266 | 203.0 | 209.2 | 203.8 | 210 | 202.57 x 3.53 |
| PBK 370 | 209.0 | 218.4 | 210.6 | 220 | 208.92 x 5.34 |
| PBK 446 | 215.0 | 227.2 | 217.8 | 230 | 215.27 x 7.00 |
| PBK 269 | 222.0 | 228.2 | 221.8 | 228 | 221.84 x 3.53 |
| PBK 372 | 222.0 | 231.4 | 222.6 | 232 | 221.62 x 5.34 |
| PBK 373 | 228.0 | 237.4 | 229.6 | 239 | 227.97 x 5.34 |
| PBK 447 | 230.0 | 242.2 | 229.8 | 242 | 227.97 x 7.00 |
| PBK 678 | 235.0 | 247.2 | 237.8 | 250 | 234.32 x 7.00 |
| PBK 684 | 273.0 | 285.2 | 273.8 | 286 | 272.40 x 7.00 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
Оплата и доставка
Способы доставки
- Новая Почта
- Самовывоз
- Интайм
- Гюнсел
Способы оплаты
- Безналичный расчёт
- Предоплата
