Опорное кольцо, MBK - MBK
Код товара: 678882888
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Модель
Опорное кольцо
Рабочее давление
до 500 бар
Температура min.
-50 °C
Температура макс.
130 °C
Монтаж
в закрытых монтажных пространствах
Рабочие среды
Минеральное масло
Масло-водяные эмульсии, водомасляные эмульсии
Материал
PBTB (полиэфир, твердость по Шору 55 D)
Описание
простой монтаж.
кольца не нужно разрезать
выгодное решение.

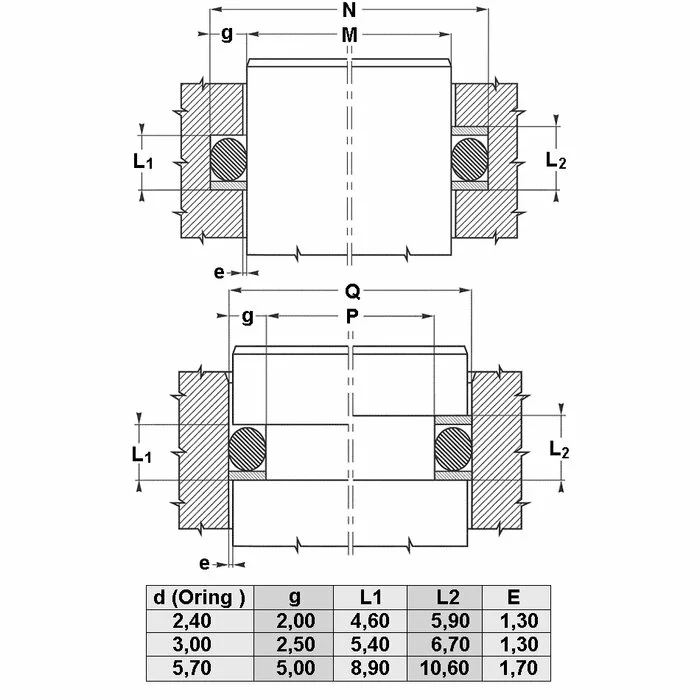

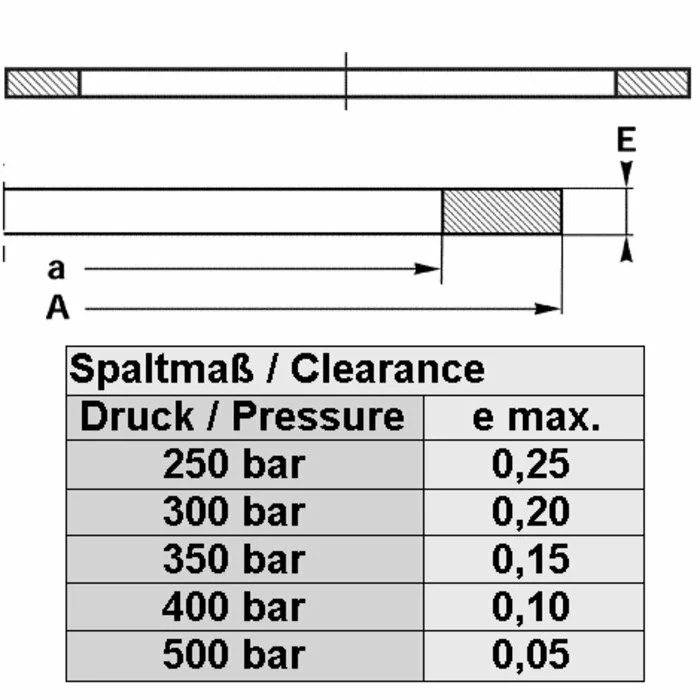

Изделие
| Наименование | M mm |
N mm |
e mm |
Кольцо круглого сечения | Рабочие среды |
|---|---|---|---|---|---|
| MBK 4 8 | 4.0 | 8.0 | 1.3 | 3.30 x 2.40 | - |
| MBK 6 10 | 6.0 | 10.0 | 1.3 | 5.30 x 2.40 | Минеральное маслоМасло-водяные эмульсии, водомасляные эмульсии |
| MBK 7 11 | 7.0 | 11.0 | 1.3 | 6.30 x 2.40 | - |
| MBK 10 14 | 10.0 | 14.0 | 1.3 | 9.30 x 2.30 | - |
| MBK 11 15 | 11.0 | 15.0 | 1.3 | 10.30 x 2.40 | - |
| MBK 12 16 | 12.0 | 16.0 | 1.3 | 11.30 x 2.30 | - |
| MBK 13 17 | 13.0 | 17.0 | 1.3 | 12.30 x 2.40 | - |
| MBK 14 18 | 14.0 | 18.0 | 1.3 | 13.30 x 2.40 | - |
| MBK 15 19 | 15.0 | 19.0 | 1.3 | 14.30 x 2.40 | - |
| MBK 16 20 | 16.0 | 20.0 | 1.3 | 15.30 x 2.40 | - |
| MBK 17 21 | 17.0 | 21.0 | 1.3 | 16.30 x 2.40 | - |
| MBK 18 22 | 18.0 | 22.0 | 1.3 | 17.30 x 2.40 | - |
| MBK 20 25 | 20.0 | 25.0 | 1.3 | 19.20 x 3.00 | - |
| MBK 23 28 | 23.0 | 28.0 | 1.3 | 22.20 x 3.00 | - |
| MBK 25 30 | 25.0 | 30.0 | 1.3 | 24.20 x 3.00 | - |
| MBK 27 32 | 27.0 | 32.0 | 1.3 | 26.20 x 3.00 | - |
| MBK 30 35 | 30.0 | 35.0 | 1.3 | 29.20 x 3.00 | - |
| MBK 35 40 | 35.0 | 40.0 | 1.3 | 34.20 x 3.00 | - |
| MBK 40 45 | 40.0 | 45.0 | 1.3 | 39.20 x 3.00 | - |
| MBK 40 50 | 40.0 | 50.0 | 1.7 | 39.20 x 5.70 | - |
| MBK 45 50 | 45.0 | 50.0 | 1.3 | 44.20 x 3.00 | - |
| MBK 45 55 | 45.0 | 55.0 | 1.7 | 44.20 x 5.70 | - |
| MBK 50 55 | 50.0 | 55.0 | 1.3 | 49.50 x 3.00 | - |
| MBK 50 60 | 50.0 | 60.0 | 1.7 | 49.20 x 5.70 | - |
| MBK 53 63 | 53.0 | 63.0 | 1.7 | 52.20 x 5.70 | - |
| MBK 55 65 | 55.0 | 65.0 | 1.7 | 54.20 x 5.70 | - |
| MBK 55 60 | 55.0 | 60.0 | 1.3 | 54.50 x 3.00 | - |
| MBK 58 63 | 58.0 | 63.0 | 1.3 | 57.20 x 3.00 | - |
| MBK 60 65 | 60.0 | 65.0 | 1.3 | 59.50 x 3.00 | - |
| MBK 60 67 | 60.0 | 67.0 | 1.5 | 39.20 x 5.70 | - |
| MBK 60 70 | 60.0 | 70.0 | 1.7 | 59.20 x 5.70 | - |
| MBK 63 68 | 63.0 | 68.0 | 1.3 | 62.20 x 3.00 | - |
| MBK 65 70 | 65.0 | 70.0 | 1.3 | 64.50 x 3.00 | - |
| MBK 65 75 | 65.0 | 75.0 | 1.7 | 64.20 x 5.70 | - |
| MBK 69 74 | 69.0 | 74.0 | 1.3 | 69.00 x 3.00 | - |
| MBK 70 75 | 70.0 | 75.0 | 1.3 | 69.50 x 3.00 | - |
| MBK 70 77 | 70.0 | 77.0 | 1.5 | 39.20 x 5.70 | - |
| MBK 70 80 | 70.0 | 80.0 | 1.7 | 69.20 x 5.70 | - |
| MBK 72 77 | 72.5 | 77.5 | 1.3 | 72.00 x 3.00 | Минеральное маслоМасло-водяные эмульсии, водомасляные эмульсии |
| MBK 75 80 | 75.0 | 80.0 | 1.3 | 74.50 x 3.00 | - |
| MBK 75 85 | 75.0 | 85.0 | 1.7 | 74.20 x 5.70 | - |
| MBK 78 88 | 78.0 | 88.0 | 1.7 | 87.20 x 5.70 | - |
| MBK 79 84 | 79.0 | 84.0 | 1.3 | 78.00 x 3.00 | - |
| MBK 80 85 | 80.0 | 85.0 | 1.3 | 79.50 x 3.00 | - |
| MBK 80 87 | 80.0 | 87.0 | 1.5 | 39.20 x 5.70 | - |
| MBK 80 90 | 80.0 | 90.0 | 1.7 | 79.20 x 5.70 | - |
| MBK 85 90 | 85.0 | 90.0 | 1.3 | 84.50 x 3.00 | - |
| MBK 85 95 | 85.0 | 95.0 | 1.7 | 84.20 x 5.70 | - |
| MBK 90 95 | 90.0 | 95.0 | 1.3 | 89.50 x 3.00 | - |
| MBK 90 100 | 90.0 | 100.0 | 1.7 | 89.20 x 5.70 | - |
| MBK 92 99 | 92.5 | 99.1 | 1.4 | 92.00 x 4.00 | - |
| MBK 94 99 | 94.0 | 99.0 | 1.3 | 93.00 x 3.00 | Минеральное маслоМасло-водяные эмульсии, водомасляные эмульсии |
| MBK 95 100 | 95.0 | 100.0 | 1.3 | 94.50 x 3.00 | - |
| MBK 95 105 | 95.0 | 105.0 | 1.7 | 94.20 x 5.70 | - |
| MBK 100 105 | 100.0 | 105.0 | 1.3 | 99.50 x 3.00 | - |
| MBK 100 110 | 100.0 | 110.0 | 1.7 | 99.20 x 5.70 | - |
| MBK 105 110 | 105.0 | 110.0 | 1.3 | 104.50 x 3.00 | - |
| MBK 105 115 | 105.0 | 115.0 | 1.7 | 104.20 x 5.70 | - |
| MBK 110 115 | 110.0 | 115.0 | 1.3 | 109.50 x 3.00 | - |
| MBK 110 120 | 110.0 | 120.0 | 1.7 | 109.20 x 5.70 | - |
| MBK 115 120 | 115.0 | 120.0 | 1.3 | 114.50 x 3.00 | - |
| MBK 115 125 | 115.0 | 125.0 | 1.7 | 114.20 x 5.70 | - |
| MBK 120 125 | 120.0 | 125.0 | 1.3 | 119.50 x 3.00 | - |
| MBK 120 130 | 120.0 | 130.0 | 1.7 | 119.20 x 5.70 | - |
| MBK 125 130 | 125.0 | 130.0 | 1.3 | 124.50 x 3.00 | - |
| MBK 125 135 | 125.0 | 135.0 | 1.7 | 124.20 x 5.70 | - |
| MBK 130 135 | 130.0 | 135.0 | 1.3 | 129.50 x 3.00 | - |
| MBK 130 140 | 130.0 | 140.0 | 1.7 | 129.20 x 5.70 | - |
| MBK 135 140 | 135.0 | 140.0 | 1.3 | 134.50 x 3.00 | - |
| MBK 135 145 | 135.0 | 145.0 | 1.7 | 134.20 x 5.70 | - |
| MBK 140 145 | 140.0 | 145.0 | 1.3 | 139.50 x 3.00 | Минеральное маслоМасло-водяные эмульсии, водомасляные эмульсии |
| MBK 140 150 | 140.0 | 150.0 | 1.7 | 139.20 x 5.70 | - |
| MBK 142 151 | 142.0 | 151.0 | 1.8 | - | - |
| MBK 145 150 | 145.0 | 150.0 | 1.3 | 144.50 x 3.00 | - |
| MBK 145 155 | 145.0 | 155.0 | 1.7 | 144.20 x 5.70 | - |
| MBK 150 160 | 150.0 | 160.0 | 1.7 | 149.20 x 5.70 | - |
| MBK 152 161 | 152.0 | 161.0 | 1.8 | - | - |
| MBK 155 165 | 155.0 | 165.0 | 1.7 | 154.20 x 5.70 | - |
| MBK 160 170 | 160.0 | 170.0 | 1.7 | 159.20 x 5.70 | - |
| MBK 165 175 | 165.0 | 175.0 | 1.7 | 164.20 x 5.70 | - |
| MBK 170 180 | 170.0 | 180.0 | 1.7 | 169.20 x 5.70 | - |
| MBK 175 185 | 175.0 | 185.0 | 1.7 | 174.20 x 5.70 | - |
| MBK 180 190 | 180.0 | 190.0 | 1.7 | 179.20 x 5.70 | - |
| MBK 185 195 | 185.0 | 195.0 | 1.7 | 184.20 x 5.70 | - |
| MBK 190 200 | 190.0 | 200.0 | 1.7 | 189.20 x 5.70 | - |
| MBK 195 205 | 195.0 | 205.0 | 1.7 | 194.20 x 5.70 | - |
| MBK 200 210 | 200.0 | 210.0 | 1.7 | 199.20 x 5.70 | - |
| MBK 210 220 | 210.0 | 220.0 | 1.7 | 209.20 x 5.70 | - |
| MBK 220 230 | 220.0 | 230.0 | 1.7 | 219.20 x 5.70 | - |
| MBK 230 240 | 230.0 | 240.0 | 1.7 | 229.20 x 5.70 | - |
| MBK 240 250 | 240.0 | 250.0 | 1.7 | 239.20 x 5.70 | - |
| MBK 250 260 | 250.0 | 260.0 | 1.7 | 249.20 x 5.70 | - |
| MBK 270 280 | 270.0 | 280.0 | 1.7 | 269.20 x 5.70 | - |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
