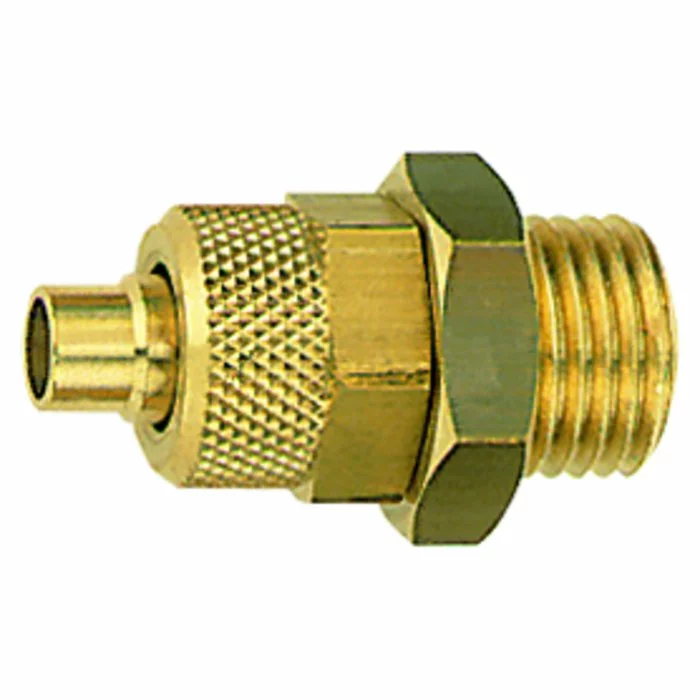

For the installation of plastic tubing.

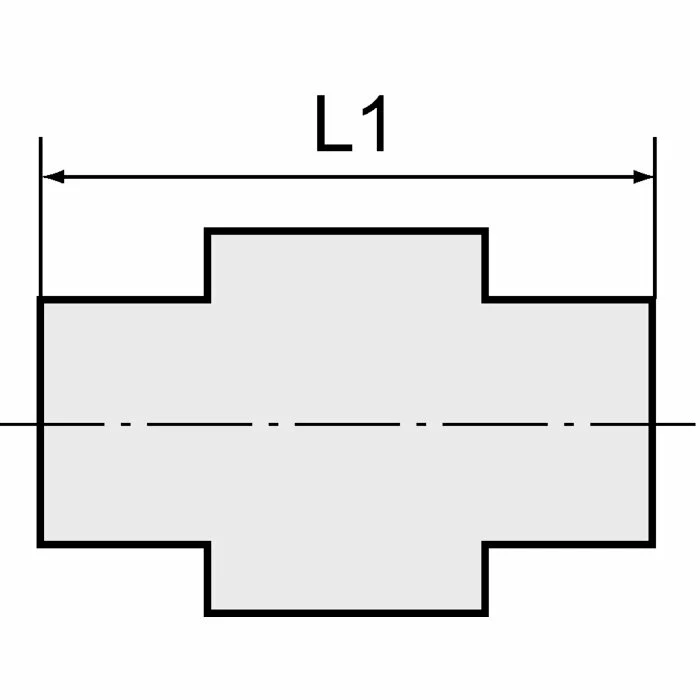

Наименование | Резьба | L1 mm |
SW | Для шланга |
---|---|---|---|---|
K- 07 40 30 56 | M 5 | 20.0 | 7 mm | 5 mm / 3 mm |
K- 07 40 30 57 | G 1/8 | 27.0 | 14 mm | 6 mm / 4 mm |
K- 07 40 30 58 | G 1/8 | 29.0 | 14 mm | 8 mm / 6 mm |
K- 07 40 30 59 | G 1/4 | 29.0 | 17 mm | 6 mm / 4 mm |
K- 07 40 30 60 | G 1/4 | 31.0 | 17 mm | 8 mm / 6 mm |
K- 07 40 30 61 | G 1/4 | 33.0 | 17 mm | 10 mm / 8 mm |
