Модель

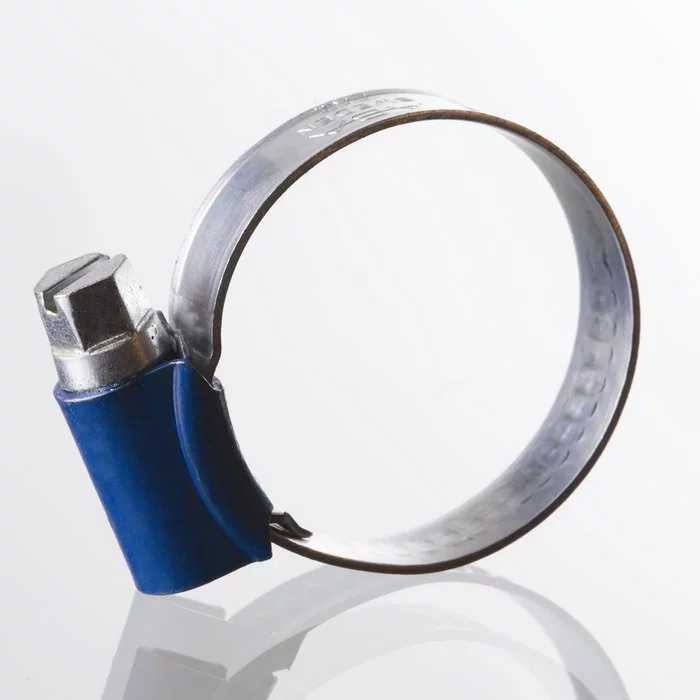

Хомуты с червячной резьбой
Дополнение к модели
Винт с шестигранной головкой и шлицем
_____
DIN 3017
Материал
Сталь
Защита поверхности
Цинкование
Наименование | Диапазон зажима (мм) | Ширина ленты mm |
---|---|---|
ASK 08-12 A | 8 - 12 | 9.0 |
ASK 08-14 A | 8 - 14 | 9.0 |
ASK 10-16 A | 10 - 16 | 9.0 |
ASK 11-17 A | 11 - 17 | 9.0 |
ASK 12-20 A | 12 - 20 | 9.0 |
ASK 13-20 A | 13 - 20 | 9.0 |
ASK 15-24 A | 15 - 24 | 12.0 |
ASK 16-25 A | 16 - 25 | 12.0 |
ASK 19-28 A | 19 - 28 | 12.0 |
ASK 20-32 A | 20 - 32 | 12.0 |
ASK 22-32 A | 22 - 32 | 12.0 |
ASK 25-40 A | 25 - 40 | 12.0 |
ASK 32-44 A | 32 - 44 | 12.0 |
ASK 32-50 A | 32 - 50 | 12.0 |
ASK 38-50 A | 38 - 50 | 12.0 |
ASK 40-60 A | 40 - 60 | 12.0 |
ASK 44-56 A | 44 - 56 | 12.0 |
ASK 50-70 A | 50 - 70 | 12.0 |
ASK 58-75 A | 58 - 75 | 12.0 |
ASK 60-80 A | 60 - 80 | 12.0 |
ASK 68-85 A | 68 - 85 | 12.0 |
ASK 70-90 A | 70 - 90 | 12.0 |
ASK 77-95 A | 77 - 95 | 12.0 |
ASK 80-100 A | 80 - 100 | 12.0 |
ASK 87-112 A | 87 - 112 | 12.0 |
ASK 90-110 A | 90 - 110 | 12.0 |
ASK 100-120 A | 100 - 120 | 12.0 |
ASK 104-138 A | 104 - 138 | 12.0 |
ASK 110-130 A | 110 - 130 | 12.0 |
ASK 120-140 A | 120 - 140 | 12.0 |
ASK 130-150 A | 130 - 150 | 12.0 |
ASK 130-165 A | 130 - 65 | 12.0 |
ASK 140-160 A | 140 - 160 | 12.0 |
ASK 150-170 A | 150 - 170 | 12.0 |
ASK 150-180 A | 150 - 180 | 12.0 |
ASK 160-180 A | 160 - 180 | 12.0 |
ASK 170-190 A | 170 - 190 | 12.0 |
ASK 175-205 A | 175 - 205 | 12.0 |
ASK 180-200 A | 180 - 200 | 12.0 |
ASK 190-210 A | 190 - 210 | 12.0 |
ASK 200-220 A | 200 - 220 | 12.0 |
ASK 200-231 A | 200 - 231 | 12.0 |
ASK 210-230 A | 210 - 230 | 12.0 |
ASK 220-240 A | 220 - 240 | 12.0 |
ASK 226-256 A | 226 - 256 | 12.0 |
ASK 230-250 A | 230 - 250 | 12.0 |
ASK 240-260 A | 240 - 260 | 12.0 |
ASK 250-270 A | 250 - 270 | 12.0 |
ASK 251-282 A | 251 - 282 | 12.0 |
ASK 260-280 A | 260 - 280 | 12.0 |
ASK 270-290 A | 270 - 290 | 12.0 |
ASK 277-307 A | 277 - 307 | 12.0 |
ASK 280-300 A | 280 - 300 | 12.0 |
ASK 290-310 A | 290 - 310 | 12.0 |
