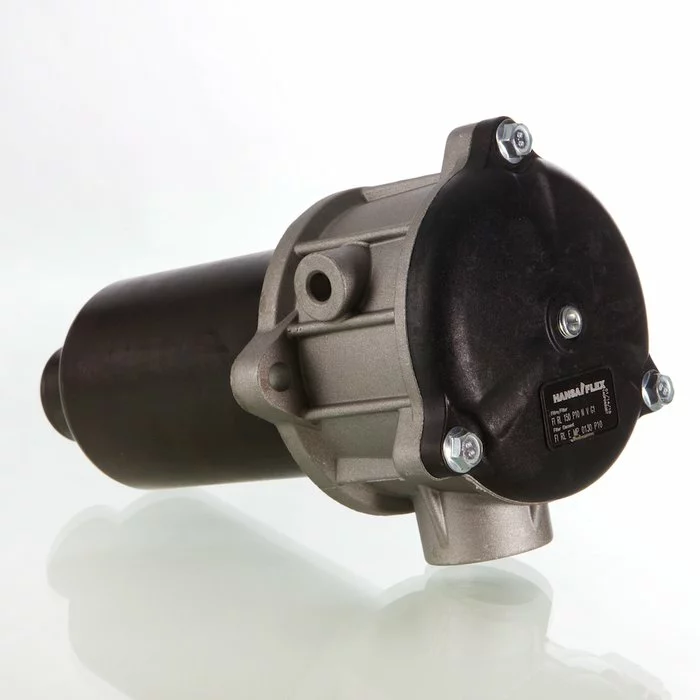

Фильтр обратного потока - FI RL
Код товара: 678844192
Наличие:
Нет в наличии
Цена:
1,00 грн./шт
UAH
Свойства
Исполнение
с перепускным клапаном 1,75 бар, без индикатора загрязнения
Температура min.
-25 °C
Температура макс.
110 °C
Материал
Уплотнение: БНК
Рабочее давление
макс. 8 бар
Комплект поставки
вкл. фильтрующий элемент
Описание

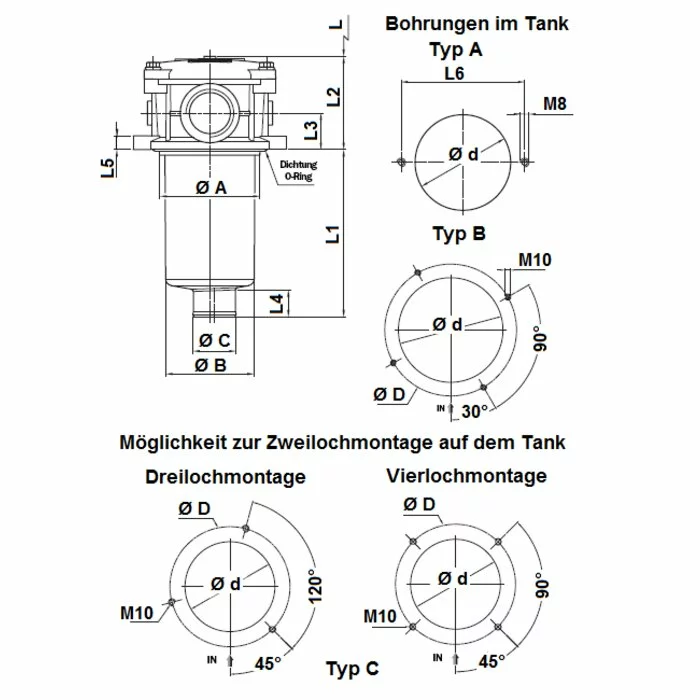

Фильтр обратного потока для монтажа в крышку бака, размеры для
шаблона отверстий см. на графике.
перепад давления для бумажного (P) фильтрующего элемента макс. 3
бар
перепад давления для неорганического (А) фильтрующего элемента
макс. 10 бар
Расчет (Qмакс.) для рабочей среды ISO VG 46 при 50°C (30 мм2/с) при
Δpges= 0,4 бар
Изделие
| Наименование | Ø A mm |
Ø B mm |
Ø C mm |
Ø d mm |
Ø D mm |
Проводное соединение | Q макс. l/min |
L mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L5 mm |
L6 mm |
Тип | Вес kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FI RL 024 A10 N V G1/2 | 66.0 | 60.0 | 32.0 | 67.0 | 90.0 | G 1/2” | 24 | 100.0 | 86.0 | 59.0 | 22.0 | 19.0 | 8.0 | 90.0 | A | 0.36 |
| FI RL 048 P10 N V G1/2 | 66.0 | 60.0 | 32.0 | 67.0 | 90.0 | G 1/2” | 60 | 100.0 | 86.0 | 59.0 | 22.0 | 19.0 | 8.0 | 90.0 | A | 0.40 |
| FI RL 053 A10 N V G1/2 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1/2” | 53 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.74 |
| FI RL 110 P10 N V G1/2 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1/2” | 86 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.61 |
| FI RL 053 A10 N V G3/4 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 3/4” | 53 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.74 |
| FI RL 086 P10 N V G3/4 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 3/4” | 86 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.74 |
| FI RL 053 A10 N V G1 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1" | 53 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.76 |
| FI RL 086 P10 N V G1 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1" | 86 | 120.0 | 100.0 | 82.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.76 |
| FI RL 064 A10 N V G3/4 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 3/4” | 64 | 170.0 | 150.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.76 |
| FI RL 150 P10 N V G3/4 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 3/4” | 110 | 170.0 | 150.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.61 |
| FI RL 064 A10 N V G1 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1" | 64 | 170.0 | 150.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.76 |
| FI RL 150 P10 N V G1 | 88.0 | 80.0 | 38.0 | 89.0 | 115.0 | G 1" | 110 | 170.0 | 150.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.61 |
| FI RL 125 A10 N V G3/4 | 88.0 | 80.0 | 46.5 | 89.0 | 115.0 | G 3/4” | 125 | 250.0 | 225.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.88 |
| FI RL 225 P10 N V G3/4 | 88.0 | 80.0 | 46.5 | 89.0 | 115.0 | G 3/4” | 220 | 250.0 | 225.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.67 |
| FI RL 125 A10 N V G1 | 88.0 | 80.0 | 46.5 | 89.0 | 115.0 | G 1" | 125 | 250.0 | 225.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.88 |
| FI RL 225 P10 N V G1 | 88.0 | 80.0 | 46.5 | 89.0 | 115.0 | G 1" | 220 | 250.0 | 225.0 | 80.0 | 32.0 | 24.0 | 12.0 | 115.0 | A | 0.67 |
| FI RL 230 A10 N V G11/4 | 129.5 | 112.0 | 47.0 | 131.0 | 175.0 | G 1.1/4” | 230 | 250.0 | 233.0 | 91.0 | 35.0 | 31.0 | 13.0 | 175.0 | C | 1.86 |
| FI RL 190 P10 N V G11/4 | 129.5 | 112.0 | 47.0 | 131.0 | 175.0 | G 1.1/4” | 280 | 250.0 | 233.0 | 91.0 | 35.0 | 31.0 | 13.0 | 175.0 | C | 2.20 |
| FI RL 290 A10 N V G11/4 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 1.1/4” | 290 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 280 P10 N V G11/4 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 1.1/4” | 370 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.00 |
| FI RL 290 A10 N V G11/2 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 1.1/2” | 290 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 370 P10 N V G11/2 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 1.1/2” | 370 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 290 A10 N V G2 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 2" | 290 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 370 P10 N V G2 | 173.5 | 150.0 | 51.0 | 174.5 | 220.0 | G 2" | 370 | 200.0 | 180.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 450 A10 N V G11/2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 1.1/2” | 450 | 250.0 | 238.0 | 98.5 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.42 |
| FI RL 320 P10 N V G11/2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 1.1/2” | 610 | 250.0 | 238.0 | 98.5 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.50 |
| FI RL 540 A10 N V G11/2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 1.1/2” | 540 | 310.0 | 290.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.70 |
| FI RL 420 P10 N V G11/2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 1.1/2” | 675 | 310.0 | 290.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.70 |
| FI RL 540 A10 N V G2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 2" | 540 | 310.0 | 290.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.70 |
| FI RL 675 P10 N V G2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 2" | 675 | 310.0 | 290.0 | 97.0 | 38.5 | 38.0 | 12.5 | 220.0 | B | 3.70 |
| FI RL 620 A10 N V SAE2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | 2" SAE 3000 PSI/M | 620 | 450.0 | 430.0 | 105.0 | 48.5 | 38.0 | 12.5 | 220.0 | B | 5.68 |
| FI RL 750 P10 N V SAE2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | 2" SAE 3000 PSI/M | 750 | 450.0 | 430.0 | 105.0 | 48.5 | 38.0 | 12.5 | 220.0 | B | 5.68 |
| FI RL 620 A10 N V G2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 2" | 620 | 450.0 | 430.0 | 105.0 | 48.5 | 38.0 | 12.5 | 220.0 | B | 5.68 |
| FI RL 750 P10 N V G2 | 173.5 | 150.0 | 64.0 | 174.5 | 220.0 | G 2" | 750 | 450.0 | 430.0 | 105.0 | 48.5 | 38.0 | 12.5 | 220.0 | B | 5.68 |
- Дата публикации: 11.03.2021
- Производитель: Hansa-Flex
